Rising, Falling Exponential Pulse
The Rising, Falling Exponential Pulse waveform has the following
characteristics:
H Waveform points: 10,000
H Clock frequency: 100 MHz
H Output parameters: Filter 20 MHz
H Equation: range(0,100ms)<LF>k1=1e–6<LF>k2=10e–6<LF>
exp(–t/k2)–exp(–t/k1)<LF>norm()
Rising Time Constant (k1) is 1 ms
Falling Time Constant (k2) is 10 ms

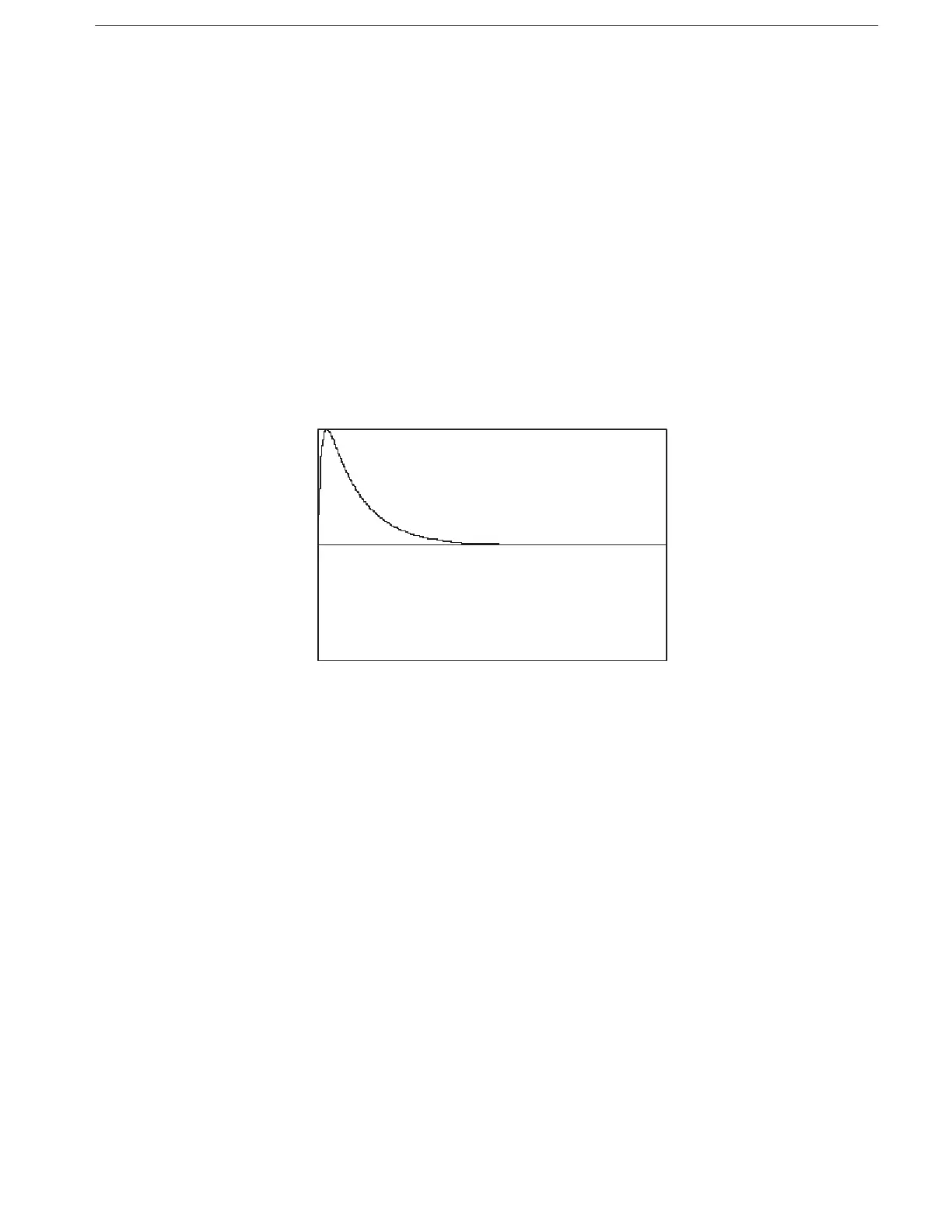

Figure D-9: Rising, Falling Exponential Pulse
