Amplitude Modulated Signal
The Amplitude Modulated signal has the following characteristics:
H Waveform points: 20,000
H Clock frequency: 100 MHz
H Output parameters: Filter 20 MHz
H Equation: range(0,0.2ms)<LF>k0=5e3<LF>k1=5e6<LF>k2=0.5<LF>
(1+k2*cos(2*pi*k0*t))*cos(2*pi*k2*t)
Modulated Signal Frequency (k0) is 5 kHz
Carrier Signal Frequency (k1) is 5 MHz
Modulation Factor (k2) is 50% [0.5]

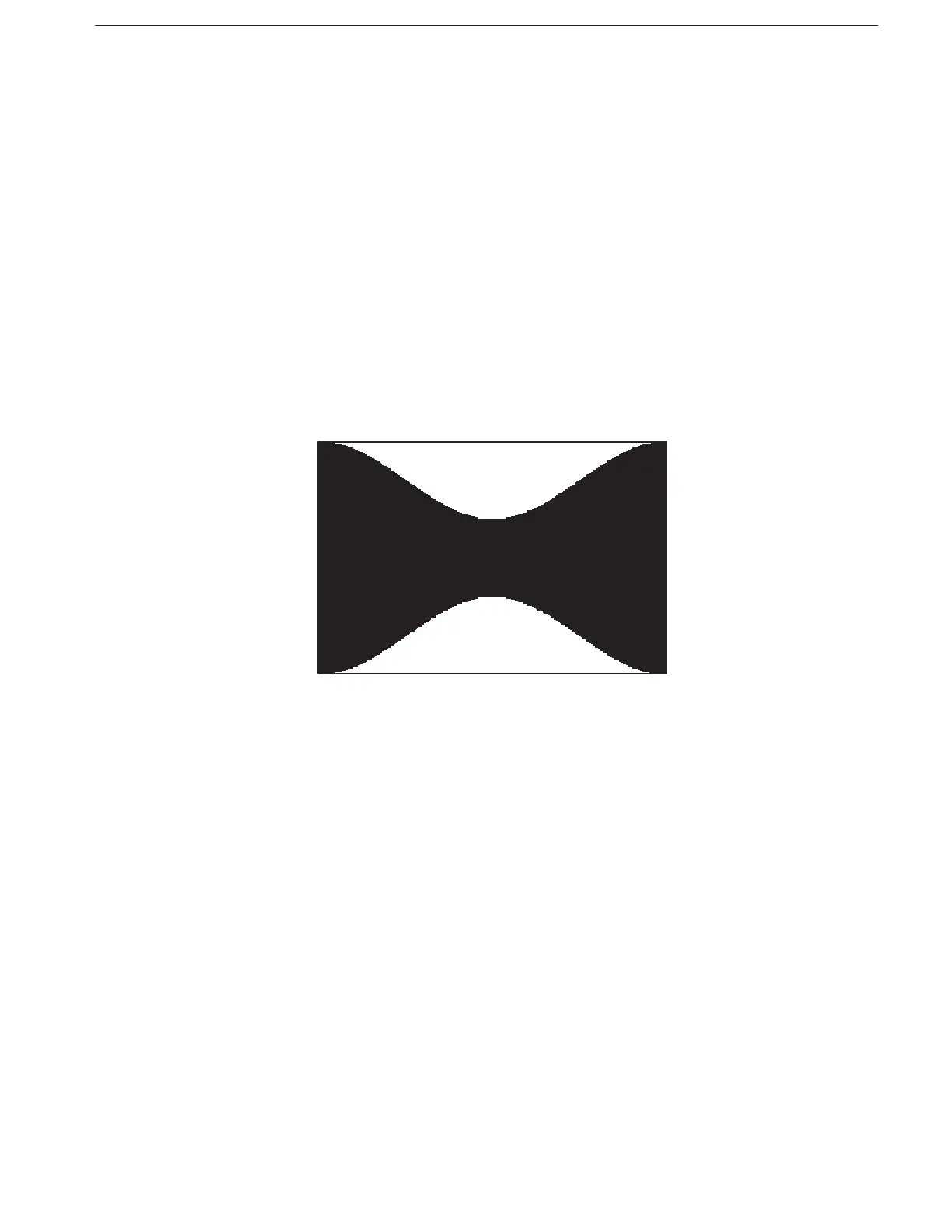

Figure D-13: Amplitude Modulated Signal
