Frequency Modulated Signal
The Frequency Modulated signal has the following characteristics:
H Waveform points: 2000
H Clock frequency: 100 MHz
H Output parameters: Filter 20 MHz
H Equation: range(0,20ms)<LF>k0=50e3<LF>k1=2.5e6<LF>k2=2e6<LF>
sin(2*pi*k1*t+k2/k0*sin(2*pi*k0*t))
Modulated Signal Frequency (k0) is 50 kHz
Carrier Signal Frequency (k1) is 2.5 MHz
Frequency Deviation (k2) is 2 MHz

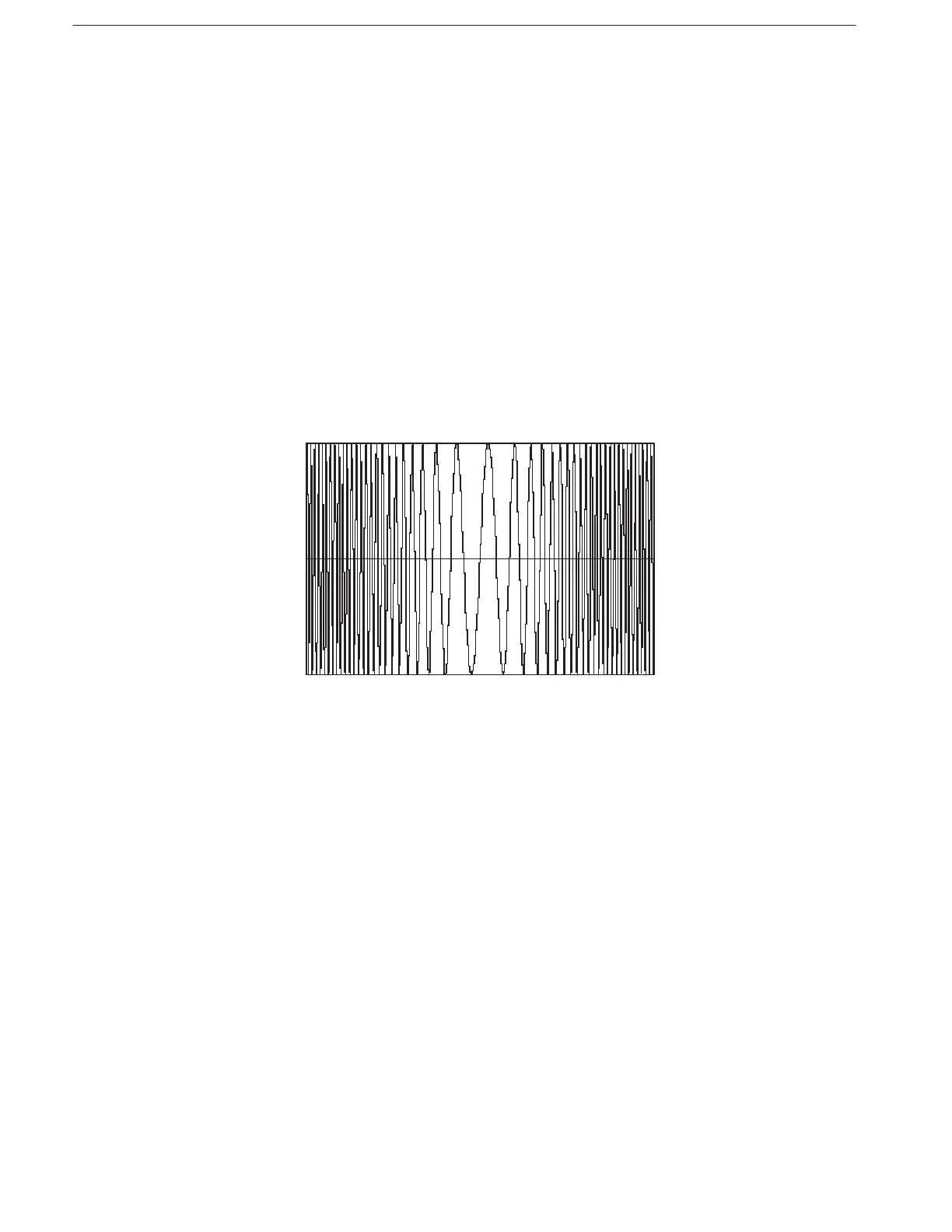

Figure D-14: Frequency Modulated Signal
