Sample Waveform Library
D-20
VX4792 User Manual
Electromagnetic Disk Signal 1
The Electromagnetic Disk Signal 1 waveform has the following characteristics:
H Waveform points: 200
H Clock frequency: 100 MHz
H Output parameters: Filter 50 MHz
H Equation: range(0,0.08ms)<LF>k1=1/3<LF>k2=1/9<LF>
sin(2*pi*x)–sin(3*2*pi*x)+sin(5*2*pi*x)<LF>norm()

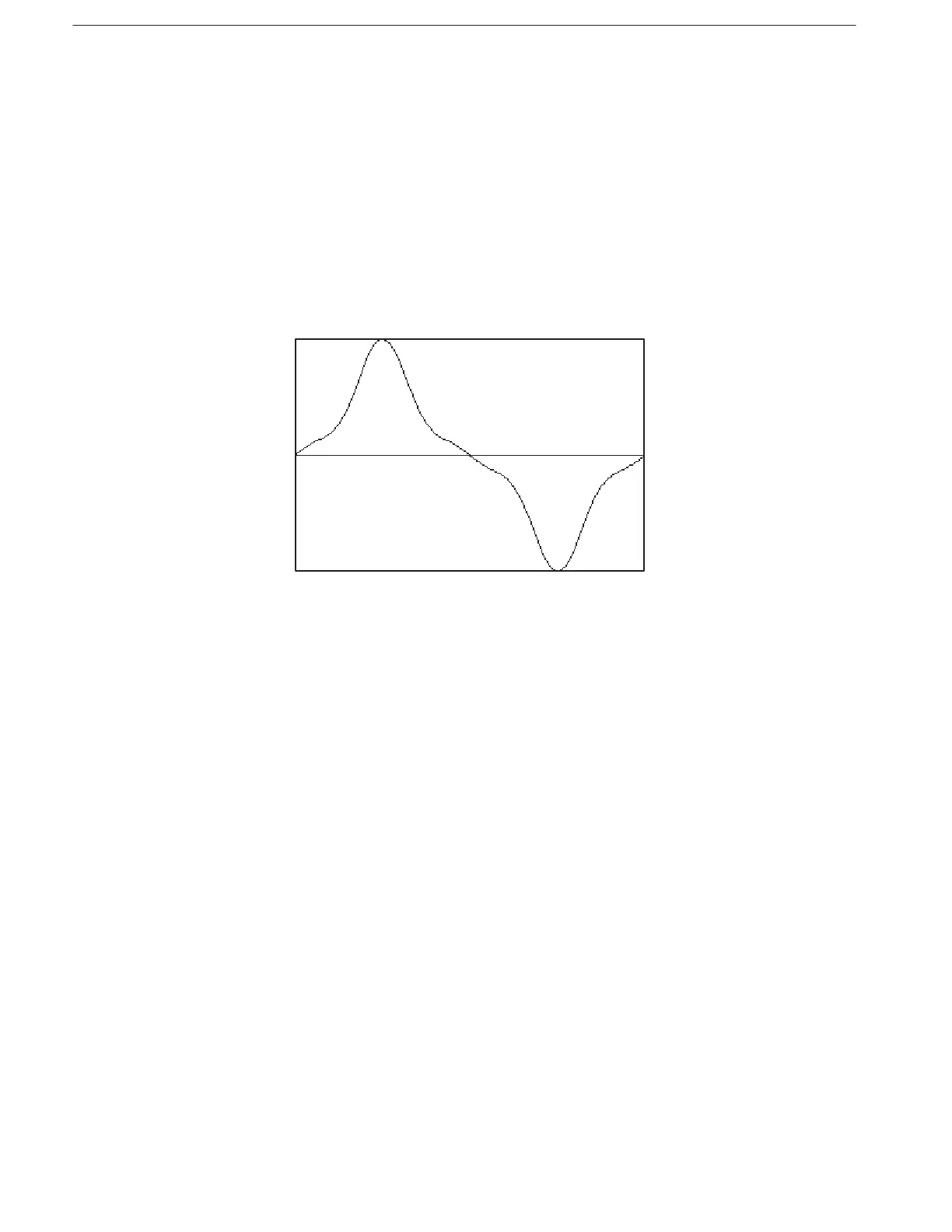

Figure D-20: Electromagnetic Disk Signal 1 Waveform
