Sample Waveform Library
VX4792 User Manual
D-21
Electromagnetic Disk Signal 2
The Electromagnetic Disk Signal 2 waveform has the following characteristics:
H Waveform points: 768
H Clock frequency: 100 MHz
H Output parameters: Filter 50 MHz
H The impulse response waveform is Gaussian waveform (GAUSS_P.PAT)

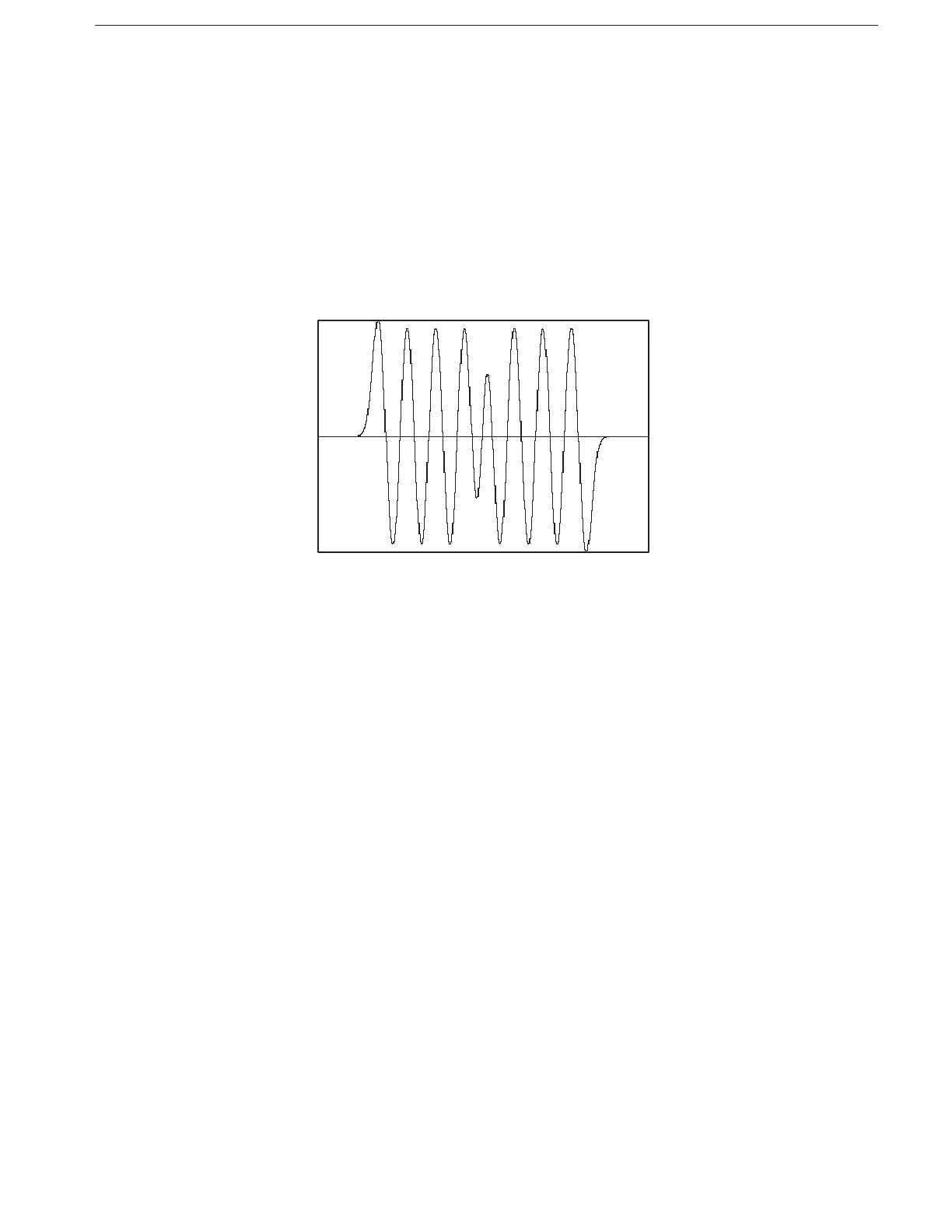

Figure D-21: Electromagnetic Disk Signal 2 Waveform
