Performance Verification
F-40
VX4792 User Manual
VX4792 (6 Modules Shown)
Oscilloscope
WAVEFORM
OUTPUTS
Ch 1 Input
0123456789101112
Ch 2 Input
Ch 3 Input
Ch 4 Input

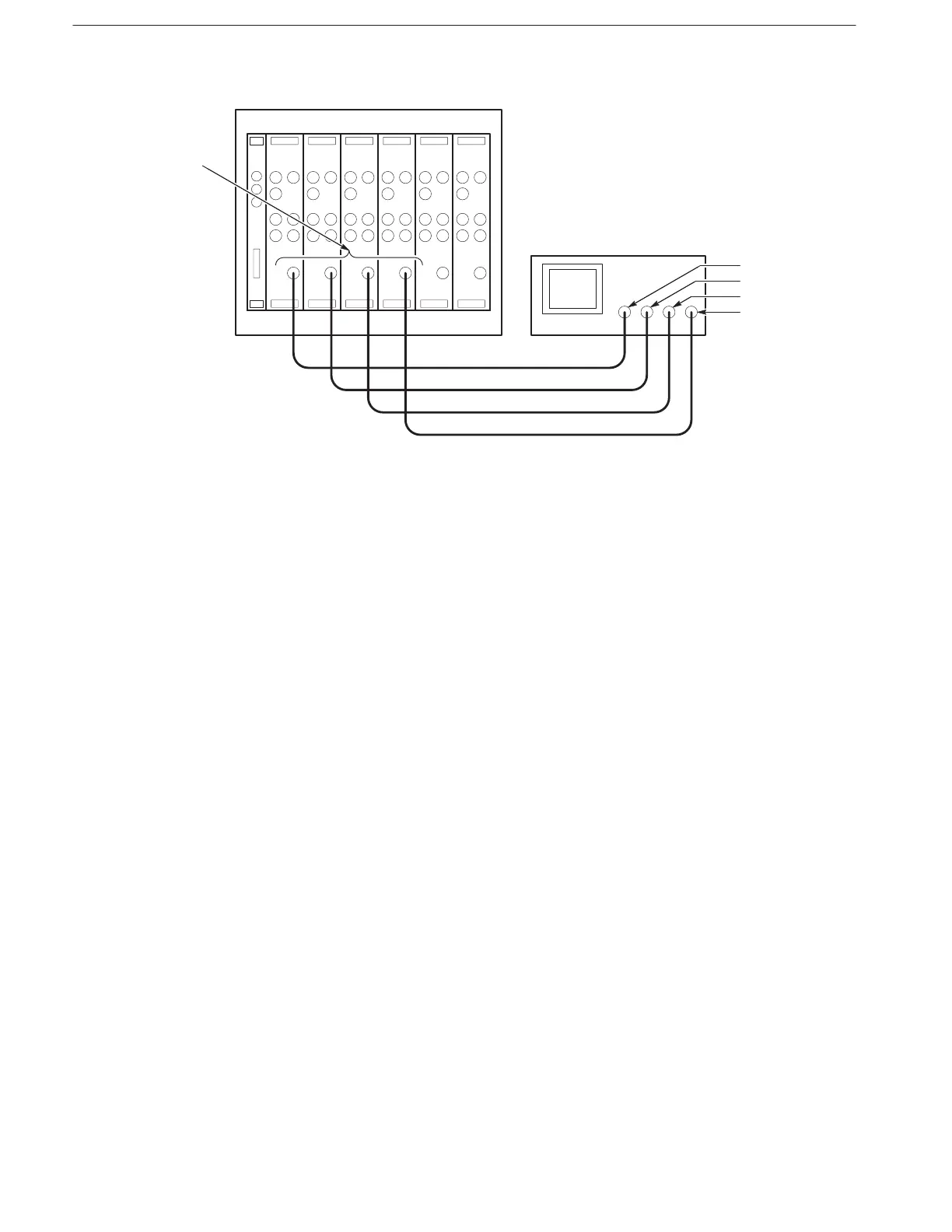

Figure F-19: Synchronous Operation Initial Test Setup
e. Set oscilloscope controls:
Vertical CH1, CH2, CH3, CH4
Coupling (CH1–CH4) DC
Scale (CH1–CH4) 0.2 V/div
Input Impedance (CH1–CH4) 50
Horizontal
Sweep 2 ns/div
Trigger
Source CH1
Coupling DC
Slope Positive
Level 0 V
Mode Auto
3. To set the first and second VX4792 Arbitrary Waveform Generator controls,
and select the waveform file, type:
