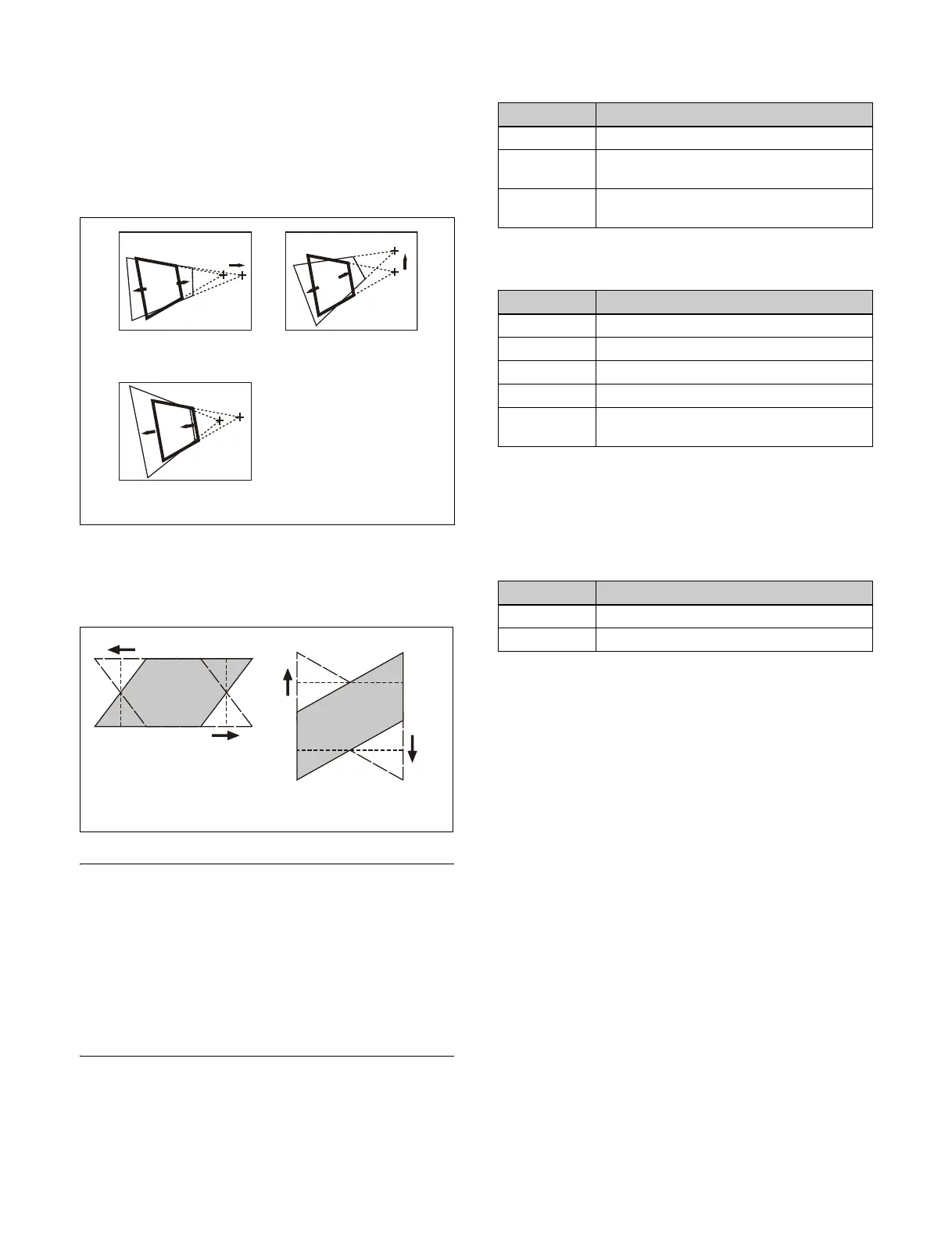

Change viewpoint position (Perspective)
In target space, changes the perspective of an image by
changing the virtual viewpoint, without changing the
position of the image.
The X-axis and Y-axis values define th
e position of the
viewpoint, and the Z-axis value defines the distance from
the viewpoint.
Change image skew (Skew)
In source space, changes the skew of the image in the X-
axis direction or Y-axis direction.
Graphics Display
This function allows you to display wire frames,
coordinate axes, and a grid over a DME image. This is
useful when checking or modifying an image in three-
dimensional space.
For details, see “Graphics Display” (page 204).
DME Effects
The following DME effects can be configured.
Edge effects
Video modifier effects
Freeze effect
Freeze an image.
Nonlinear effects
Other settings
Background
Set the signal to insert into the back
ground of an image.
Invert
Invert an image in the horizontal and vertical directions.
Separate Side
Set whether to insert different signals into the front and
back sides of the im
age.
Removing the Virtual Image
When the perspective of an image is changed, this sets the
p
ortions beyond the virtual viewpoint displayed on the
monitor screen (virtual image) so that they are not
displayed.
Key Density
Set the key density.
Key Source
Set the key source signal used for
the images on the front
and back sides.
Change viewpoint position
in X-axis direction
Change viewpoint
position in Y-axis direction
Change distance from
viewpoint position
Change skew in
X-axis direction
Change skew in
Y-axis direction
Effect Description
Border Add a border to an image.
Crop Crop the top, bottom, left, and right of an
i
mage.
Wipe crop Display an image inside or outside a wipe
pattern.
Effect Description
Defocus Defocus an image.
Sepia Overlay a specified color onto an image.
Mono Convert an image to monochrome.
Mosaic Divide an image into small tiles.
Mask Mask part of an image so that effects are
a
pplied to a selected portion.
Effect Description
Page Turn Turn an image like a turning page.
Roll Roll an image like rolled paper or cloth.
