Control Panel Configuration (ICP-X1000 Series)
The ICP-X1000 series Compact Control Panel supports
the following four types of control panel according to the
number of M/E banks and cross-point buttons.

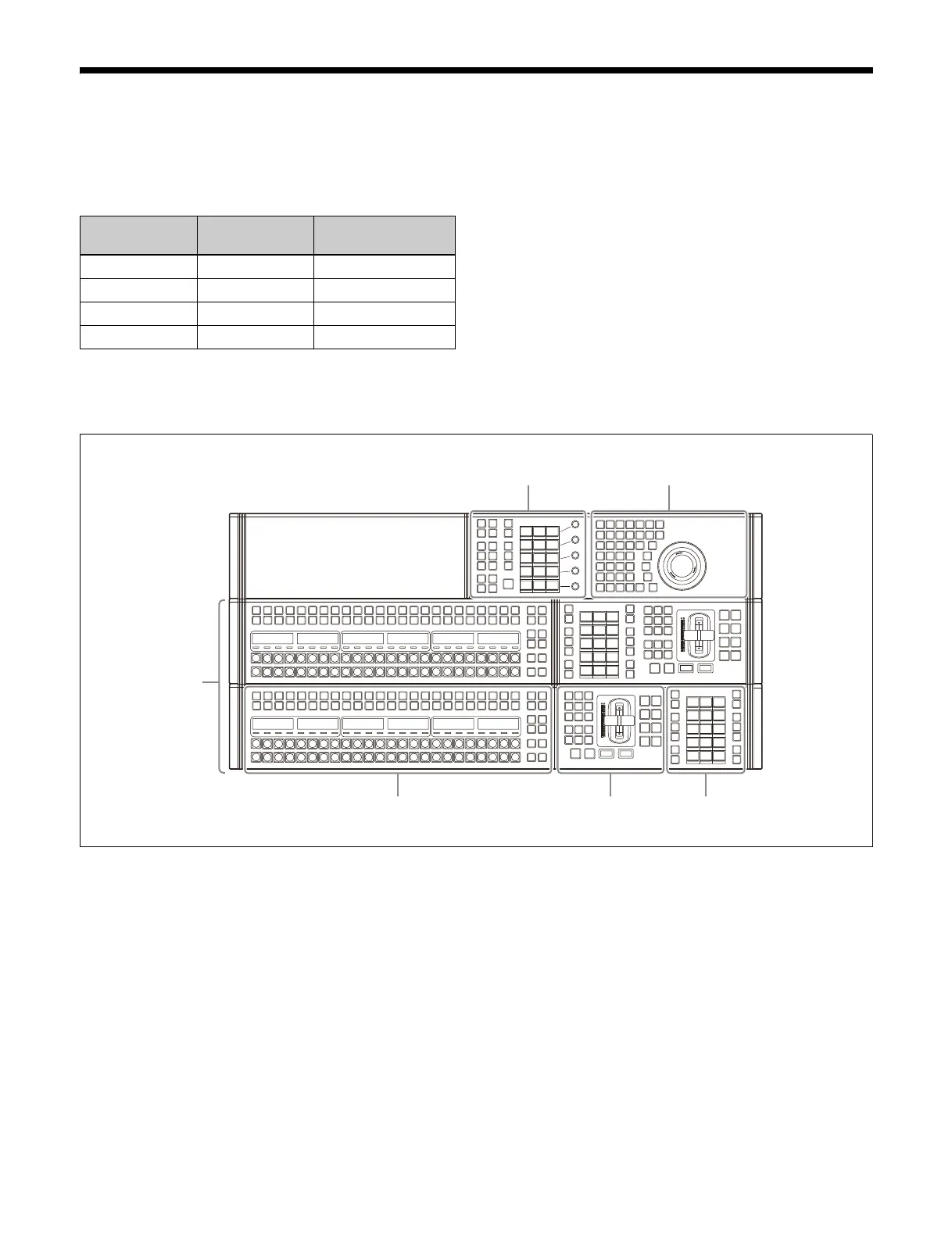

Control panel configuration example
This section describes the ICP-X1224 as an example.
a M/E banks (sw
itcher banks)
Each bank is comprised by a cross-point control block,
transitio
n control block, and Flexi Pad control block. By
default, M/E-1 and P/P switcher banks are assigned in
order to the banks from the back.
The ICP-X1124 and ICP-X1116 have only one M/E bank
row. B
y default, the P/P switcher bank is assigned to the
bank.
You can change the switche
r bank assignments.
For details, see “Assigning a Switcher Bank/AUX”
(page 395).
b Cr
oss-point control block (see page 45)
The ICP-X1216 and ICP-X1116 each have 16 cross-point
bu
ttons.
c Tran
sition control block (see page 48)
d Flexi P
ad control block (see page 50)
e D
evice control block (see page 51)
f Util
ity control block (see page 55)
Control panel Number of M/E
banks
Number of cross-
point buttons
ICP-X1224 2 24
ICP-X1216 2 16
ICP-X1124 1 24
ICP-X1116 1 16
