Device/frame memory/clip player operation
mode
This mode controls operations of devices such as VTRs/
di
sk recorders and operations of frame memory/clip
players.
For details about device operations, see “Control of
VTRs and Disk Recorders” (page 218).
For details about frame memory operations, see “Playing
Video” (page 184).
For details about clip player operations, see “Playing
Video” (page 192).
c Trackb
all
This adjusts the parameters of items selected in resizer
operat
ion mode, three-dimensional transform operation
mode, and menu parameter operation mode.
d Z-ring
This adjusts the parameters of items selected in resizer
operat
ion mode, three-dimensional transform operation
mode, and menu parameter operation mode.
It is used for playback operations in device/frame
memory/c
lip player operation mode.
It can control an effect timeline in run control operation
mode.

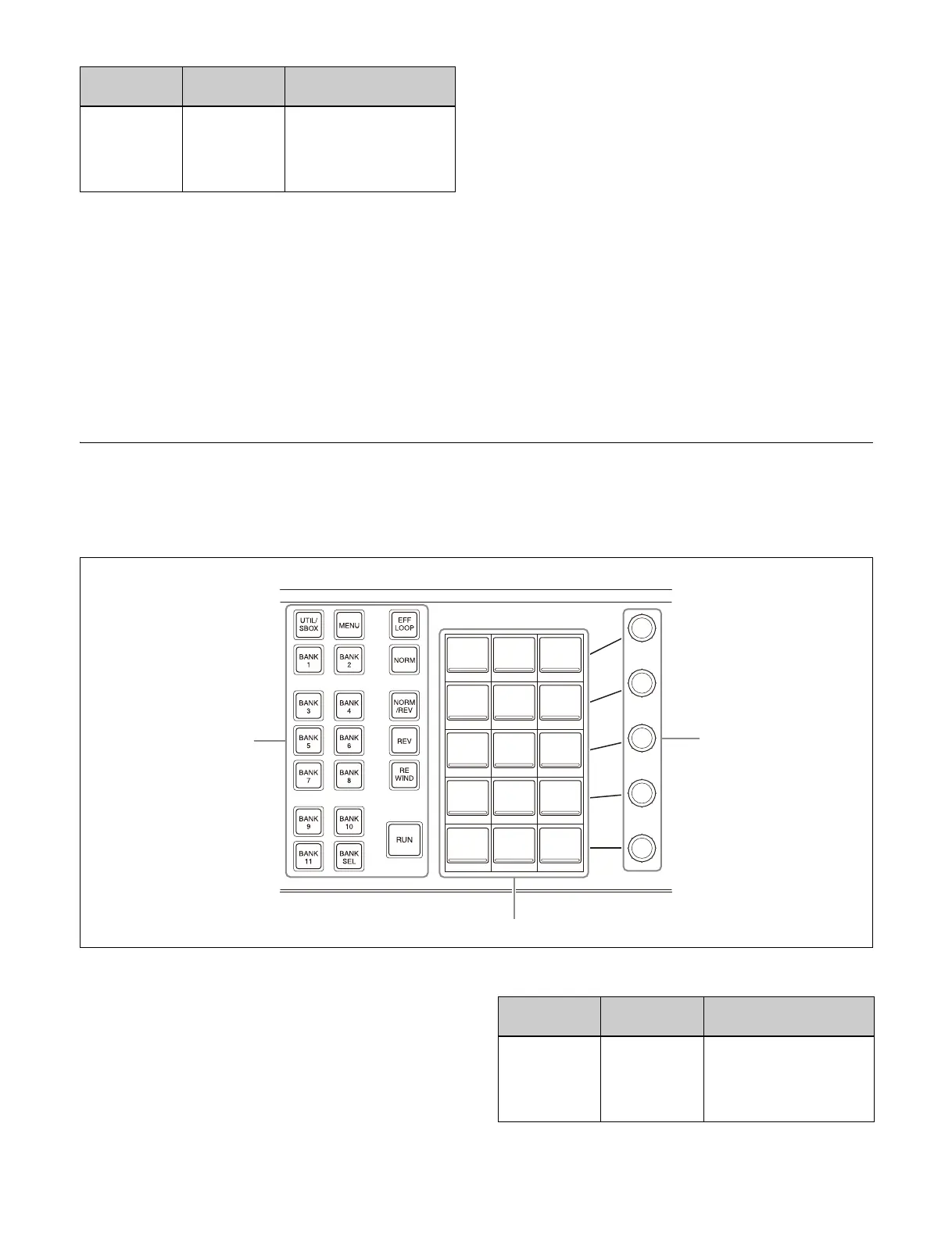

Utility Control Block
The utility control block is used to execute functions
assigned to memory recall buttons, execute effect
timelines, and enter menu parameters.
a Mod
e selection buttons / operation buttons / bank
selection buttons (assignable buttons)
You can assign mode/bank selection buttons and effect
ti
meline operation buttons in the Home > Setup > Panel >
Module > Button Assign menu (19104.21).
For details about assign
ing buttons, see “Assigning
Control Panel Buttons” (page 397).
Mode selection buttons
Fine FINE Switches to fine mode,
enabling fine adjustment
control of setting values
using the trackball and Z-
ring.
Function
name
Button name Description
Function
name
Button name Description
Utility/Shotbox UTIL/SBOX Switches to utility/shotbox
ope
ration mode.
You can execute functions
assig
ned to the memory
recall section.
