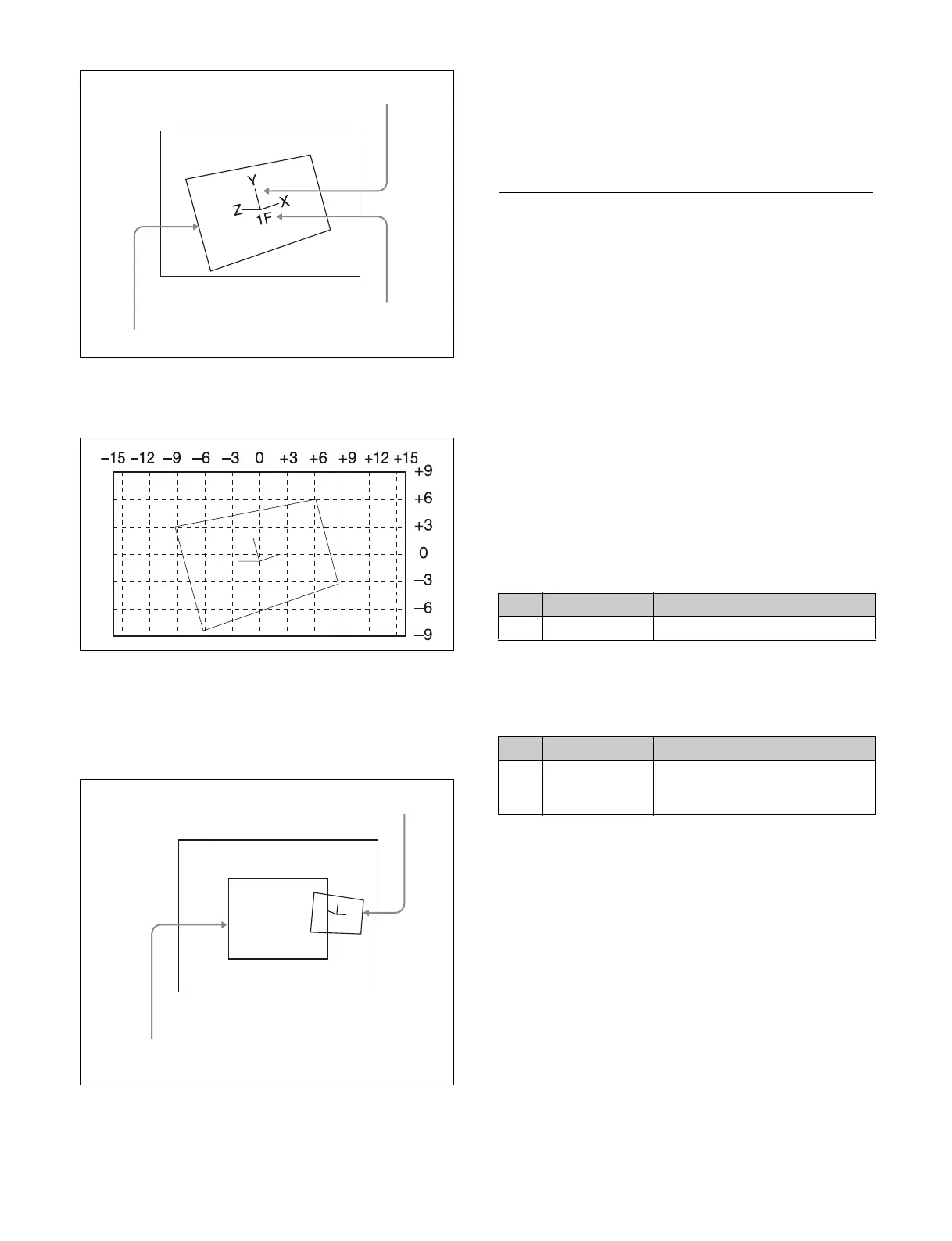

Grid
Displays a grid on the monitor screen. It is enabled when
sett
ing the position of an image in two-dimensional space.
Scale (reduced display)
The size is reduced to display the ra
nge that is not
displayed on the normal monitor screen. This allows you
to check the position of an image in a larger space. The
range displayed on a normal monitor screen is indicated
by a frame.
Automatically erasing the graphics display
This automatically erases the gra
phics display when an
effect timeline is executed. You can set the timing for
when to redisplay graphics after the effect timeline has
completed.
Setting a Graphic
This section describes the menu for DME channel 1 as an
example.
1 Open the Home > DME > Channel1 > Input/Output >
Graphic menu (15101.04).
2 Set the [Graphic] button to the on state.
3 In the [Graphic Type] group, select a type of graphic.
Axis: Coo
rdinate axes
Axis Name: Axis nam
es
Ch ID: Channel
ID
Wire Frame: Wir
e frame
Grid: Gr
id
To reduce the display size of graphics display
Set the [Scale] button to the on sta
te and set the following
parameter.
To automatically erase the graphics display
when an effect timeline is executed
Set the [Auto Erase] button to
the on state and set the
following parameter.
Wire frame
Local space coordinate axes
Channel ID
Wire frame
Range displayed on
normal monitor screen
No. Parameter Adjustment
1 Scale Degree of scale reduction
No. Parameter Adjustment
1 Recover Time Time for redisplaying graphics
after an effect
timeline has
completed
