SoundCraft Ui24R User Manual

Ui24R User Manual

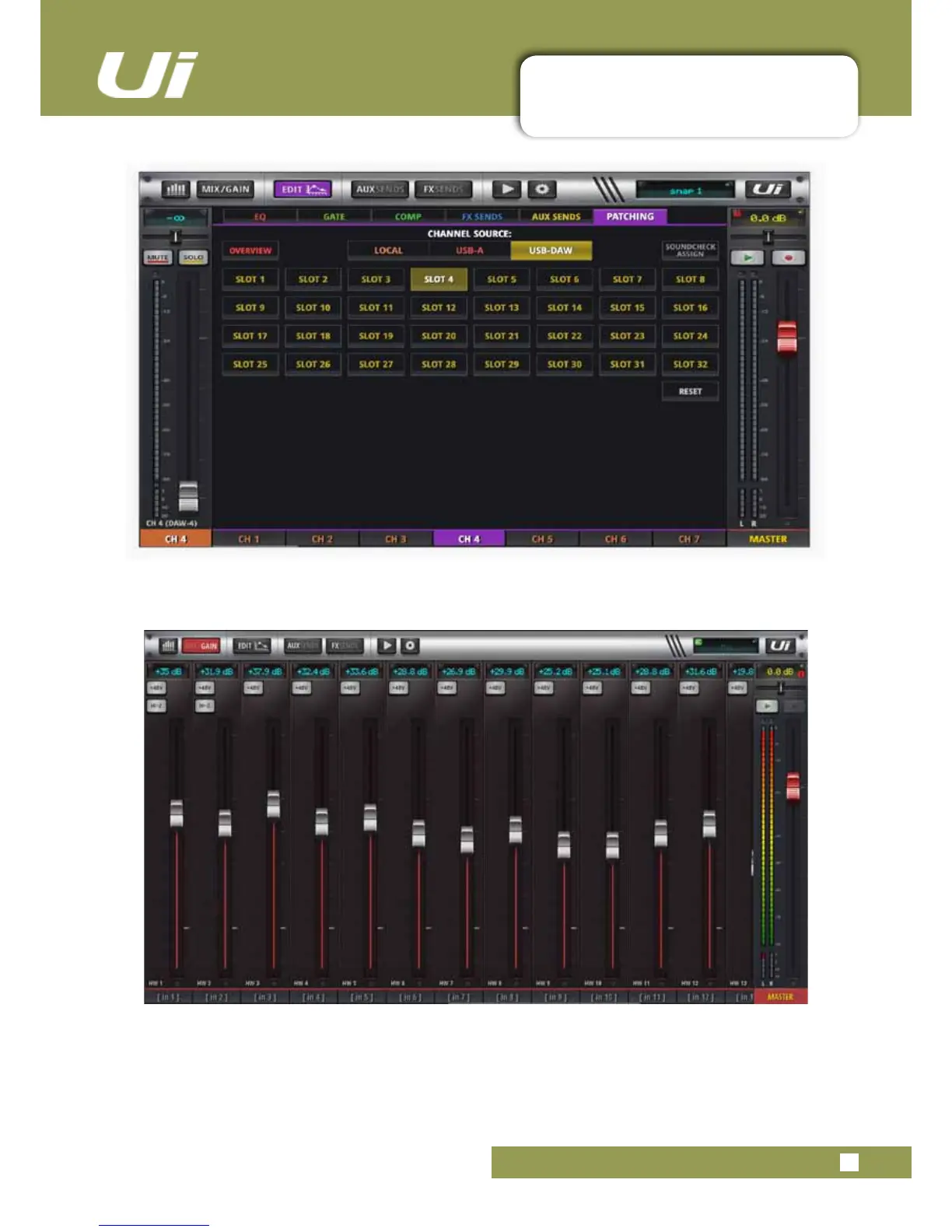

9.0.2: USB PLAYER & RECORDER
PLAYBACK & RECORDING FROM USB-DAW
Patching of USB-DAW can be done within an individual channels Patching Screen
9.0.2: USB PLAYBACK & RECORDING
USING THE USB-DAW PROCESSING AS AN INSERT WITHIN THE Ui24R
This screen allows the user to adjust the input level when they are using their DAW processing as an insert
on an input channel.
SELECTING INPUT CHANNELS ON YOUR DAW
When recording to DAW via USB
Channels 1 - 2 will be Master Left/Right fader
Channels 3 - 10 will be AUX 1-8
Channels 11 - 32 will be Channel 1 onwards

SoundCraft Ui24R Specifications

General

Channels quantity	24 channels
Digital sound processing	- bit
Microphone in	Yes
Master (XLR) out	8
Line inputs (RCA)	1
Headphone connectivity	6.3 mm
Number of microphone inputs	10
Rack capacity	4U
Video capability	-
USB connector type	USB Type-A, USB Type-B
LED indicators	Wi-Fi
Built-in display	No

Weight and Dimensions

Package weight	13600 g
