SoundCraft Ui24R User Manual

2.2: HARDWARE I/O & CONTROL
GETTING STARTED > HARDWARE

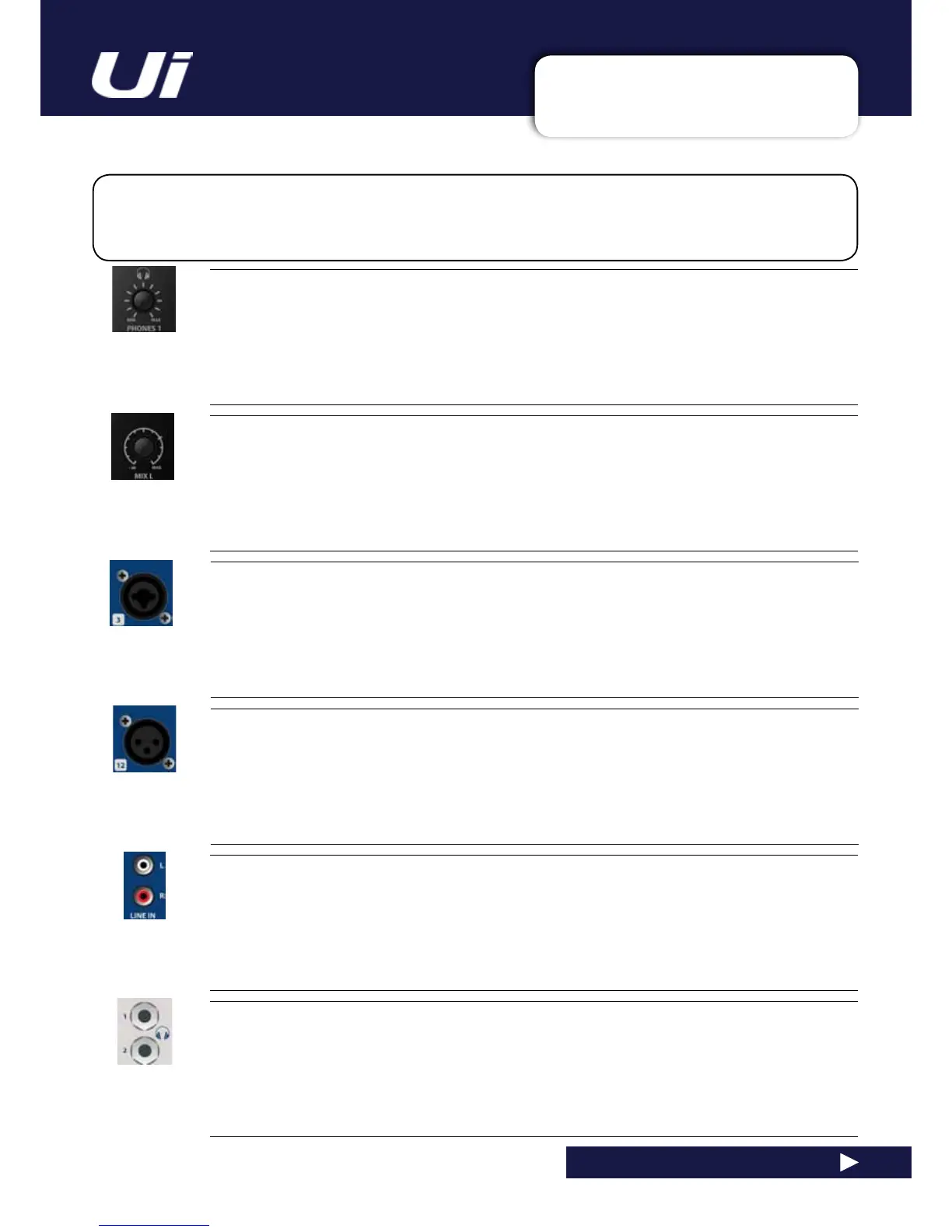

2.2: Hardware I/O And Control
TheUimainunit’sfrontpanelhostsalllocalaudioinputsandoutputsplusthreemasterlevelcontrols.
Ononesidepanelyouwillndthepowerconnectorandpowerswitch;ontheotheryouwillndthe
RESETbutton,FOOTSWITCHconnection,twoUSBports,andtheEthernet(wiredLAN)connection).
COMBO INPUT
Connectionfor1/4”TRS/TSJack(Line)orXLR(Miclevel)
The input number corresponds to channel number in the Ui control software.
XLR Input
Mic XLR Input
The input number corresponds to channel number in the Ui control software.
Ui24R User Manual
PHONES
Set level for headphones outputs
This controls the overall level of headphone output one. Individual headphone volume control can be
achieved through the SETTINGS control page. The headphone source signal defaults to the main stereo
signal but switches to the Solo bus when AFL or PFL is selected.
MIX L / MIX R
Set levels for MIX L and Mix R outputs
TheMixoutputistheUi’smainleft/rightstereooutputandappearsonboththeXLRandJackMixL/Rout-
puts.
LINE IN
Line level RCA inputs
The RCA inputs feed the Line In L and Line In R channels in the UI mixer.
HEADPHONES OUT
Headphone sockets
These are not independent, meaning each output receives the same signal. The headphone outputs receive
the same audio signal as the main outputs unless a channel Solo is active note the volumes can be inde-
pendently controlled in the SETTINGS page as well as the SOLO level.

SoundCraft Ui24R Specifications

General

Channels quantity	24 channels
Digital sound processing	- bit
Microphone in	Yes
Master (XLR) out	8
Line inputs (RCA)	1
Headphone connectivity	6.3 mm
Number of microphone inputs	10
Rack capacity	4U
Video capability	-
USB connector type	USB Type-A, USB Type-B
LED indicators	Wi-Fi
Built-in display	No

Weight and Dimensions

Package weight	13600 g
