SoundCraft Ui24R User Manual

4.6: MASTER CHANNEL
CHANNELS > MASTER CHANNEL
4.6: MASTER CHANNEL
Ui24R User Manual
TheMasterStereoChannelistheoutputchannelforthemainstereo(left&right)mix-determinedbythe
input channel and FX Return channel faders and pan/balance controls. The Master Channel has its own
EDITpagetabs,justlikeotherchannels(seesection5).TheEQforUiOutputchannels(includingAux
Masters)isaGraphicEQ(GEQ)ratherthanaparametricEQ(inputchannelsandsubgroupmasters).
TheMasterFader(redfaderknob)controlstheoveralloutputvolumeofyourmixer.Theactuallevelsetby
thefaderisshowninthetopdisplayabovethefaderindB(decibels).
Display & Indicators
As well as dB, this display also has 3 useful indicators:
CLIP (C)
Notiesyouofanyinputgainclipping.Whenaninputchannelsignal
is too hot and likely to be distorting, press this display to jump to the
DASHBOARD page. In DASHBOARD, press the word GAIN in the
top right corner of the bank that is clipping, then reduce the channel
GAIN fader.
MUTE (M)
This indicates that a channel is muted. Press the display to see the
DASHBOARD overview where all mutes are viewable.
SOLO (S)
This indicates that a channel is in solo mode. Press the display to
see the DASHBOARD overview where all SOLOS are viewable.
BALANCE (Tablet Software)
The horizontal Balance fader allows the volume of left and right
to be increased or decreased, but the mix of left and right is un-
changed. Double press the balance slider to return it to the centre
position. To adjust balance in Phone Software, double tap the
Master Channel name to access its EDIT page.
F1 & F2 Buttons (Tablet Software)
ThepictureshowsF1andF2setasPLAYandRECORD(Ui24R).
F1 and F2 are programmable buttons that can be used for multiple
options. These options are selectable in SETTINGS > CONFIGU-
RATION. The options are: New Snapshot, Update Current Snap-
shot,Play,Record(Ui24RlatestFirmware,Ui24R).
If Record is selected, press record to start recording directly to your
USB stick. The REC button will highlight in red. You must have a
USB stick mounted to make a recording.
DIM
WhenshowntheDIMbuttonwillDIM(reduce)theoutputlevelby
20dB, this is generally used when monitoring in the Studio.

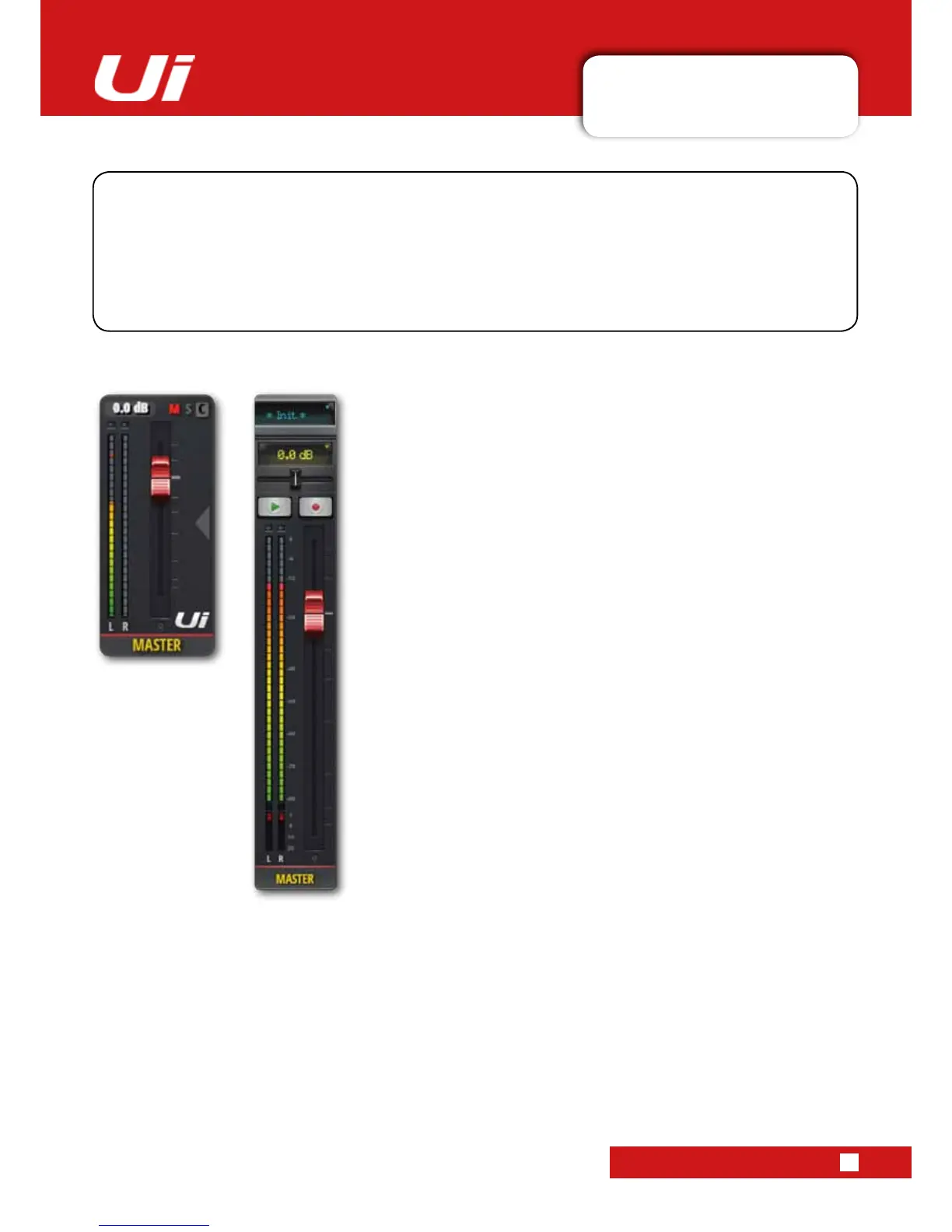

PHONE
TABLET

SoundCraft Ui24R Specifications

General

Channels quantity	24 channels
Digital sound processing	- bit
Microphone in	Yes
Master (XLR) out	8
Line inputs (RCA)	1
Headphone connectivity	6.3 mm
Number of microphone inputs	10
Rack capacity	4U
Video capability	-
USB connector type	USB Type-A, USB Type-B
LED indicators	Wi-Fi
Built-in display	No

Weight and Dimensions

Package weight	13600 g
