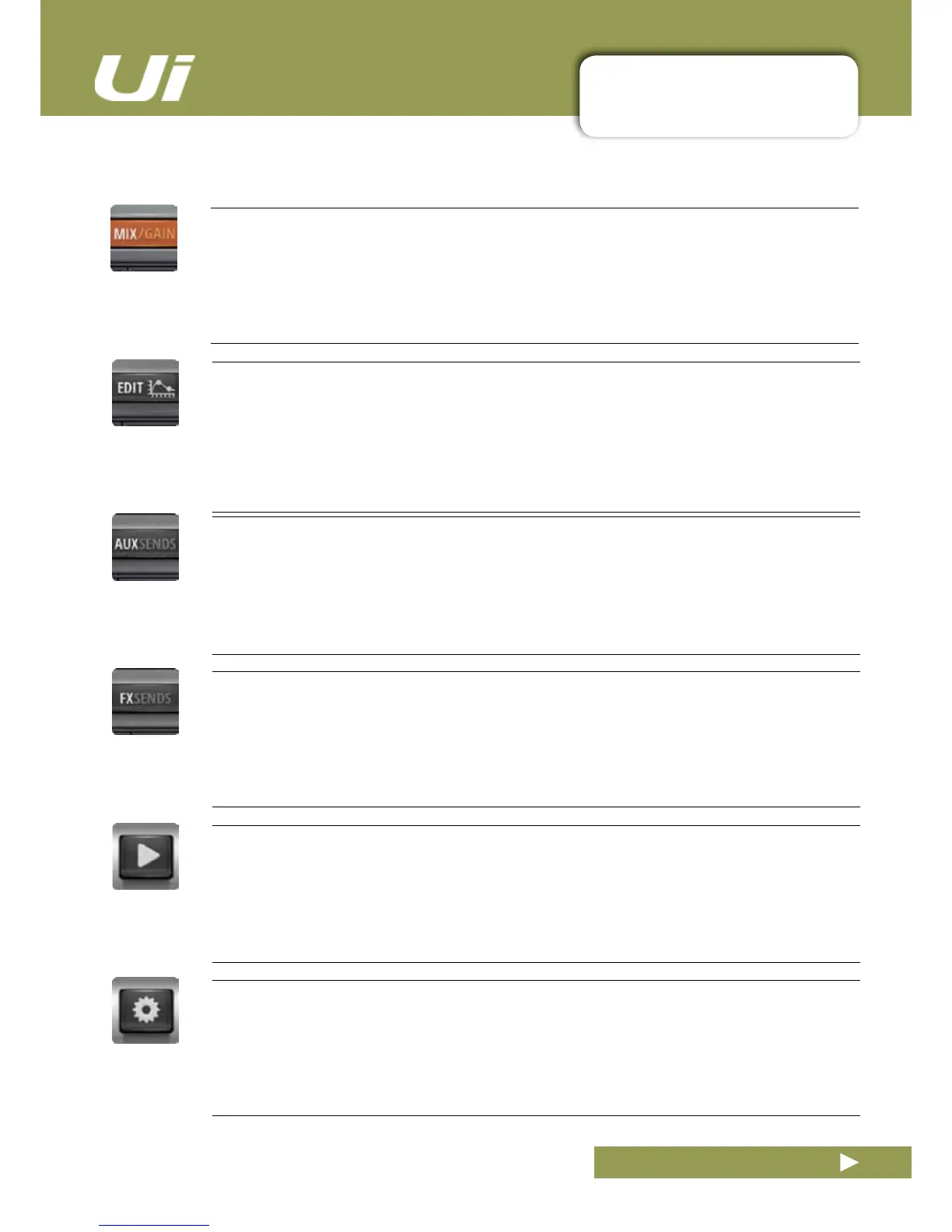

3.2: TABLET NAVIGATION
SOFTWARE > TABLET / LARGE SCREEN NAVIGATION
3.2: TABLET NAVIGATION
Ui24R User Manual
EDIT
Access the EDIT page for the selected channel
Resultingpagecongurationdependsonselectedchannel.Forexample,theEDITpageforaninputchan-
nel will have EQ, Dynamics, Aux Sends, and FX Send tabs. Certain Tabs will be preselected if you navigate
from certain views. For example, selecting EDIT from the FX Sends main page will preselect the FX Sends
tab in for the
highlighted channel.
FX SENDS
Access the FX SENDS page
Shows a fader based view of all FX send levels for the selected FX Send Bus. Also shows FX Return
channel on right hand side. Selecting EDIT from the FX SENDS page will preselect the FX Send tab for the
selected input channel.
SETTINGS
Access the SETTING page
Systemandmixersettingsandcongurations.
AUX SENDS
Access the AUX SENDS page
Shows a fader based view of all aux send levels for the selected aux bus. Also shows the Aux Master chan-
nel on right hand side. Selecting EDIT from the AUX SENDS page will preselect the AUX SENDS tab for the
selected input channel.
MEDIA
Access the MEDIA page
Playback and record controls, plus playlist and track selections. Also shows Playback L and Playback R
channels on left hand side.
MIX / GAIN
Access the MIX and GAIN pages
Whenthebuttonisorange,theMIXpageisshown(channelfaders)andwhenthebuttonisRed,theGAIN
pageisshown(remotegainfadersandinputstagecontrols).

SoundCraft Ui24R Specifications

General

Channels quantity	24 channels
Digital sound processing	- bit
Microphone in	Yes
Master (XLR) out	8
Line inputs (RCA)	1
Headphone connectivity	6.3 mm
Number of microphone inputs	10
Rack capacity	4U
Video capability	-
USB connector type	USB Type-A, USB Type-B
LED indicators	Wi-Fi
Built-in display	No

Weight and Dimensions

Package weight	13600 g
