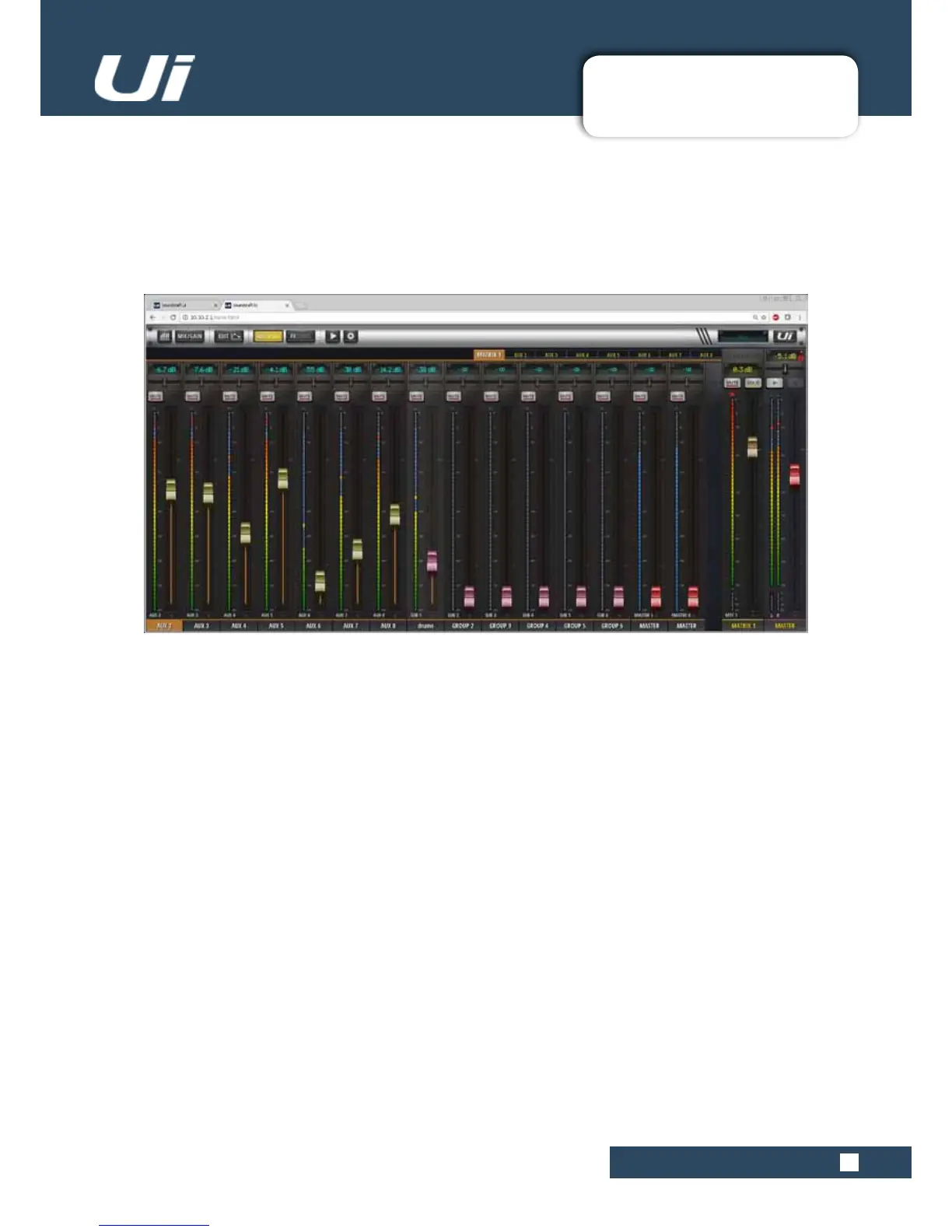

MATRIX CONTRIBUTIONS
Matrix Contributions can come from:
AUX Sends
Sub Groups
MasterL/R(canbePre/Postfader)
NotethatXLRoutputs1/2whichareautomaticallyassignedtoAUX1/2orMatrix1/2haveHPFandLPFlters
which can be used as crossovers.
MATRIX
A Matrix can best be described as a mixer inside the mixer. In its most simple form, a matrix takes a selec-
tionofinputs(usuallyderivedfromthegroupandmainoutputbuses)andallowsroutingofthosesignals,
complete with level control, to a series of outputs.
Matrix systems offer the ability to choose from a variety of inputs including external sources, and offer sig-
nal processing including EQ, compression, noise gate and delay/reverb. Contributions stuff

SoundCraft Ui24R Specifications

General

Channels quantity	24 channels
Digital sound processing	- bit
Microphone in	Yes
Master (XLR) out	8
Line inputs (RCA)	1
Headphone connectivity	6.3 mm
Number of microphone inputs	10
Rack capacity	4U
Video capability	-
USB connector type	USB Type-A, USB Type-B
LED indicators	Wi-Fi
Built-in display	No

Weight and Dimensions

Package weight	13600 g
