SoundCraft Ui24R User Manual

3.4: PHONE SCREENS
SOFTWARE > PHONE SOFTWARE SCREENS

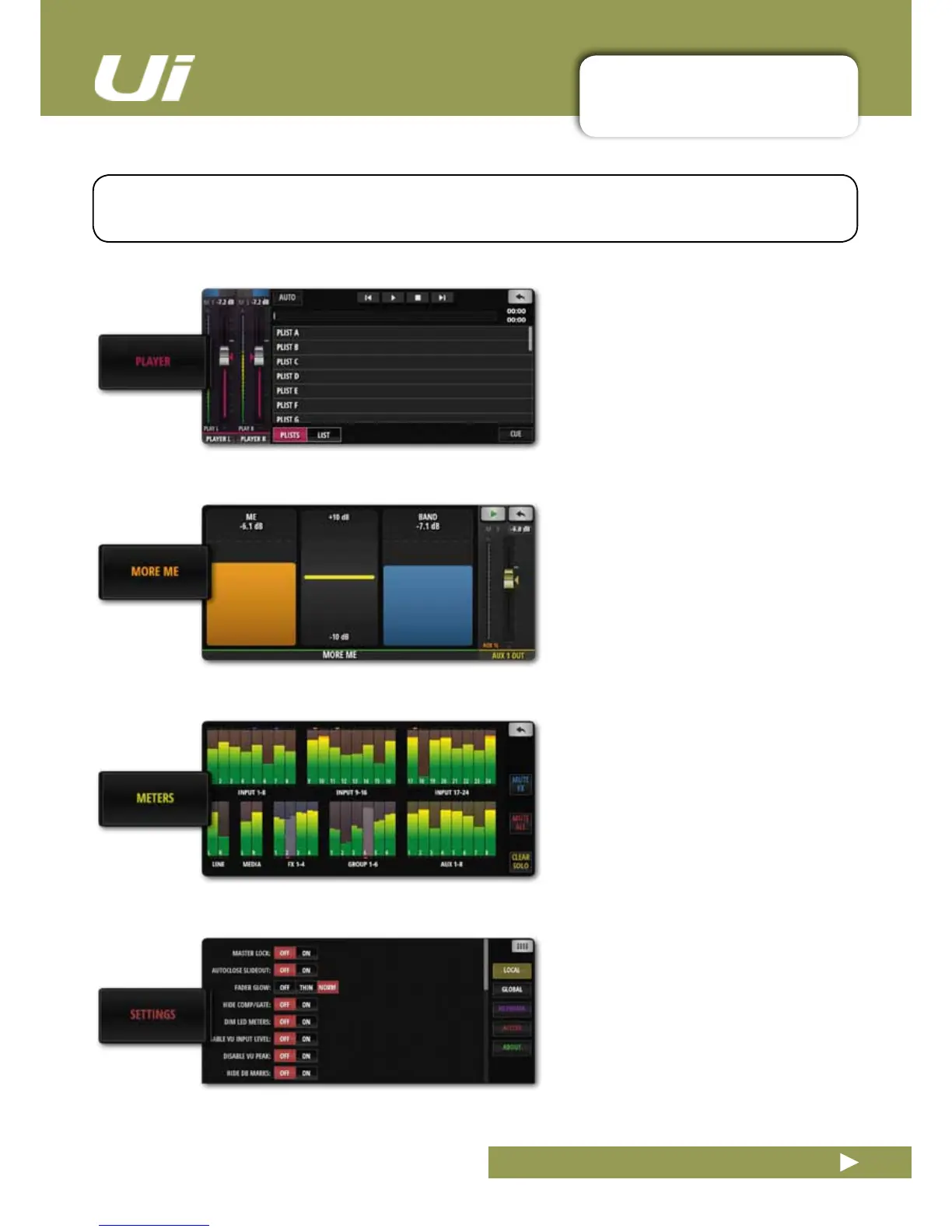

3.4: PHONE SOFTWARE SCREENS
FromtheMENUscreenyoucanaccesstheMIXscreen(Returnbutton,toprightcorner)andnineother
primary screens via the large colour-coded buttons.
Ui24R User Manual
PLAYER
The Ui mixer has a built in media player.
This can be used for backing tracks or for
background music in between sets. The
leplaybackisstreameddirectlyfrom
a USB stick. Files can be played from a
playlistordirectlyfromthelelist.Press
and hold the PLAYER channel name to
bring up the channel menu.
MOREME
MOREME allows users to assign their
own personal channel, and create a per-
sonal monitoring mix with a single large
fader. MOREME channel names are
highlighted in orange. To assign an input
channel to the MOREME fader, long-
press a channel name and select the AS-
SIGN ME function. Use the same process
toassignanAuxbusas‘MEOUT’.
METERS
VU Meters for all Mixer channels, plus
status LEDs for Phantom power, Phase,
Clip, Mute, and Solo. If you press on any
meter bank, it will take you to the faders
of those channels on the MIX page. This
page also provides fast access to the
CLEAR SOLOS, MUTE FX, and MUTE
ALL buttons.
SETTINGS
A range of system settings and
congurationoptionsundertheheadings
SETUP(mixpreferences),GUI(inter-
face),NETWORK(Wi-Fihotspotand
passwordsettings),ACCESS(multi-user
security),andHELP.

SoundCraft Ui24R Specifications

General

Channels quantity	24 channels
Digital sound processing	- bit
Microphone in	Yes
Master (XLR) out	8
Line inputs (RCA)	1
Headphone connectivity	6.3 mm
Number of microphone inputs	10
Rack capacity	4U
Video capability	-
USB connector type	USB Type-A, USB Type-B
LED indicators	Wi-Fi
Built-in display	No

Weight and Dimensions

Package weight	13600 g
