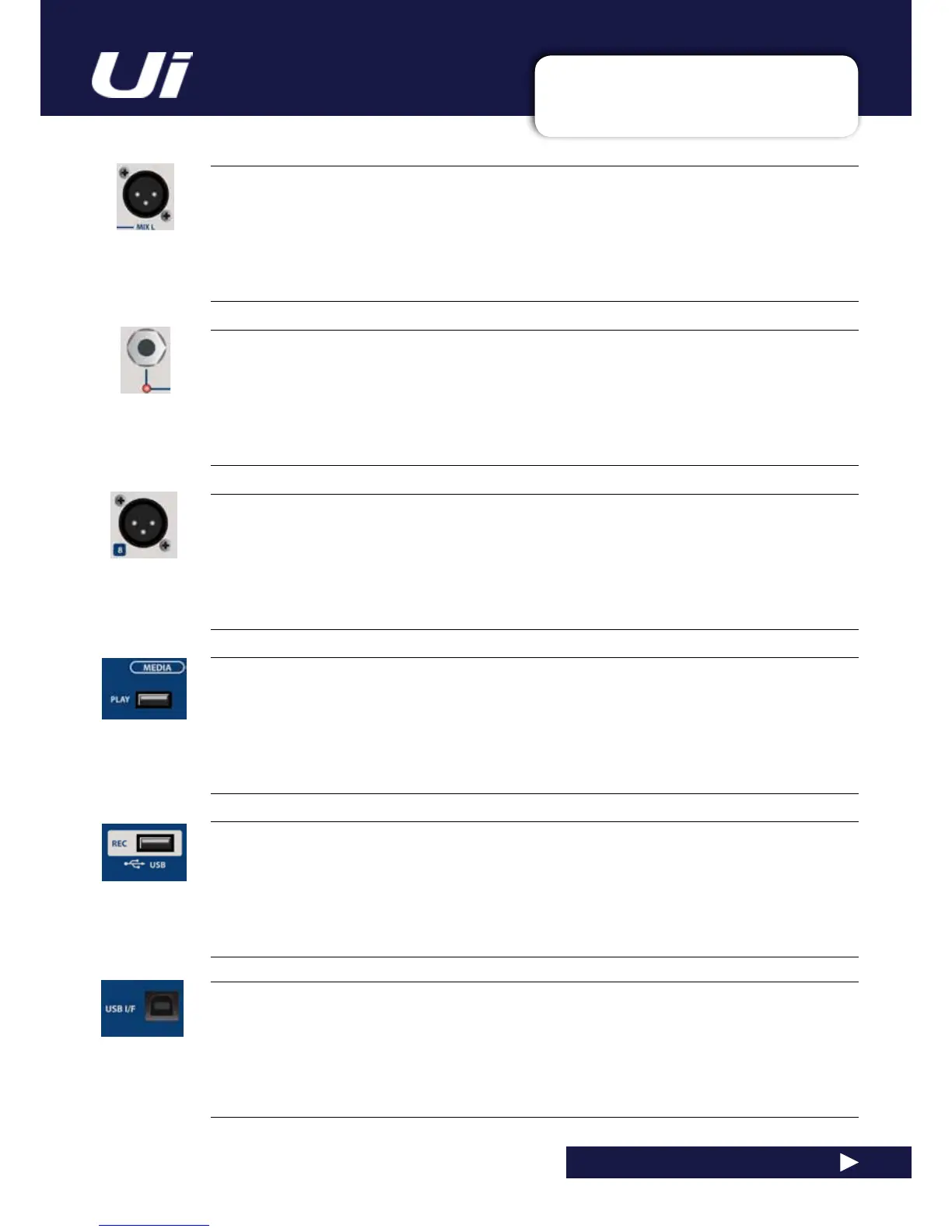

2.2: HARDWARE I/O & CONTROL
GETTING STARTED > HARDWARE
2.2: Hardware I/O And Control
MIX L/R OUTPUT - JACK
Master Channel Jack outputs
TheMasterChannelXLRandjackoutputsareparallelconnections(identical).
AUX/MATRIX OUTPUTS
Physical outputs for the Aux/Matrix outputs
The Ui24R has 8 x Aux/Matrix outputs. Aux/Matrix outputs are assigned in software.
2 TRK MEDIA - PLAY
USBSocketforUSBFlashDrivewithaudioplaybackles
2trackAudiolesmustbesavedtotheUSBstickaseitherMP3,AAC,.WAV,.OGG,.AIFF,or.FLACles.
See section 9.0.
This USB socket can also be used for Show File and Snaphot import/export, and software updates. There
are two additional USB sockets on the side of the unit.
Ui24R User Manual
MIX L/R OUTPUT - XLR
Master Channel XLR outputs
TheMasterChannelXLRandjackoutputsareparallelconnections(identical).
MEDIA - REC plus Multi-track Play and Record
USB Socket for USB Flash Drive - for multi-track play and record audio
TheSoundcraftUi24RRmixerwillrecordtheMasterChannelstereooutputasastereoleormultitrack
recording onto the storage device. See guide for playback and recording instructions - section 9.0.
USB B (DAW Connection)
USB Socket for connection directly to PC/Mac
The Soundcraft Ui24RR mixer can be used as a 32 x 32 USB Audio Interface with CORE Audio and ASIO
drivers.
