2.2: HARDWARE I/O & CONTROL

GETTING STARTED > HARDWARE

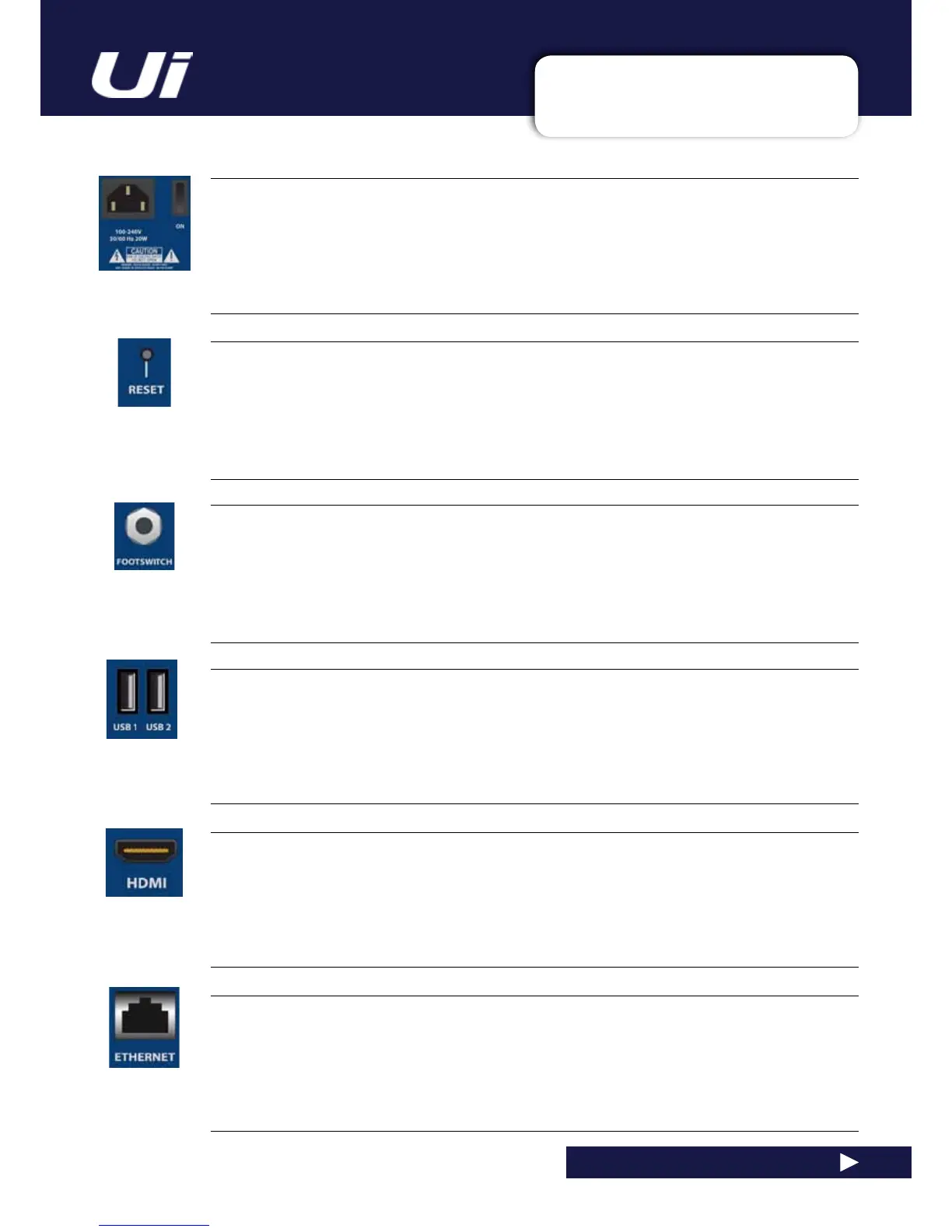

2.2: Hardware I/O And Control

RESET

Recessed push switch used to reset the unit.

To reset Network settings ONLY, switch the unit on while holding down the reset button for at least ten sec-

onds. For a full system reset, see section 3.0.2.

FOOTSWITCH

Footswtichconnectorusedtotoggleselectedcongurations.

Use a footswitch with a quarter-inch jack connection. The unit will auto-detect the connector type, though

the footswitch itself must be a non-latching type. The SETTINGS page has a variety of functions that can be

assigned.

Side USB Connectors 1 & 2

May be used for Connecting Keyboard, Mouse and Touchscreen

There are USB connections on the front panel of the unit for audio recording and playback.

ETHERNET

Standard RJ45-wired connector for use with wired Ethernet.

A wired Ethernet conenction to the Ui is the most secure. See section 10.1 for more details on network set-

tingsandcongurations.BydefaulttheIPaddressis10.10.2.1.

HDMI Connector

Supports HDMI Video standard

Complete Mixer Web Interface is displayed on HDMI screen. Please note if using DVI and VGA adaptors

they must be active. Performance will depend on other concurrent functions which are being used in the

mixer.(eg.whilerecordingtoUSBMTKstickyoumayseeaslowdowninscreenupdate)

Ui24R User Manual

PWR

Power Connector & Switch

The Ui mixer has an AC IC connection universal power supply. Use the power switch with the reset button

(othersidepanel)toresettheunittofactorydefaultsettingsifrequired.
