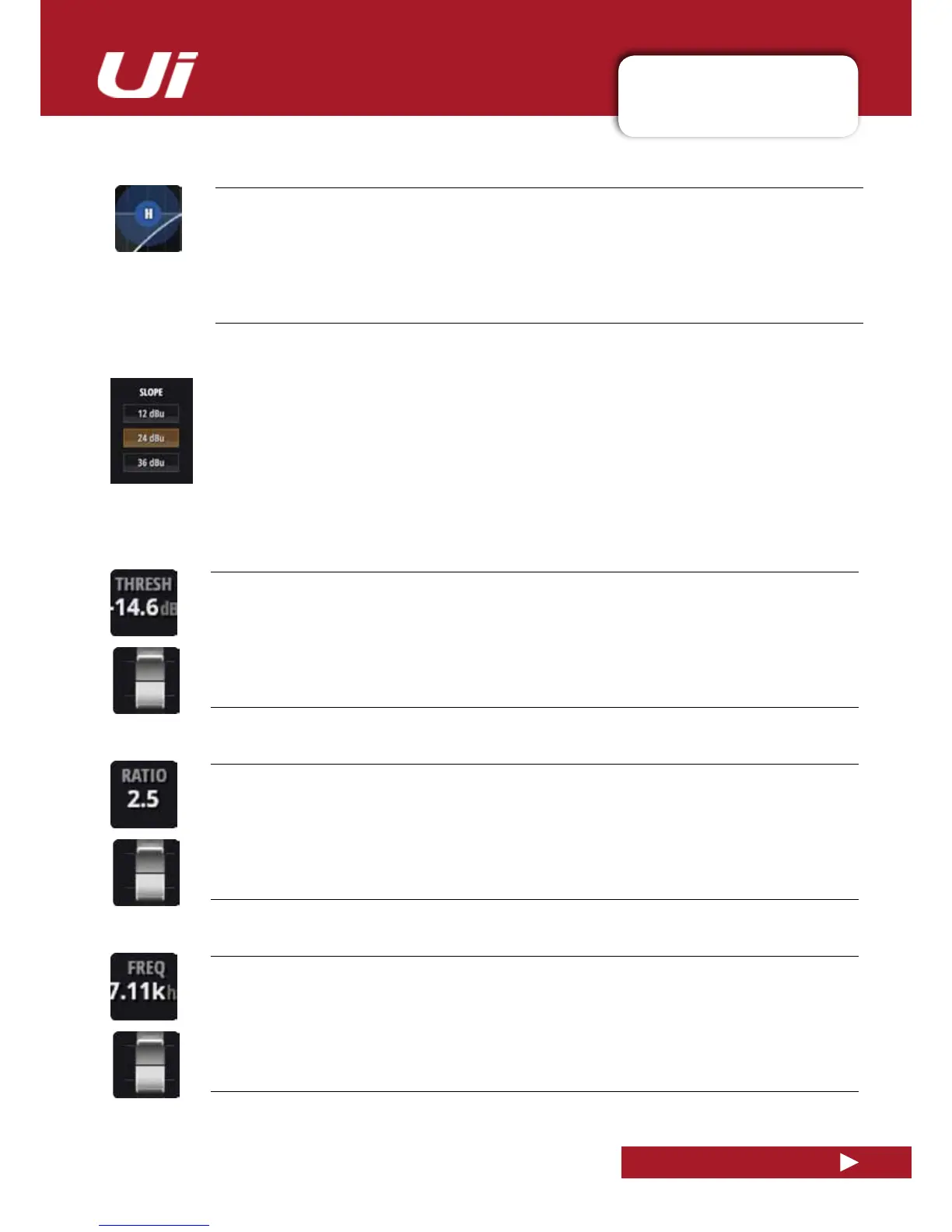

5.2: PARAMETRIC EQ
CHANNEL EDIT > PARAMETRIC EQ
5.2: PARAMETRIC EQ
HPF/LPF BALL
Draggablegraphic‘ball’forHighPassandLowPassFiltercontrols
Drag this graphic element to control. Left/Right adjusts Cut-Off frequency. Double-click/tap to reset. Right
Hand side of the screen displays selectable slope.
DE-ESSER THRESHOLD
Fader control of De-Esser Threshold
De-EsserthresholdisthelevelatwhichtheDe-Esserstartstoattenuatethe‘ess’band.ToaccesstheDe-
Esser fader controls in phone software, tap the DE-ESSER SETUP button.
DE-ESSER RATIO
Fader control of De-Esser Ratio
De-EsserRatioistheamountbywhichthe‘ess’bandisattenuatedwhentheaudiolevelcrossesthe
Threshold. To access the De-Esser fader controls in phone software, tap the DE-ESSER SETUP button.
DE-ESSER FREQUENCY
Fader control of De-Esser Frequency
DeterminesthecentrefrequencyoftheDe-Esserdynamiclter-thefrequencyonwhichthede-essing
process is focussed. To access the De-Esser fader controls in phone software, tap the DE-ESSER SETUP
button.
HPF/LPF SLOPE CONTROL
HighpassandlowpasslteringisavailabletoUi24RusersandisaccessiblethroughtheParametricEQ.
High Pass means only allowing the higher frequencies to play through, Low Pass means only allowing lower
frequenciestoplaythrough.ByusingthesetwoltersontheParametricEQtheusercantailorthesoundto
suittheirspecicPAsetup.TheSlopecontrolaltersthedegreeofltering.

SoundCraft Ui24R Specifications

General

Channels quantity	24 channels
Digital sound processing	- bit
Microphone in	Yes
Master (XLR) out	8
Line inputs (RCA)	1
Headphone connectivity	6.3 mm
Number of microphone inputs	10
Rack capacity	4U
Video capability	-
USB connector type	USB Type-A, USB Type-B
LED indicators	Wi-Fi
Built-in display	No

Weight and Dimensions

Package weight	13600 g
