Soyer BMS-10N - Initiation; Front and Rear View

5-18
Initiation
R
5. Initiation

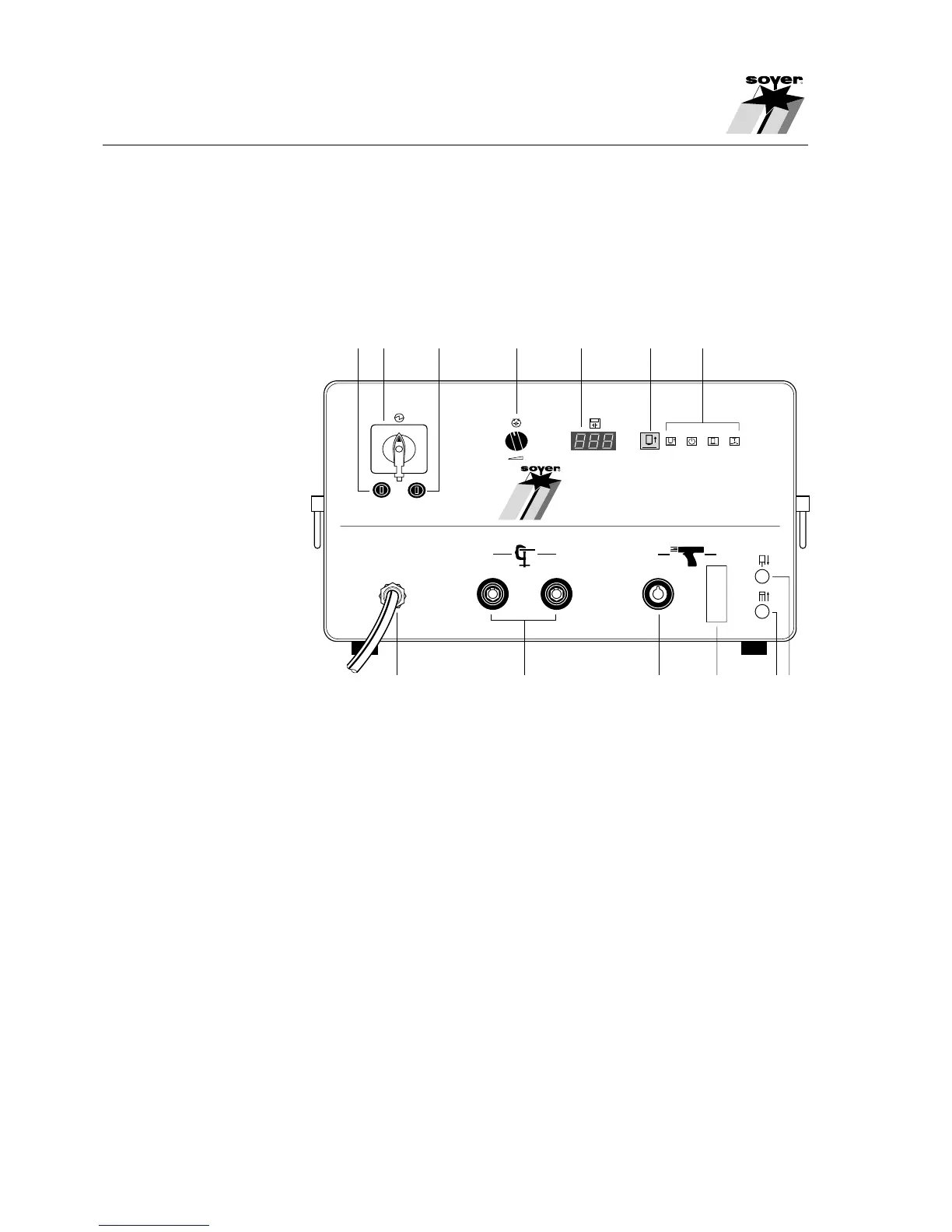

5.1 Front and rear view
Both stud welders BMS-10N and BMS-10NV have identical front and rear
views.
213456
10 9 8
111213
7
SZ.0044.E
0,1 AT 10 AT
HAUPTSCHALTER
I
0
Φ
000
R
BMS-10N
+
-
Heinz Soyer Bolzenschweißtechnik GmbH · Etterschlag · Inninger Str. 14 · 82237 Wörthsee · Tel.: 08153/885-0
Front view
1 Fuse element with fuse 0.1 AT
2 Main switch
3 Fuse element with fuse 10 AT
4 Energy range controller
5 Charging voltage display
6 Function key "Lift adjustment"
7 LED displays
8 Air function "forward" (optional)
9 Air function "backward" (optional)
10 Control cable socket
11 Welding cable socket
12 Earth cable connectors
13 Mains cable
