A-5
R
Appendix A/PS-3 - Adjustment of stud welding pistols - Capacitor Discharge
1.4.2 Adjusting the lift
• Loosen setscrew by turning it anticlockwise using Allen key SW 2.
• Insert screw driver into the groove of the adjusting screw (chapter 1.4.2,
item 1) located at the rear of the stud welding pistol and adjust by turning to
the left or right till the required lift is obtained. Turning to the left increases
the height of lift, turning to the right decreases it. After adjusting, check the
lift and correct it if necessary.
After having adjusted the lift, fix it by means of the setscrew (3).
☞
• Tighten setscrew (3) by turning it clockwise using Allen key SW 2.
Terminate the function "Lift test" after having successfully adjusted the lift.

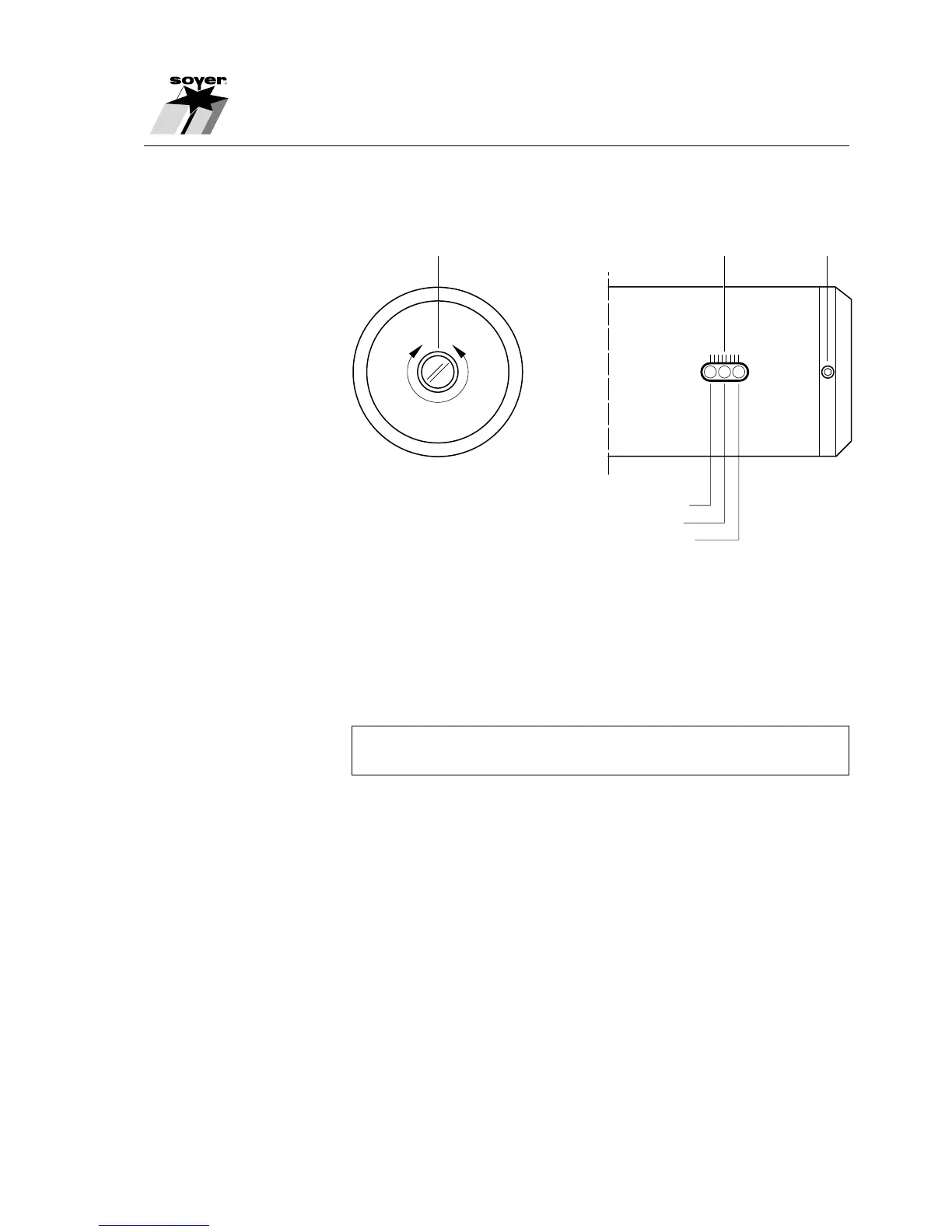

1 2 3
Minimum lift
Medium lift
Maximum lift
SZ.0051.E
1 Adjusting screw
2 Lifting scale
3 Setscrew
