Soyer BMS-10N - General Description

5-19
R
Initiation
5.2 General description
The SOYER stud welders BMS-10N and BMS-10NV are universally applicable
for both manual and automatic operation. They offer optional simple and low-
cost retrofitting of an automatic module for semi- and fully automatic stud feed.
Operation is very simple because of the infinitely variable bidirectional regula-
tion of the charging voltage. The performance values can be taken from the
precise digital display located on the clearly arranged raised front panel. All
functions can be monitored via clearly visible pilot lamps.
The stud welders BMS-10N and BMS-10NV allow you to carry out function
tests without welding current for welding pistols and heads (lift test) and to
adjust the lift. At the rear side of the stud welder a welding quantity counter is
installed to record the welding quantities. The standard CNC interface allows a
problem-free connection of the stud welder to bench welders.
Short charging cycles and high reserve capacities guarantee the readiness for
operating at short intervals and enable short welding sequences.
15 1614
17 1918
SZ.0046.E
20

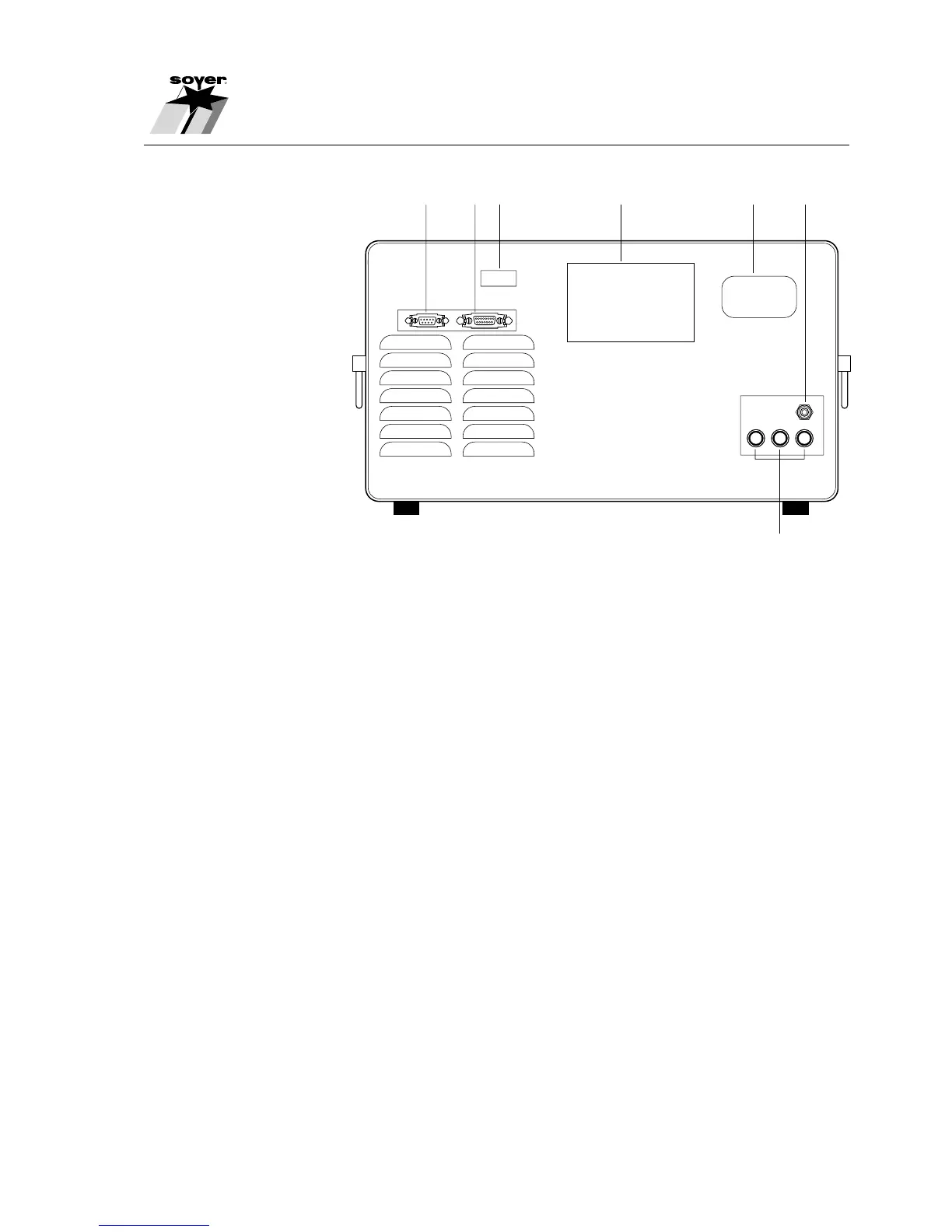

Rear view
14 9 pole connecting socket for
controlling the stud welder
via a CNC interface
15 15 pole connection socket
for controlling the feeder
16 Welding counter
17 Type plate
18 Test label
19 Compressed air supply connection
for feeder control (optional)
20 Connection sockets for compressed
air control of the feeder (optional)
