A-1
R
1 Adjustment of stud welding pistol
1.1 Adjustment of stud holder
The stud holders of welding pistols PS-1, PS-3K, PS-0K and PS-1K are all of
the same type. When using large studs with short type welding pistols
PS-0K and PS-1K, however, it is necessary to shorten the stop screw (4) of
such welding pistols accordingly.
For pistols PS-1, PS-3K, PS-0K and PS-1K, use the
☞ standard stud holder with adjusting screw, having a length of
40 mm! Ensure that the maximum stud length does not exceed
35 mm.

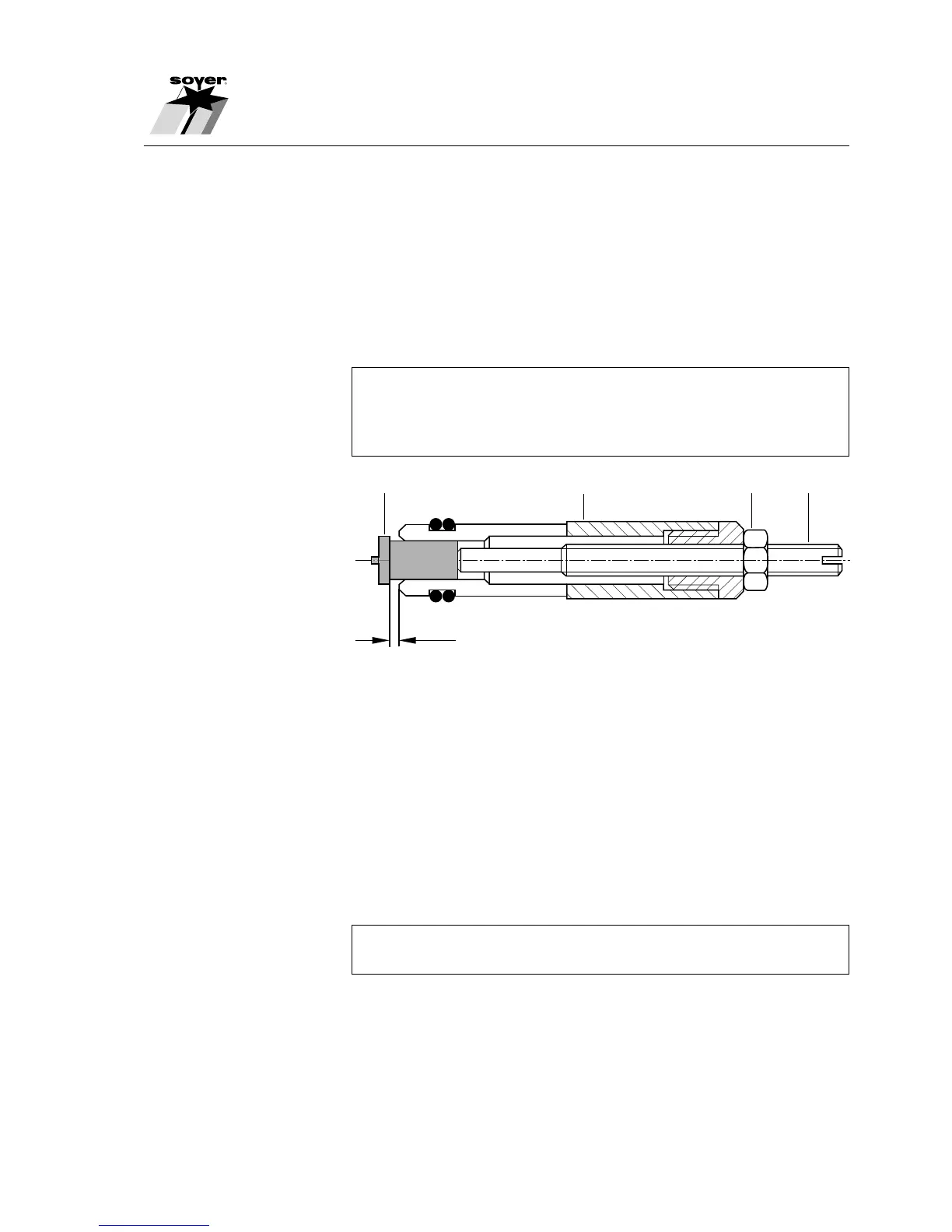

1 Stud 3 Counternut
2 Stud holder 4 Stop screw
For different stud diameters, different stud holders are required.
Adjust stud holder as follows:
• Loosen counternut (3)
• Insert stud (1) into stud holder.
The top edge of the stud flange must project for about 1.5 mm from the
front edge of the stud holder.
The stud must make contact with the stop screw (4).
☞
• Adjust stop screw (4) in the stud holder by turning it until the distance from
the top edge of the stud flange to the front edge of the stud holder equals
1.5 mm.
• Lock stop screw (4) by means of counternut (3).
Appendix A/PS-3 - Adjustment of stud welding pistols - Capacitor Discharge
1
2
3
4
1,5
SZ06.0593.012.X
