Appendix A/PS-3 - Initiation - Capacitor Discharge
2 Initiation
2.1 Total view

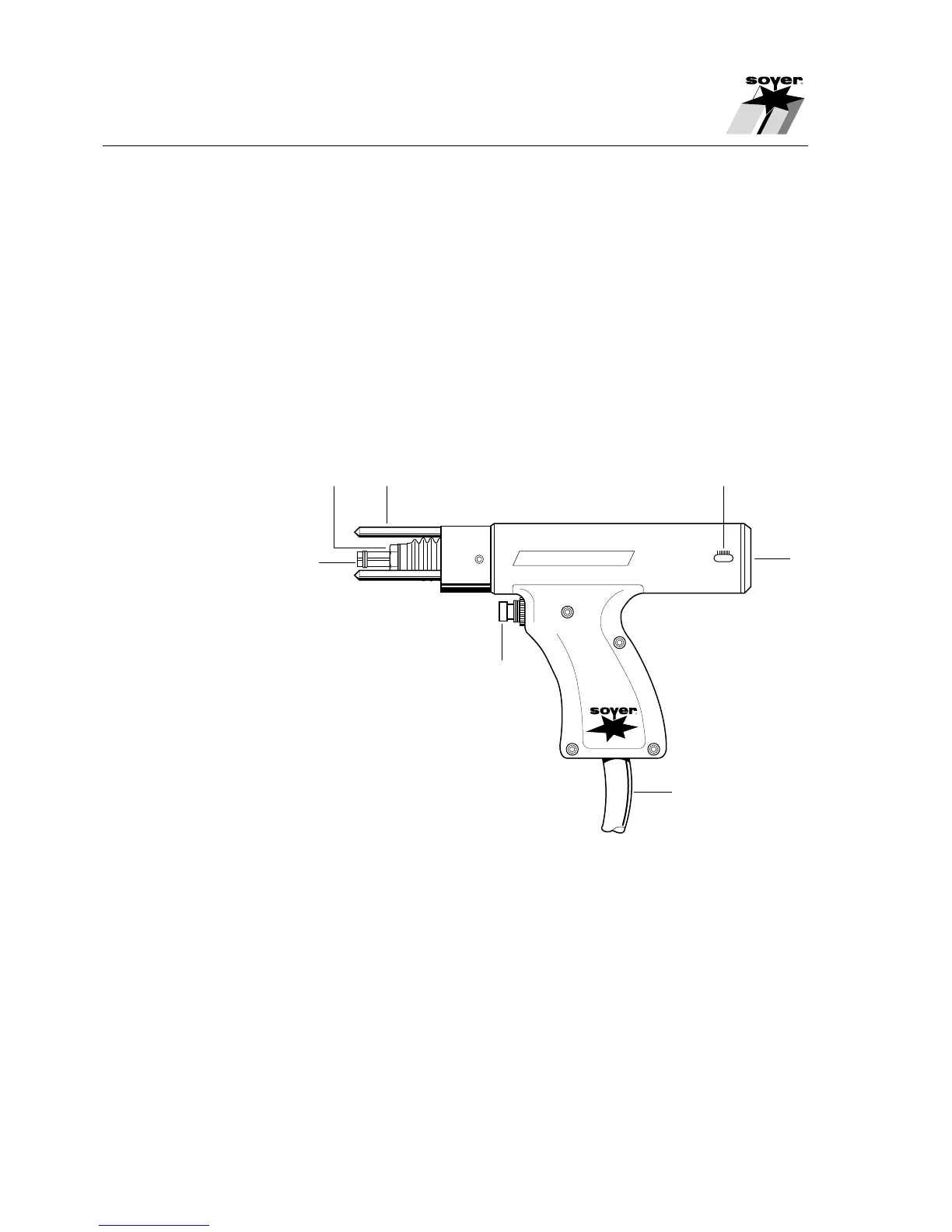

The illustration below shows stud welding pistol PS-3K. The indicated compo-
nents are only slightly different from those of stud welding pistols PS-1, PS-3,
PS-0K and PS-1K.
• Stud welding pistols PS-0K and PS-1K are provided with support tubes
instead of pistol legs (2)
• Stud welding pistols PS-0K and PS-1K are not equipped with a spring
pressure indicator
• Stud welding pistol PS-3 is equipped with a lift indicator and adjusting screw
for lift instead of the spring pressure indicator (chapter 2.1, item 3) and
adjusting screw for spring pressure (chapter 2.1, item 4)
1 Sleeve nut 4 Adjusting screw for
2 Pistol leg spring pressure or lift
3 Spring pressure indicator (stud welding pistol PS-3)
or lift indicator (stud welding 5 Connecting cable
pistol PS-3) 6 Trigger switch
7 Stud holder
