Component Identification Operator Manual 122997-341
3.1 General Become familiar with location and function of all major components
and controls, as well as their function before operating this unit (see
Figure 3-1).
Two models are available: Basil
®
4600 Cage and Rack Washer and
Basil
®
4602 Cage and Rack Washer.
•Basil
4600:
Wash Chamber: 46" W x 85" H x 92" L (1168 x 2159 x 2336 mm)
Overall Unit: 82" W x 102" H x 99" L (2082 x 2590 x 2514 mm)
Equipped with Reusable - Throwaway Detergent Tank
• Basil 4602:
Wash Chamber: 46" W x 85" H x 188" L (1168 x 2159 x 4775 mm)
Overall Unit: 82" W x 102" H x 195" L (2082 x 2590 x 4953 mm)
Equipped with Reusable - Throwaway Detergent Tank
Each model is equipped with a user-programmable microcomputer
control system capable of storing up to twelve treatment cycles to
process a wide variety of loads. Computer control system monitors
and automatically controls all cycle operations.
IMPORTANT: A listing of the Safety Precautions to be observed when operating and servicing this Cage
and Rack Washer can be found in S
ECTION 1. Do not install equipment until you have become familiar with
this information.

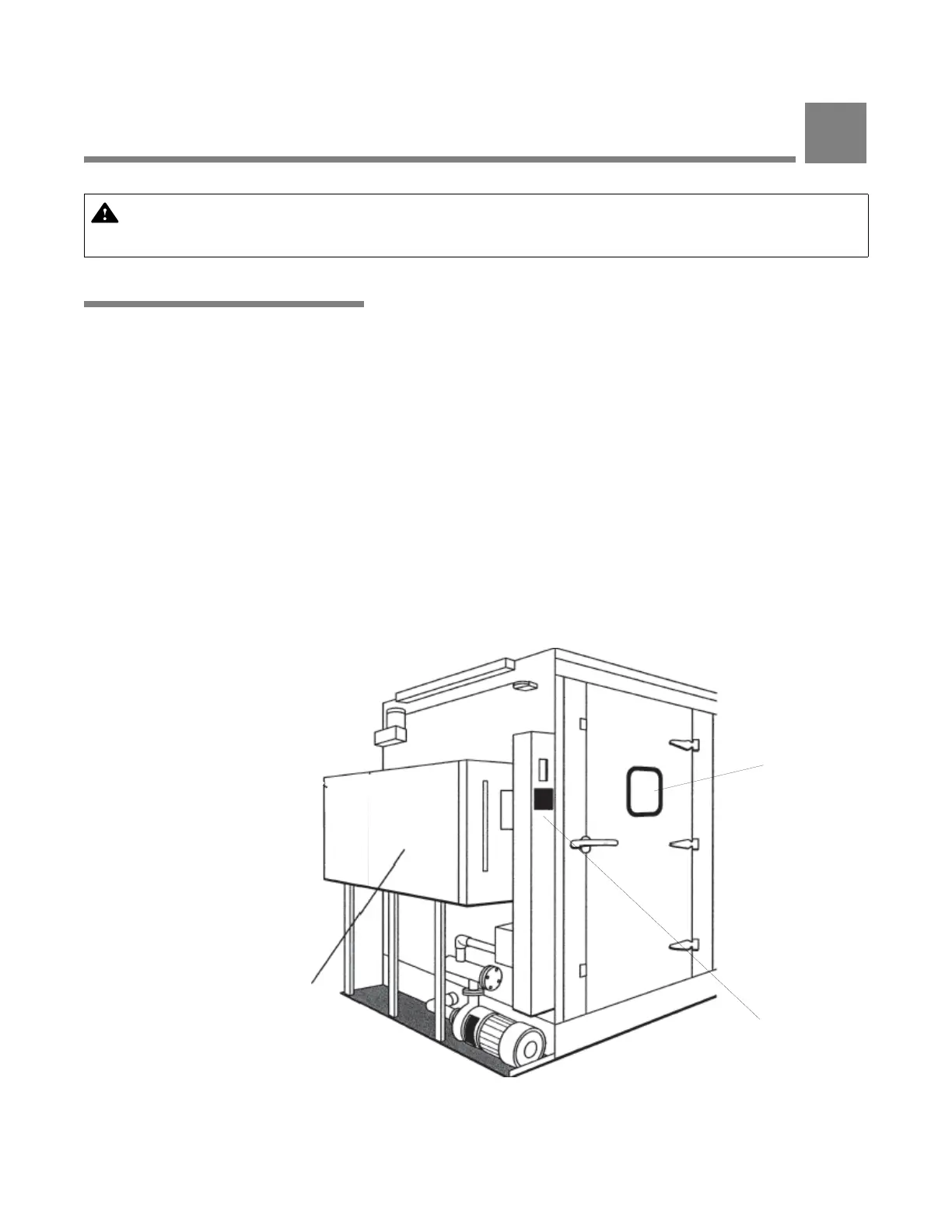

Figure 3-1. Washer Components - Basil 4600 (Typical)
Reusable-Throwaway
Detergent Tank
Chamber Door
and Viewing
Window
Control Console
COMPONENT IDENTIFICATION
