3.6 Unload-Side
Control Panel
An additional control column is installed on unload side of unit (see
Figure 3-7). The unload side control panel features same touch pads
and display screen as load end control panel.
All washer functions except POWER-OFF/STANDBY and PRINT/
PRINT VALUES can be directed from this control panel, and display
screen concurrently shows same cycle performance data as load-
side control panel.
3.7 Oscillating Jet
System
Oscillating jet system consists of two spray headers, one on each
side of wash chamber, suspended from an oscillating carriage (see
Figure 3-8). Each spray header is equipped with machined jets
angled to reach all surfaces of load.
Oscillating jet system travels back and forth along length of chamber
during recirculating/spraying phase function. Jet system is equipped
with a safety clutch that stops movement of oscillating carriage if an
obstruction is detected.

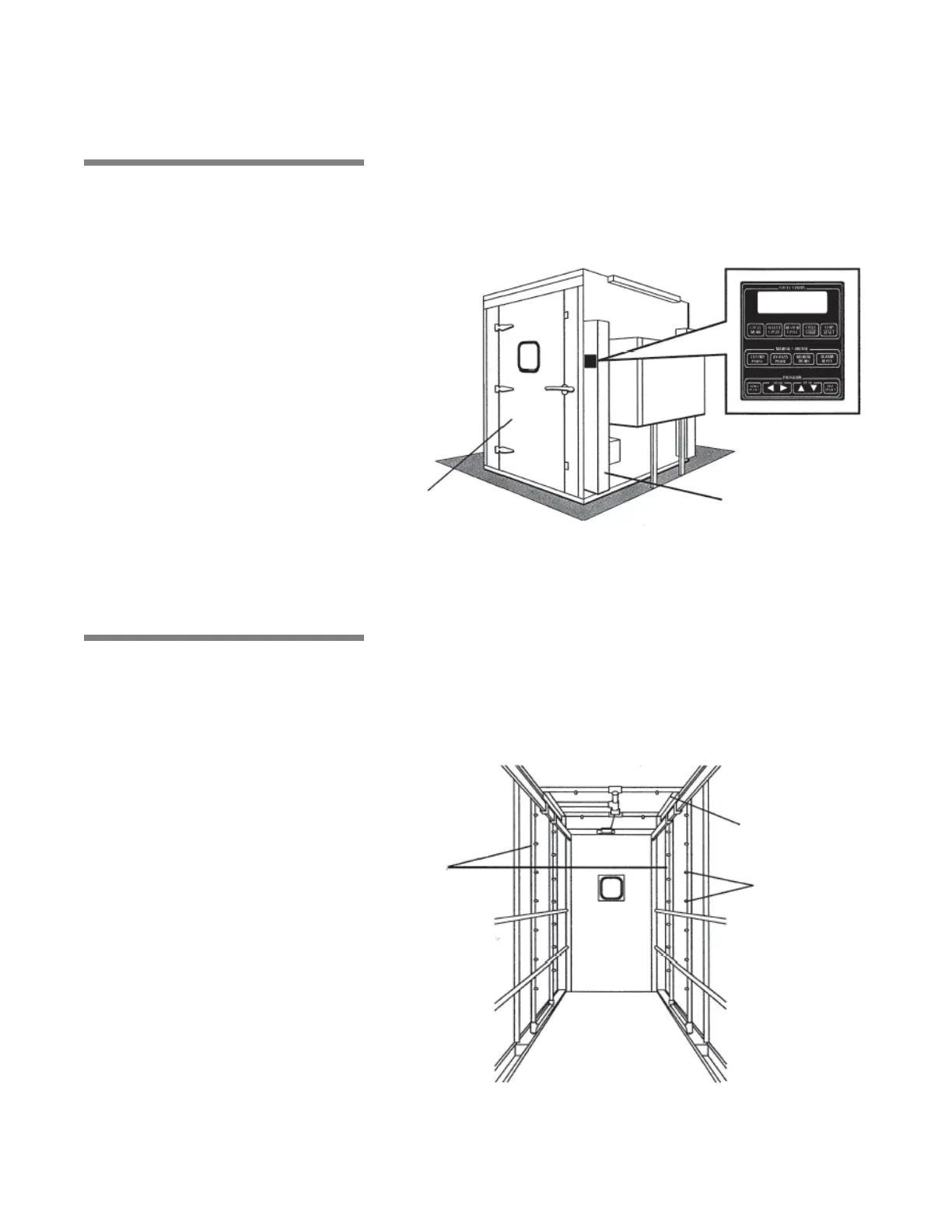

Figure 3-7. Unload-Side Control Panel
Second Control
Column
Additional Chamber
Door on Unload Side
Figure 3-8. Oscillating Jet System
Spray Jets
Spray
Headers
Oscillating
Carriage
