3-8
122997-341 Operator Manual Component Identification
3.8 Safety System Chamber doors are equipped with a safety switch to stop washer
operation if door is opened during a cycle and to prevent start of
washer operation if door is not securely closed.
Chamber doors are also equipped with a spring-loaded, explosion
relief type safety latch. Door can be easily opened when pushed
from inside of wash chamber.
Two stainless-steel, red-coated safety cables are installed inside
wash chamber, one along each side (see Figure 3-9). If cable is
pulled, washer operation is immediately stopped.
Oscillating jet system is equipped with a mechanical clutch to disen-
gage carriage drive if an obstruction is encountered, preventing
damage to spray headers and load items.
Load-side and unload-side control panels are equipped with STOP/
RESET touch pads. Press touch pad once to stop cycle operation,
and twice to abort cycle.
WARNING – PERSONAL
INJURY AND/OR EQUIP-
MENT DAMAGE HAZARD:
To open doors from inside
wash chamber, pull EMER-
GENCY STOP cables.
Washer operation will auto-
matically stop. Then, push
firmly on door panel using
shoulder and upper arm,
applying upper body force.

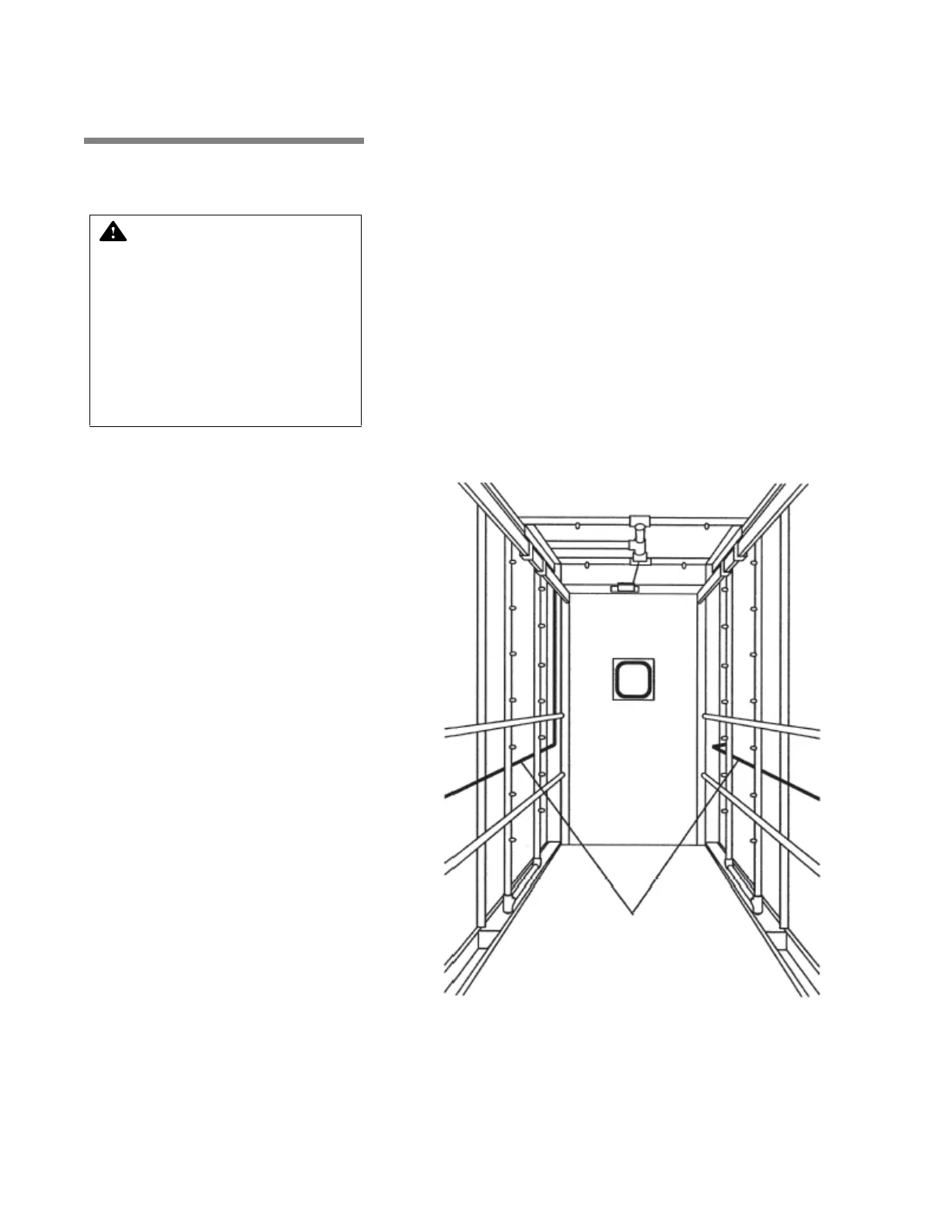

Figure 3-9. Safety Cables
Safety
Cables
