4-3

Washer Operation Operator Manual 122997-341

4-34

122997-341 Operator Manual Washer Operation

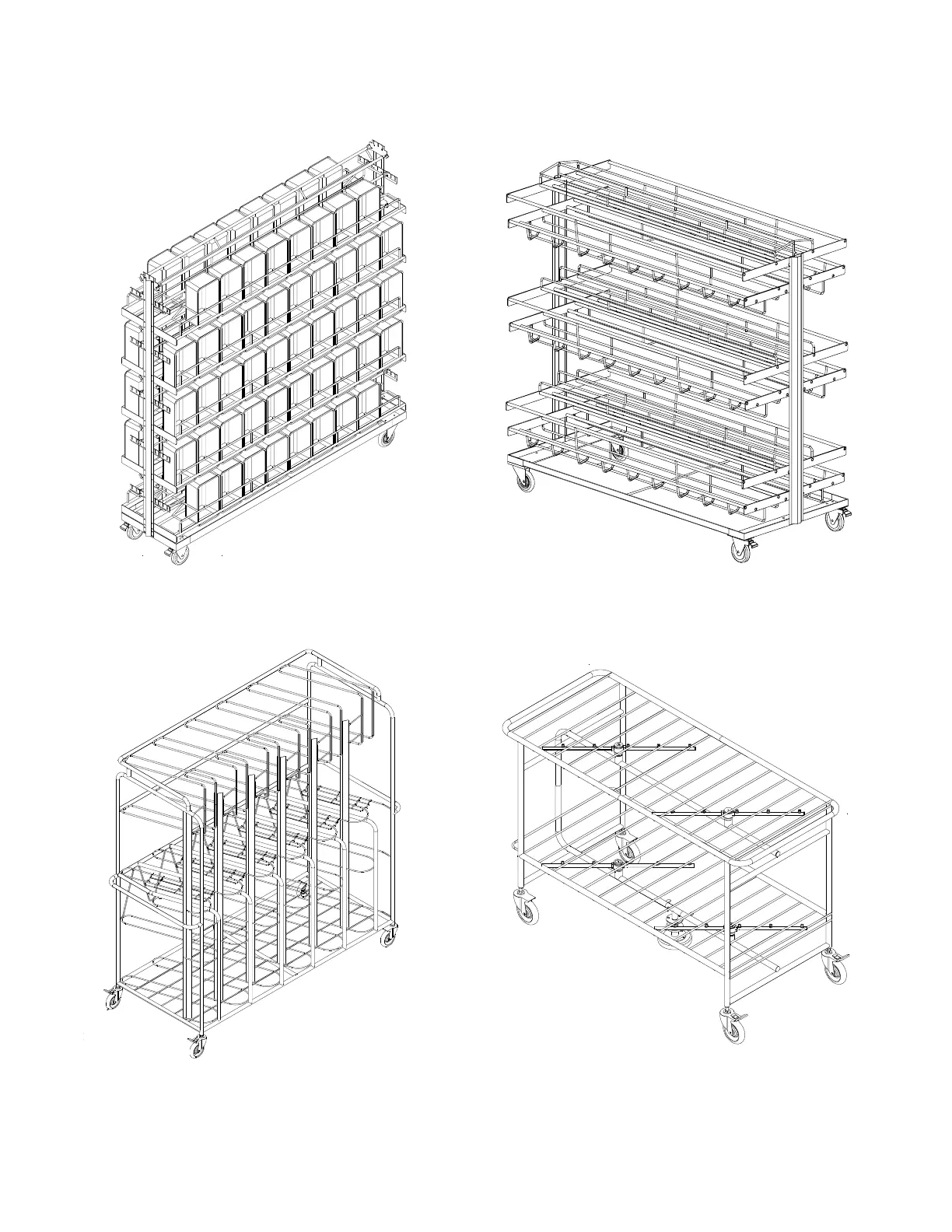

Rodent Cage Rack

Universal Cage and Pan Wash Cart

Bottle Washing Cart (Typical)

Pan Cart

Figure 4-2. Accessories
