Instruction Manual for Libra Care Bed
Page 71

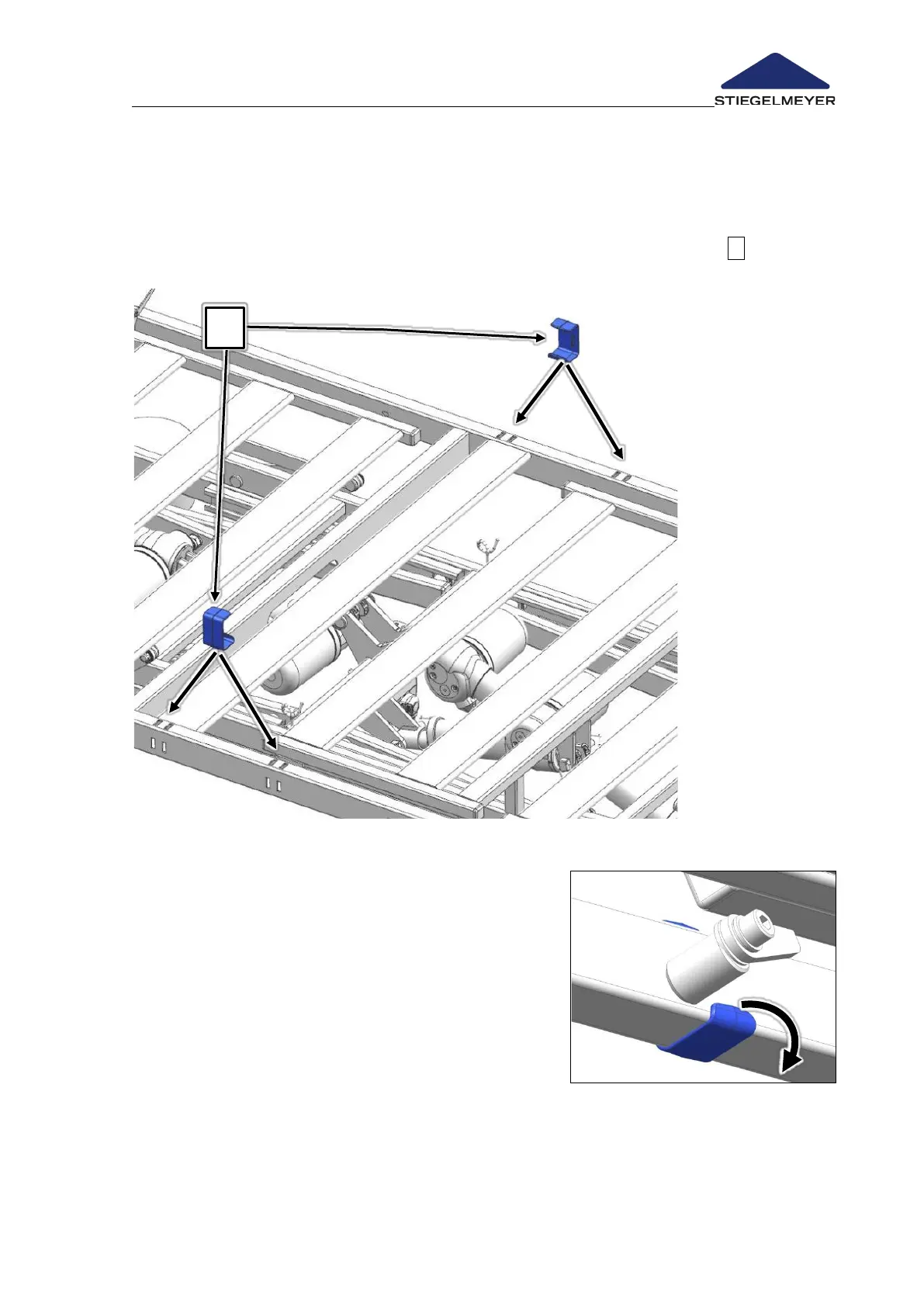

4.5.5.4 Covering cap – split safety side
Please note: Slits are provided in the frame of the mattress base to accommodate
split safety sides or side panels. Two slits are left open when the large safety
side/side panel is mounted at the head end and the small one at the foot end and
vice versa. For hygienic reasons, these must be closed with a cover clip 1 . The
cover clips are placed over one of the slits before the bed leaves the factory.
Removing the cover cap
To remove or replace the cover cap, grasp it from
below, push it down and remove it from the slit.
Fitting the cover clip
Proceed in reverse order to the removal process.
