Instruction Manual for Libra Care Bed

Page 72

4.5.5.5 Removal

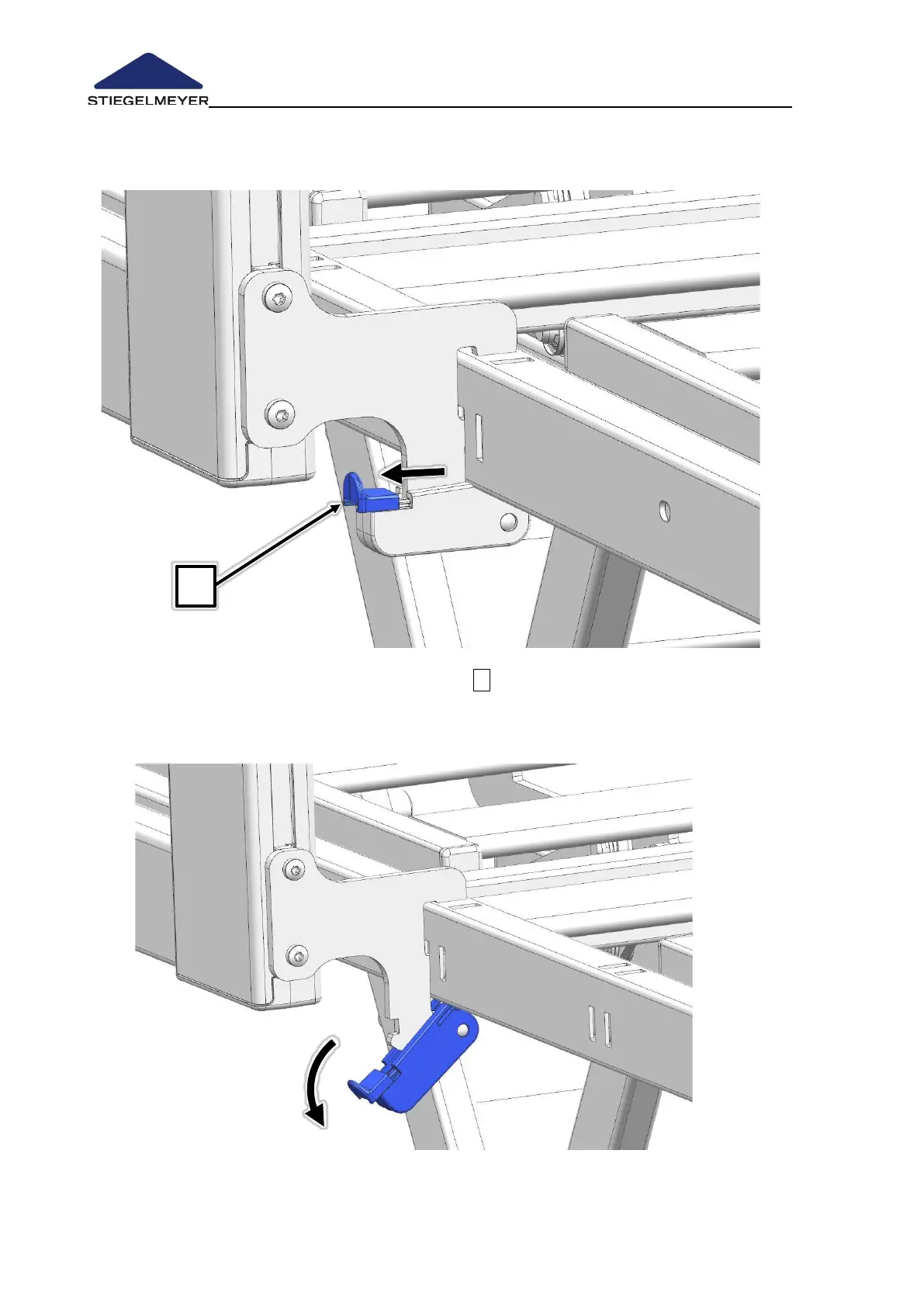

Use a finger to pull the orange safety lock 1 of the locking lever outwards and

keep holding it in this position

Swivel the locking lever (left and right side) downwards
