Instruction Manual for Libra Care Bed
Page 95
Inspection Report following an Inspection of Electromedical Equipment
according to DIN EN 62353 (VDE 0751-1): 2015-10 – Page 3 of 3

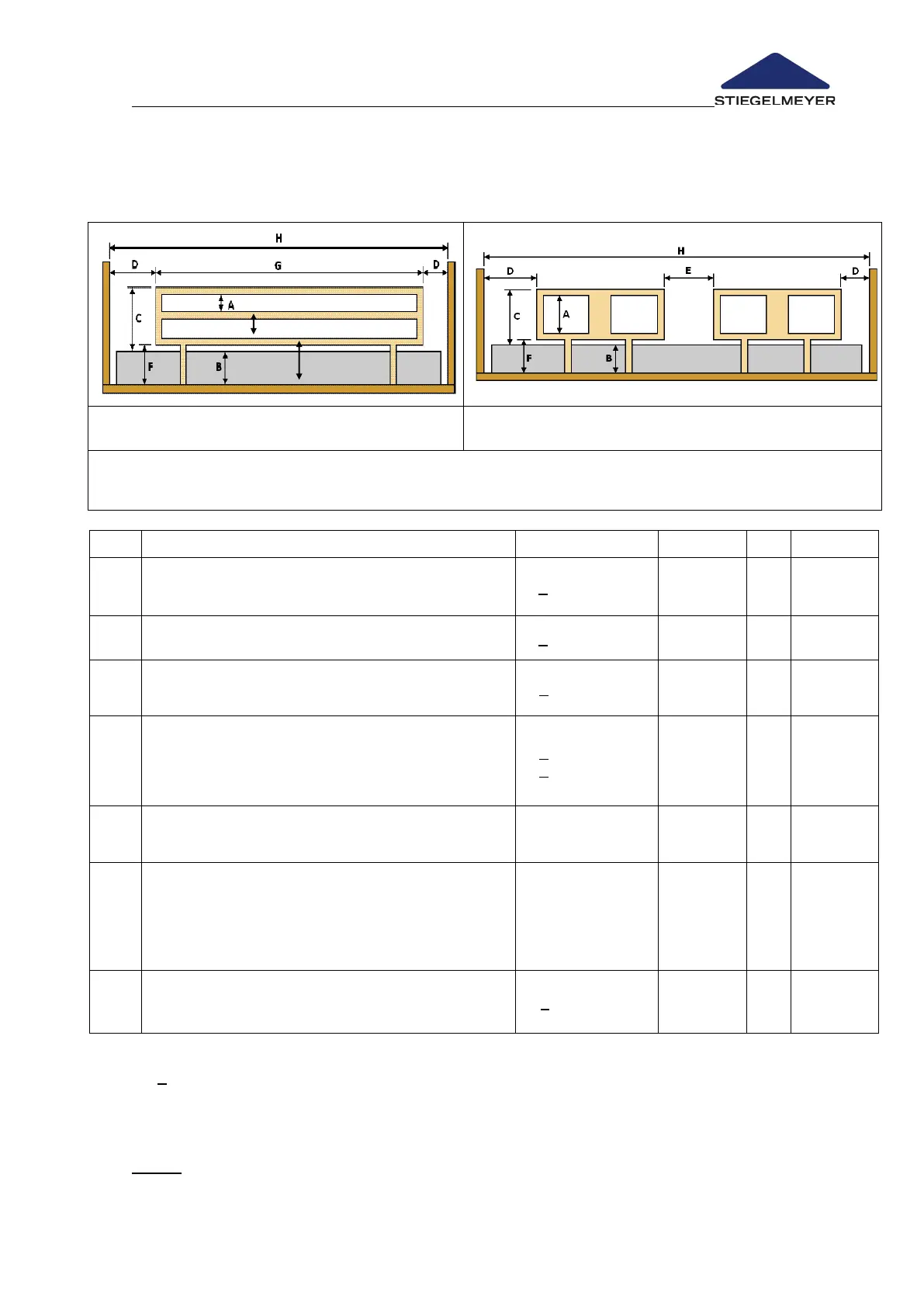

Dimensional check of safety sides in compliance with statutory regulations:
Dimensions of a one-piece safety side
Dimensions of a split safety side
When measuring the distances, the dimensions resulting from likely mechanical loads are
decisive!
*Data from Stiegelmeyer modified in view of expected new bed directive IEC 60601-2-52.
D > 318 mm is only admissible at foot end of bed!
** Data from Stiegelmeyer added for the existing full-length safety side configuration
*** Data from Stiegelmeyer added for the existing split safety side configuration with at least the safety
sides at the head end raised (if completely raised at head and foot ends, this corresponds to a one-
piece safety side; see **)
Source: Bavarian State Ministry for Health, Nutrition and Consumer Protection, Dept. 5, Schellingstr.
155, 80797 München (Munich); www.stmgev.bayern.de; email: presse@stmgev.bayern.de
The greatest dimension in at least one direction
between components of the safety side/handle in all
normally used positions.
Thickness of the normally used uncompressed
mattress as indicated by the manufacturer
Height of the upper edge of the safety sides above
the uncompressed mattress and the bed base in a
level position
Distance between the
headboard/footboard/accessories and the safety
sides/handle with the bed base in a level position.
Also applies in the case of an extended foot
section/bed extension
D < 60 mm or
D > 318 mm *
Distance between split safety sides with the
mattress base in a level position:
The greatest dimension in at least one direction of
each opening under the safety sides
– if D or E
≥ 318 mm
then F ≤ 60 mm,
– if D or E
≤ 60 mm
then F < 120 mm
Length of the safety side
