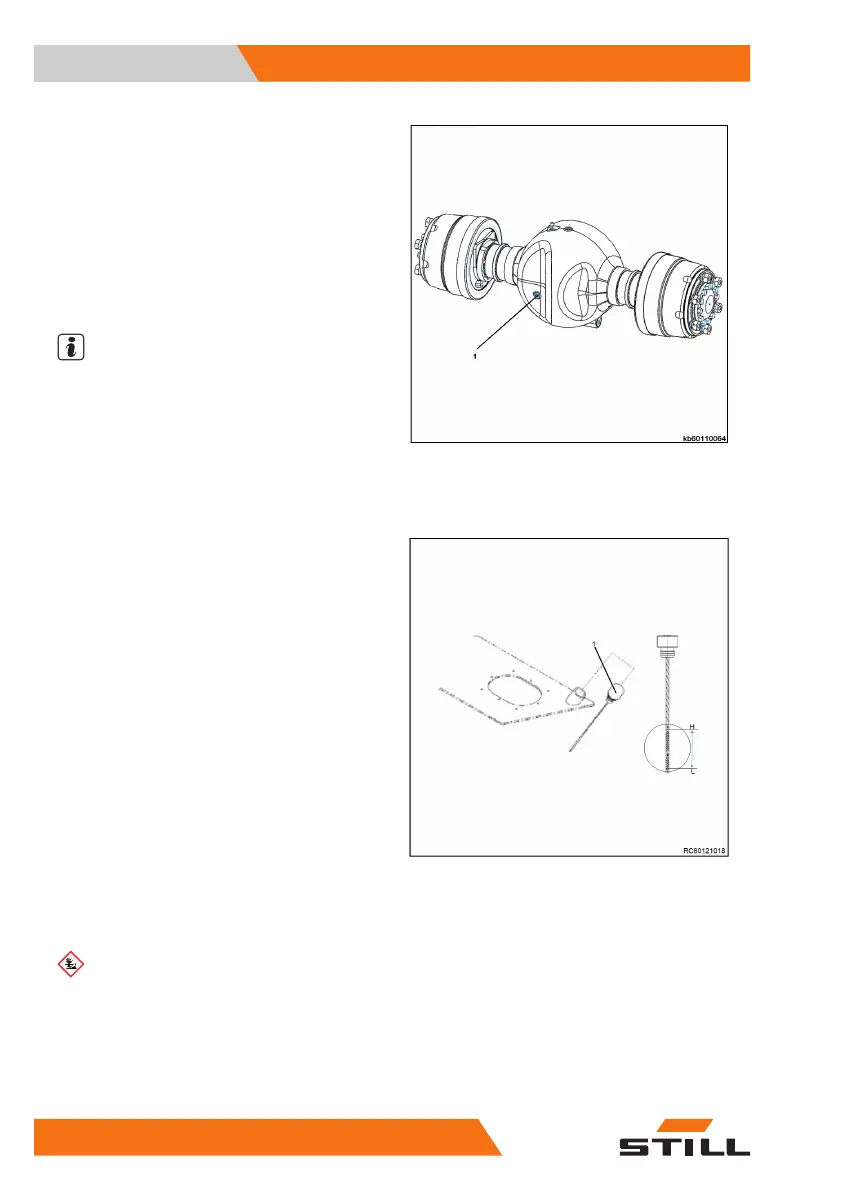

Checking the drive axle gearbox oil
– Unscrew the oil plug at the oil level aperture
(1).
– Check the gear shaft oil level to ensure it is
near the observation aperture posi-
tion(around 15mm).
– If necessary, fill the gearbox with gear oil
until oil flows out of the oil level aperture.
NOTE
Please refer to the chapter on replacing the
drive axle gearbox oil for steps to take when
adding gear oil.
Fill up the hydraulic oil
– Unscrew the oil cap (1)assembly.
– Fill up with hydraulic oil through the oil inlet:
90L for mast below 4500mm mast
95L for mast exceeding 4500mm mast
– Use the dipstick to check the oil level. The
oil level should reach the upper marking on
the dipstick.
– Close the bonnet.
– Start the engine and run it for a while.
Check the oil level again. Check the seals.
Checking the hydraulic oil level
ENVIRONMENT NOTE
Please follow the instructions for handling/
disposal of fluids and lubricants.
Maintenance
5
Maintenance service
136 60128011601 EN - 03/2020
