Transmission oil level inspection
procedure
NOTE
Check the transmission level with the trans-
mission in neutral, the oil hot (at least 40°C)
and with the truck on level ground.
– Ensure the forklift truck is stopped on a lev-
el surface.
– Remove the bottom plate.
– Run the truck in neutral for 3-5 minutes.

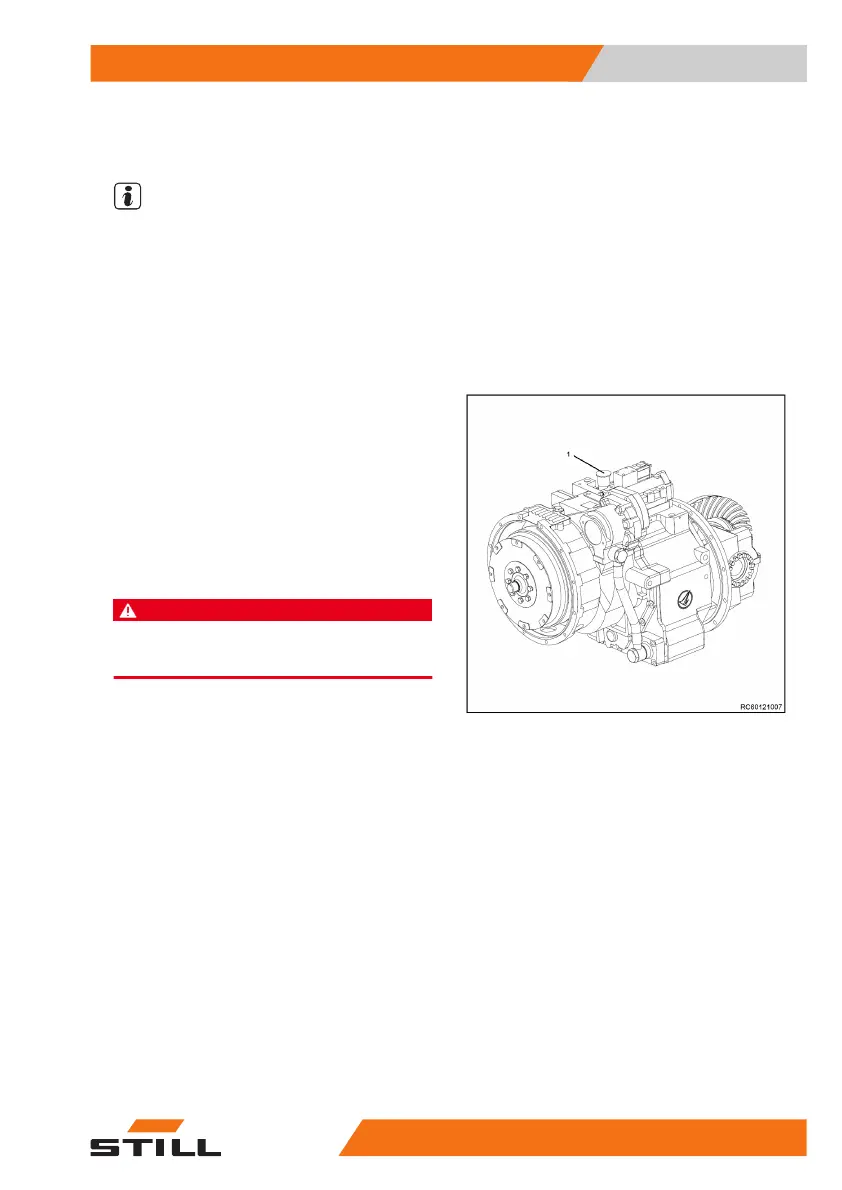

– Take out the dipstick(1)and wipe with a
clean cloth.
– Fully reinsert the dipstick.
– Take out the dipstick. The oil level should
be between the upper and lower marks on
the dipstick scale. If necessary, add trans-
mission oil via the oil inlet.
– Fully reinsert the dipstick.
DANGER
Take care not to touch moving parts during this op-
eration.
Use and operation
4
Remaining ready for operation
4960128011601 EN - 03/2020
