NOTE
The oil level should only be checked with the
lift mast vertical and the fork carriage lowered.
– Apply the parking brake.
– Open the engine cover.

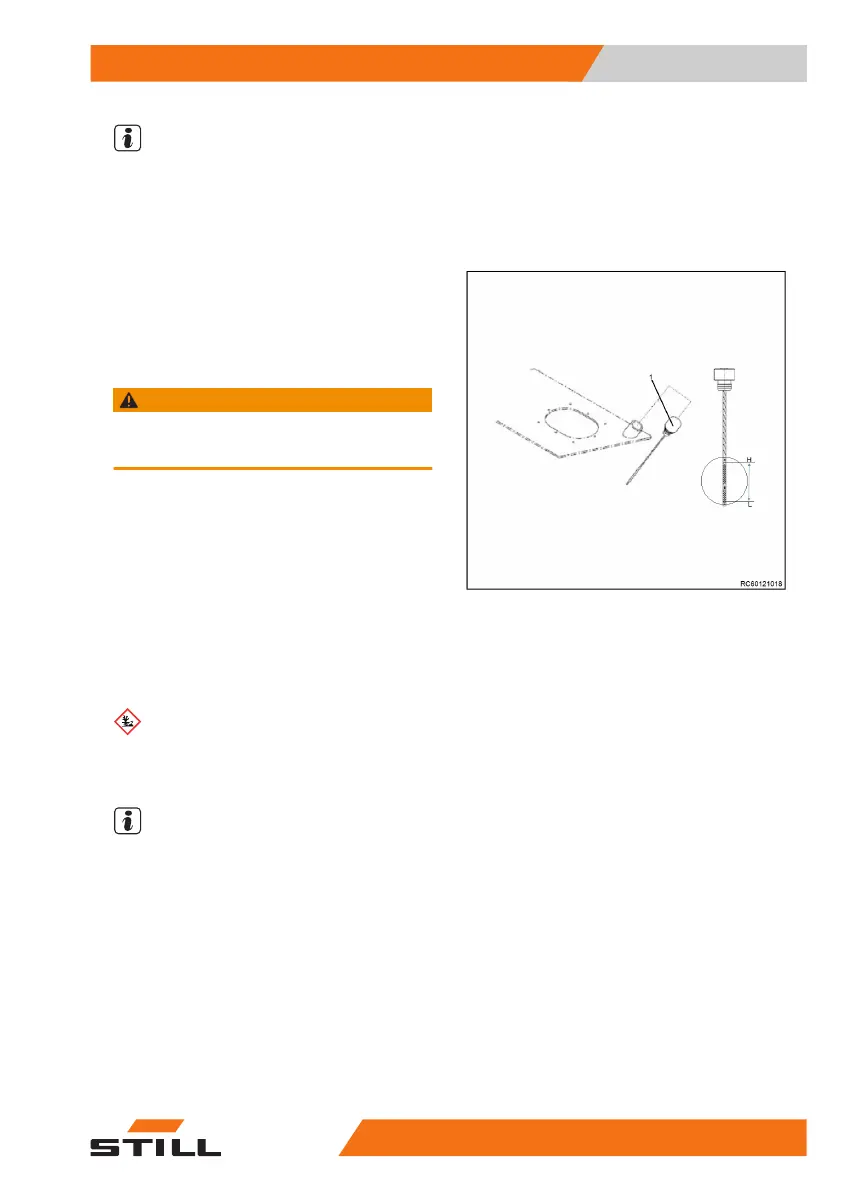

– Screw the oil cap with dipstick(1).
– Use a clean cloth to dry the dipstick.
– The oil level should be between the upper
and lower markings on the dipstick.
WARNING
The hydraulic oil must be checked while the engine
is stopped and the forklift is in horizontal level,
– When required, fill the hydraulic oil up to the
upper marking.
– Re-fit the oil dipstick.
– Safely close the engine cover.
Changing the suction filter and re-
turn filter
ENVIRONMENT NOTE
Please follow the instructions for disposal of
fluids and lubricants.
NOTE
The hydraulic oil will flow out. Place an oil pan
under the filter.
– Open the engine cover.
– Remove the pedal pad and bracket.
– Slacken off the fastening bolts and washers
on the cover assembly, then remove the
cover assembly.
– Slowly pull out the cover assembly so that
the oil flows back into the tank.
Maintenance
5
Maintenance service
13760128011601 EN - 03/2020
