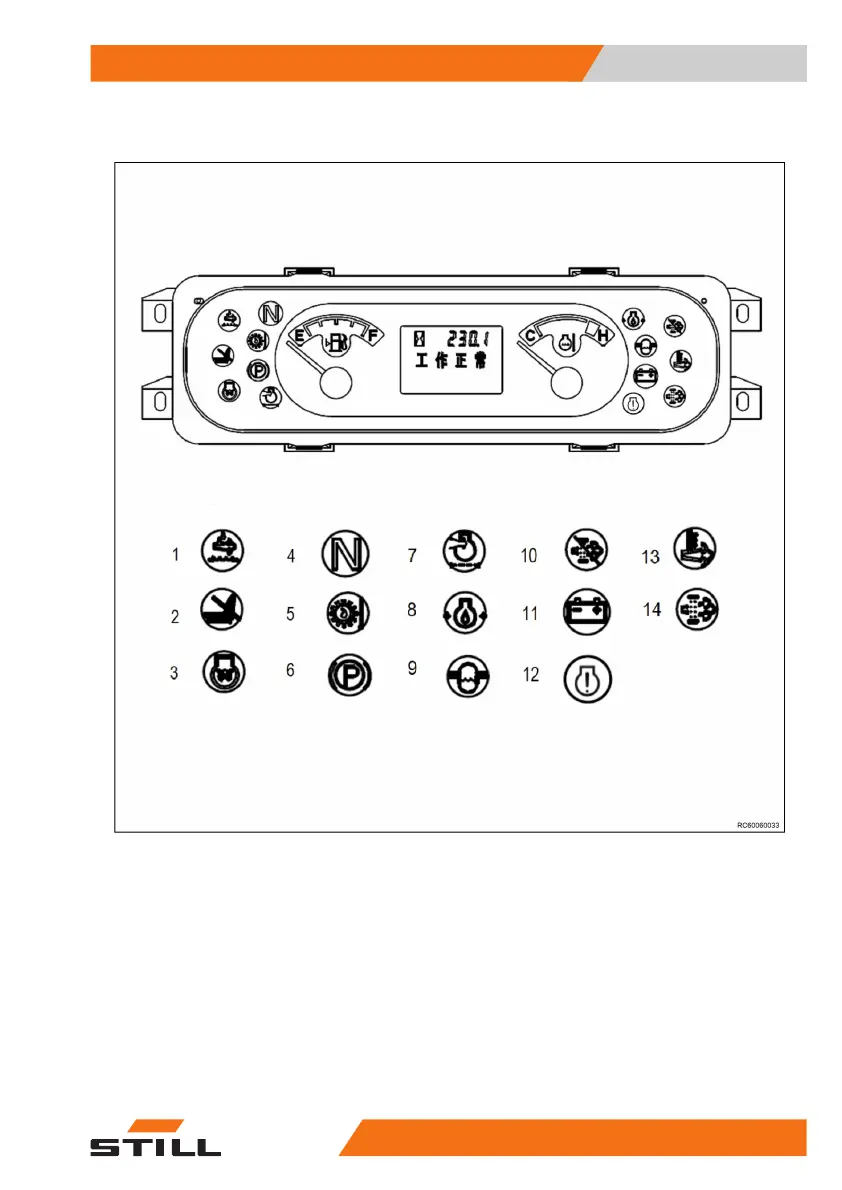

Still RCD40 - Display Unit

Display unit
“SCR error” indicator light
Seat indicator light
Indicator light for "glow plug preheating"
Neutral Position indicator
”Torque Converter Oil Temperature“ indica-
tor light
”Parking brake“ indicator light
”Clogged air filter” indicator light
”Engine oil pressure“ indicator light
1
2
3
4
5
6
7
8
“Water separator light” indicator light
”DPF regeneration disabled“ indicator
light(Red light)
”Battery charging“ indicator light
"Engine error light" indicator light(Red light)
DPF regeneration indicator light/Exhaust
temperature warning light(Yellow light)
“DPF regeneration request” indicator
light(Yellow light)
9
10
11
12
13
14
