• The maximum overall extent of the IGB network is 100 m.
• The IGB does not require an explicit master and the extensive configuration
typically required for Ethernet is eliminated.

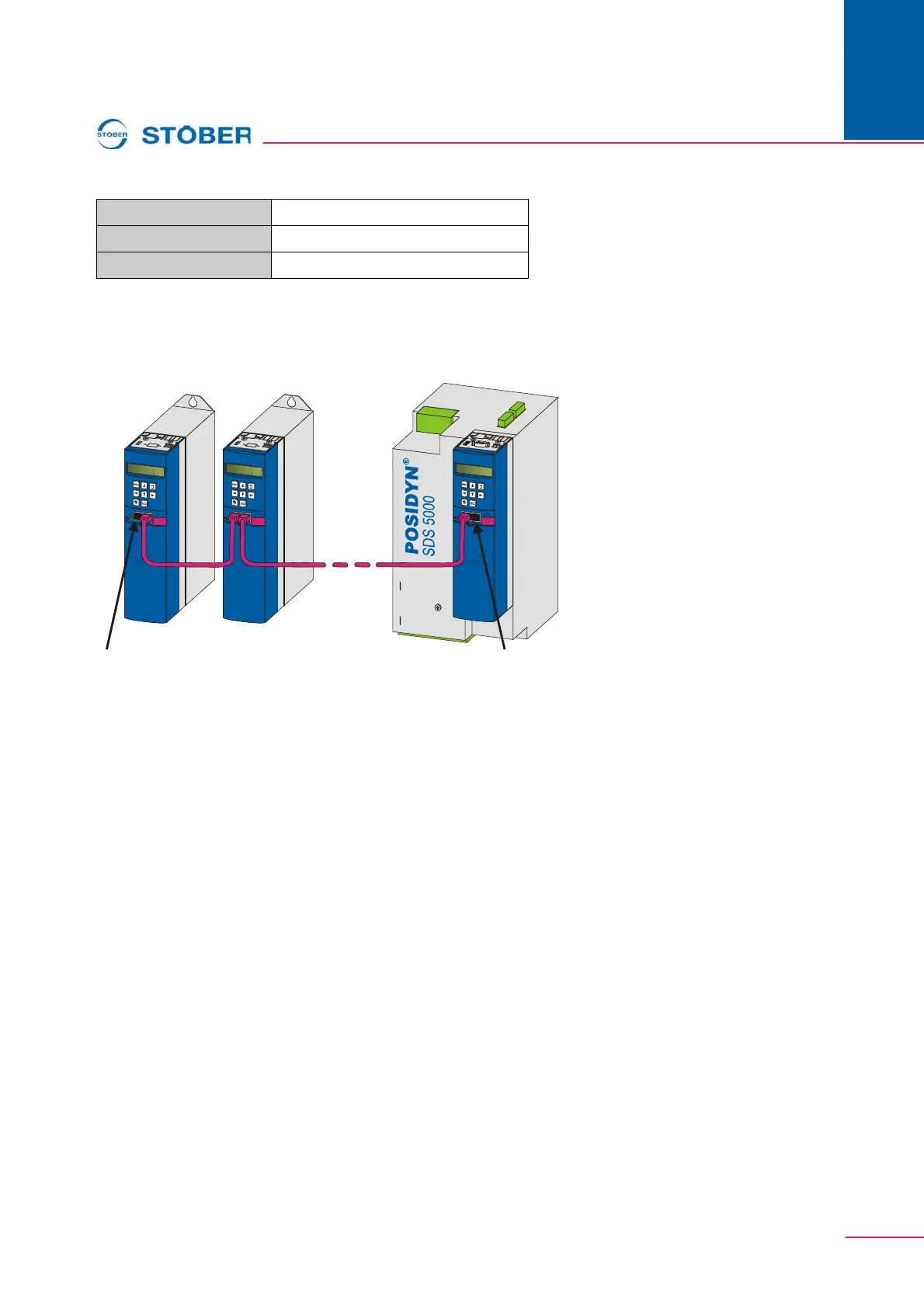

Fig. 7-6 IGB network
PC or the internet are connected to a free outer socket. The IGB network is set
up automatically when you turn on at least one inverter. The following conditions
apply when integrating additional inverters into the network:
• You have connected these inverters to the IGB network.
• The inverters in the network must be receiving a 24-V power supply.
To start the integration, the 24-V power supply of the inverter in the network must
be turned on. When the 24-V power supply is turned on, the IGB network is
restructured and up to 32 connected inverters will be integrated.
Plug wiring Patch or crossover
Quality CAT5e (or better)
Shielding SFTP or PIMF (or better)
IGB addr. 5 IGB addr. 31 IGB addr. 0
Free socket X3 A
for connection of
PC or Internet
Free socket X3 B
for connection
of PC or Internet
