STÖBER 6 | Installation
11/2017 | ID 442793.00
25
6.3 Minimum clearances
Note the minimum clearances for installation below.
Drive controller
D
35
A
C C
B

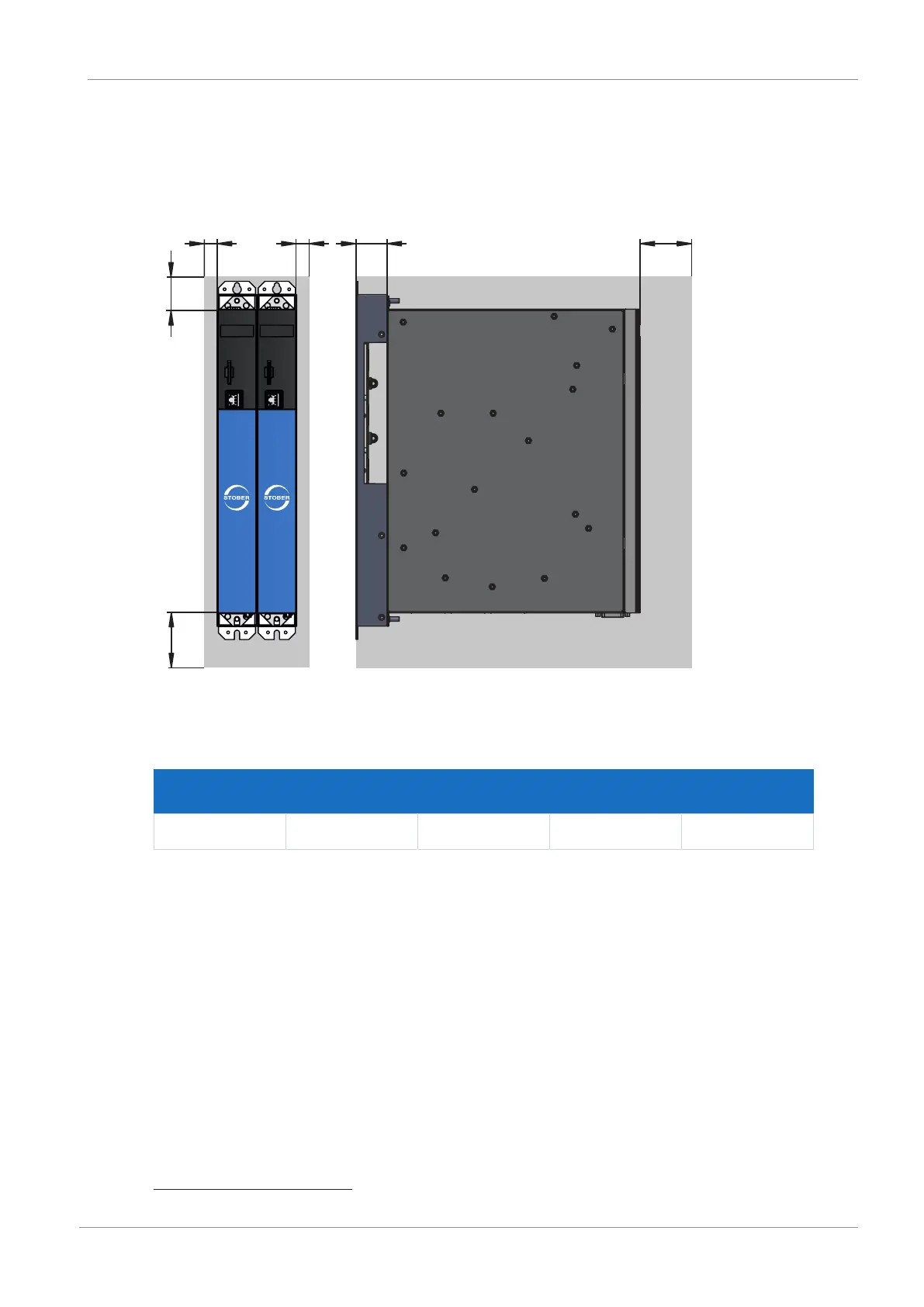

Fig.2: Minimum clearances
The specified dimensions relate to the outer edges of the drive controller.
Minimum
clearance
A (above) B (below) C (on the side) D (in front)
All sizes 100 200 5 50
1
Tab. 19: Minimum clearances [mm]
Braking resistor
In order for heated air to flow out unimpeded, a minimum clearance of approximately 200mm
must be maintained in relation to neighboring components or walls and approximately 300mm
must be maintained to components above or ceilings.
1
Minimum clearance to be taken into account for permanent connection of the X9 service interface
