6.5 Length of copper rails
For the installation of the Quick DC-Link modules, you require 3 prepared copper rails with a
cross-section of 5 × 12mm.
The length of the copper rails is 5mm shorter than the total width of the group, i.e. the total
width of all DL6B Quick DC-Link modules present in the group:
B = A − 5mm
Note that the correct length of the copper rails can be determined only after installation of all
modules:
A
B

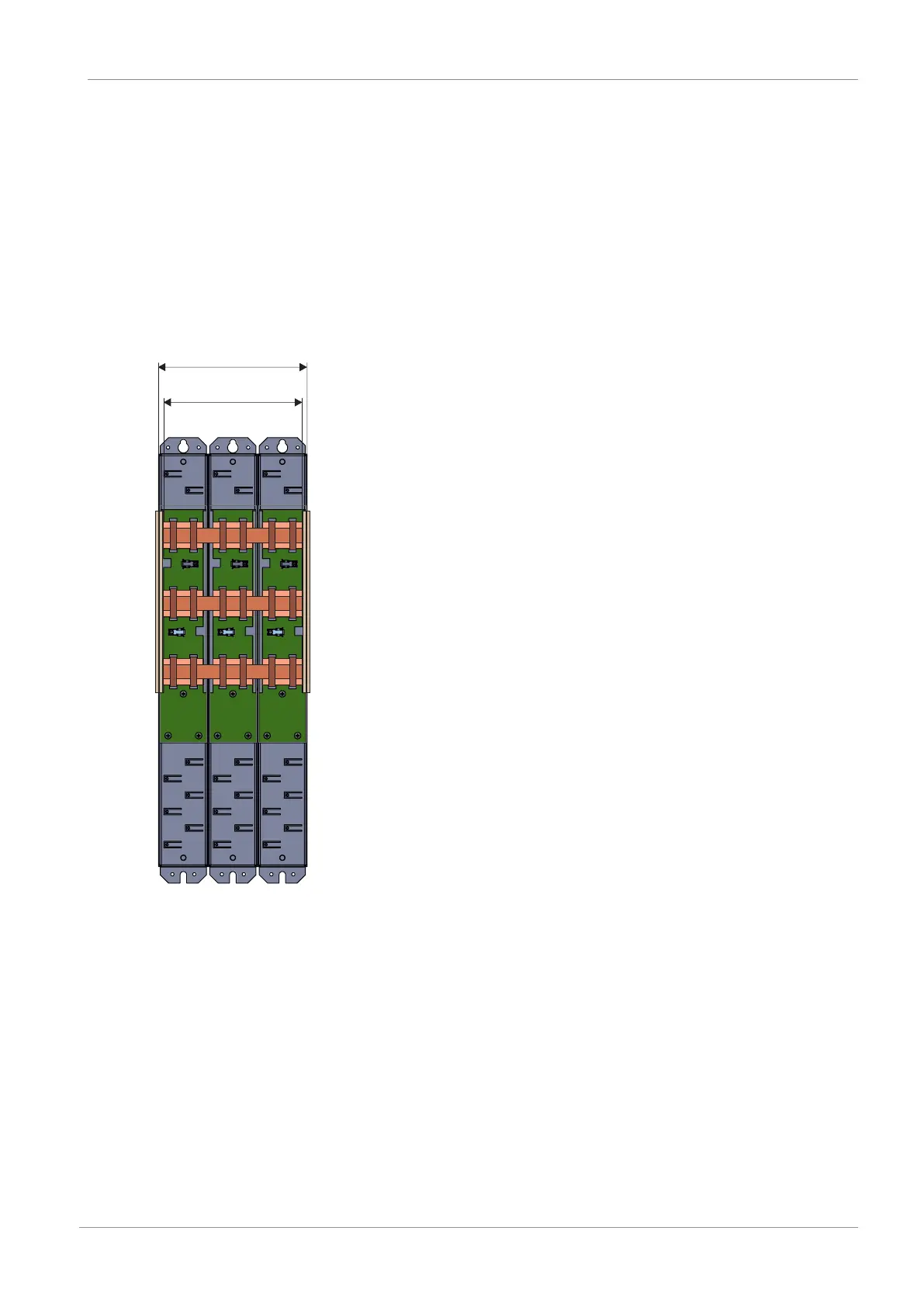

Fig.4: Determination of the correct length of the copper rails
A Total width of the group after installation
B Length of the copper rails = A − 5mm
