Stober SC6 Series Commissioning Instructions

7 | Connection STÖBER
50
11/2017 | ID 442793.00

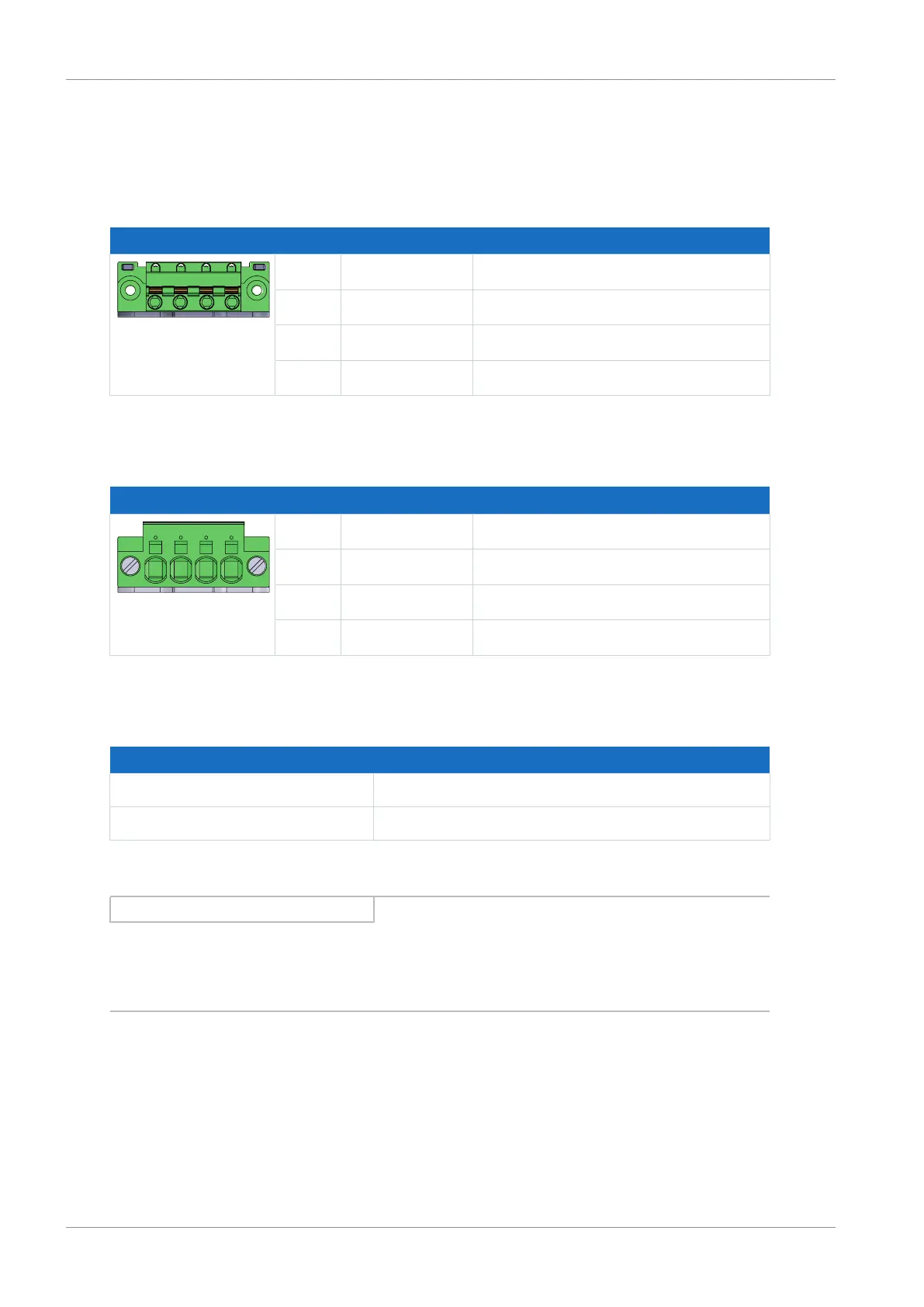

7.4.12 X20A: Motor A
The motor of axis A is connected to X20A.
Size 0
Terminal Pin Designation Function
U | V | W | PE
1 U Phase U motor connection
2 V Phase V motor connection
3 W Phase W motor connection
4 PE Grounding conductor
Tab. 45: X20A connection description – Size 0
Sizes 1 and 2
Terminal Pin Designation Function
U | V | W | PE
1 U Phase U motor connection
2 V Phase V motor connection
3 W Phase W motor connection
4 PE Grounding conductor
Tab. 46: X20A connection description – Sizes 1 and 2
Cable requirements
Motor connection Max. length of the power cable
Without output choke 50m, shielded
With output choke 100m, shielded
Tab. 47: Maximum cable length of the power cable [m]
Information
To ensure proper functionality, we recommend using cables from STOBER that are matched to
the complete system. In case of use of unsuitable connection cables, we reserve the right to
reject claims under the warranty.
