Connectors

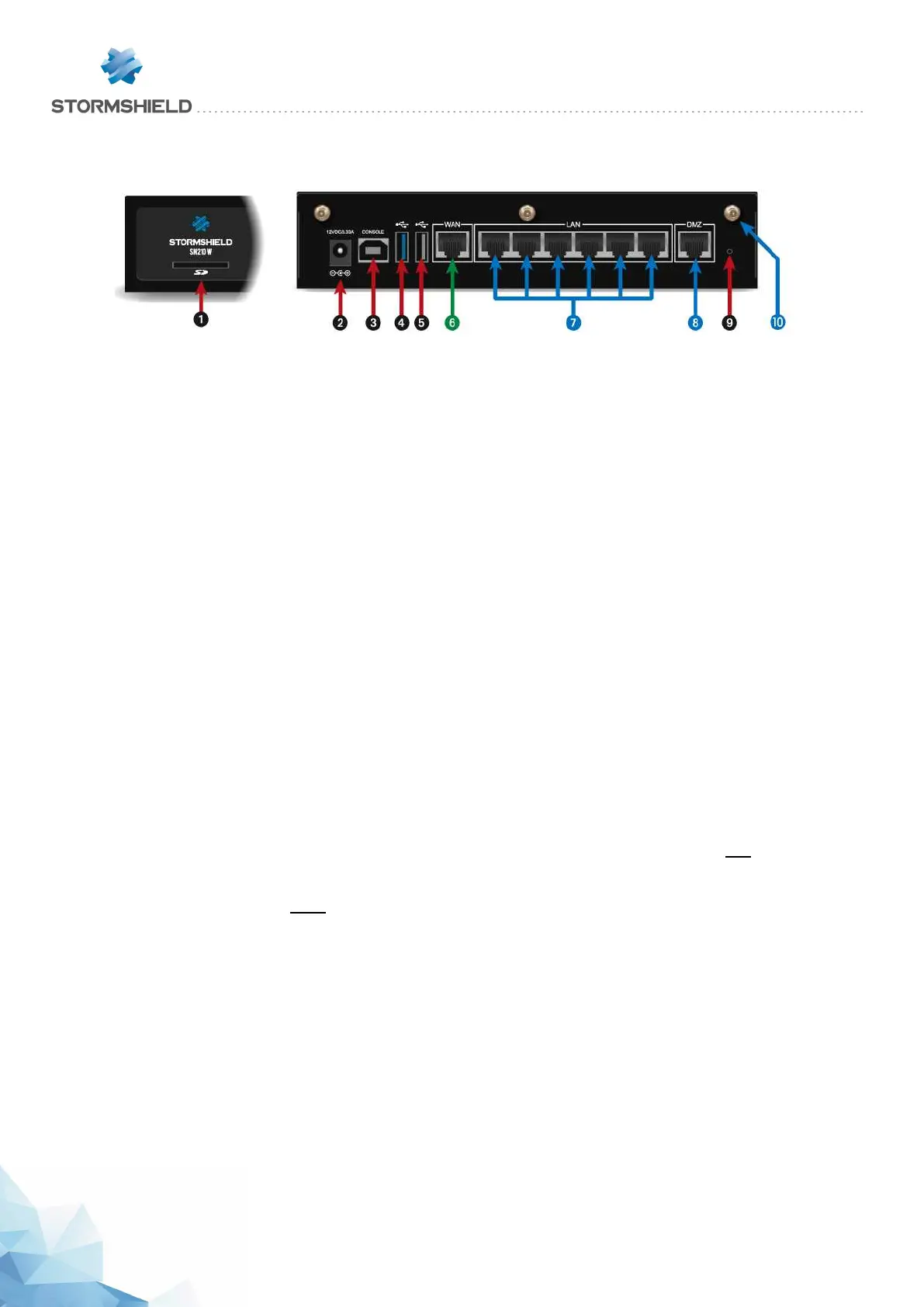

The connectors on SN210 and SN210W models are located on the front and rear panels.
1 This is the slot for the SD card*.
2 Plugging in the mains adapter automatically starts this product.
3 The USB port allows accessing the product in console mode**; it is possible to connect the
Firewall directly from a computer. The default baud rate on these models is 115 200 baud
(8N1).
4 The USB 3.0 port can be used for secure configurations or upgrades. You can also plug a USB
key or an approved USB modem into it.
5 The USB 2.0 port can be used for secure configurations or upgrades. You can also plug a USB
key or an approved USB modem into it.
SN210 and SN210W models hold 8 1GbE ports:
6 The first zone is the EXTERNAL (OUT) interface, in external mode by default. It makes up the
zone that is needed for connecting to the internet.
7 The second zone is identified by default in INTERNAL (IN) mode and is made up of 6 switched
ports.
8 The third zone is by default identified in INTERNAL (IN)mode.
9 This is the button for resetting the appliance to its factory settings (defaultconfig).
J Sockets for Wi-Fi antennae.
* The recommended type of SD card isat least Class10 (C10)UHS Class1 (U1) or App Performance 1
(A1),SDHC standard. The memory card must be in a full-size physical SD format, in SDHC or SDXC standard.
Onlyadaptersprovided withthe card must be used. The maximummemory size supported is2TB.
Stormshield recommendsthe use of high-endurance/industrial cards or preferably, those that have a
built-in MLC flash chip developed by major brands(e.g., SanDisk, Western Digital,Innodisk, Transcend,
etc.)and with at least 32GB of memory.
** This connection in console mode requires the installation of a driver. Depending on your operating
system, you can download a driver from: http://www.ftdichip.com/Drivers/VCP.htm
