SN6100 model

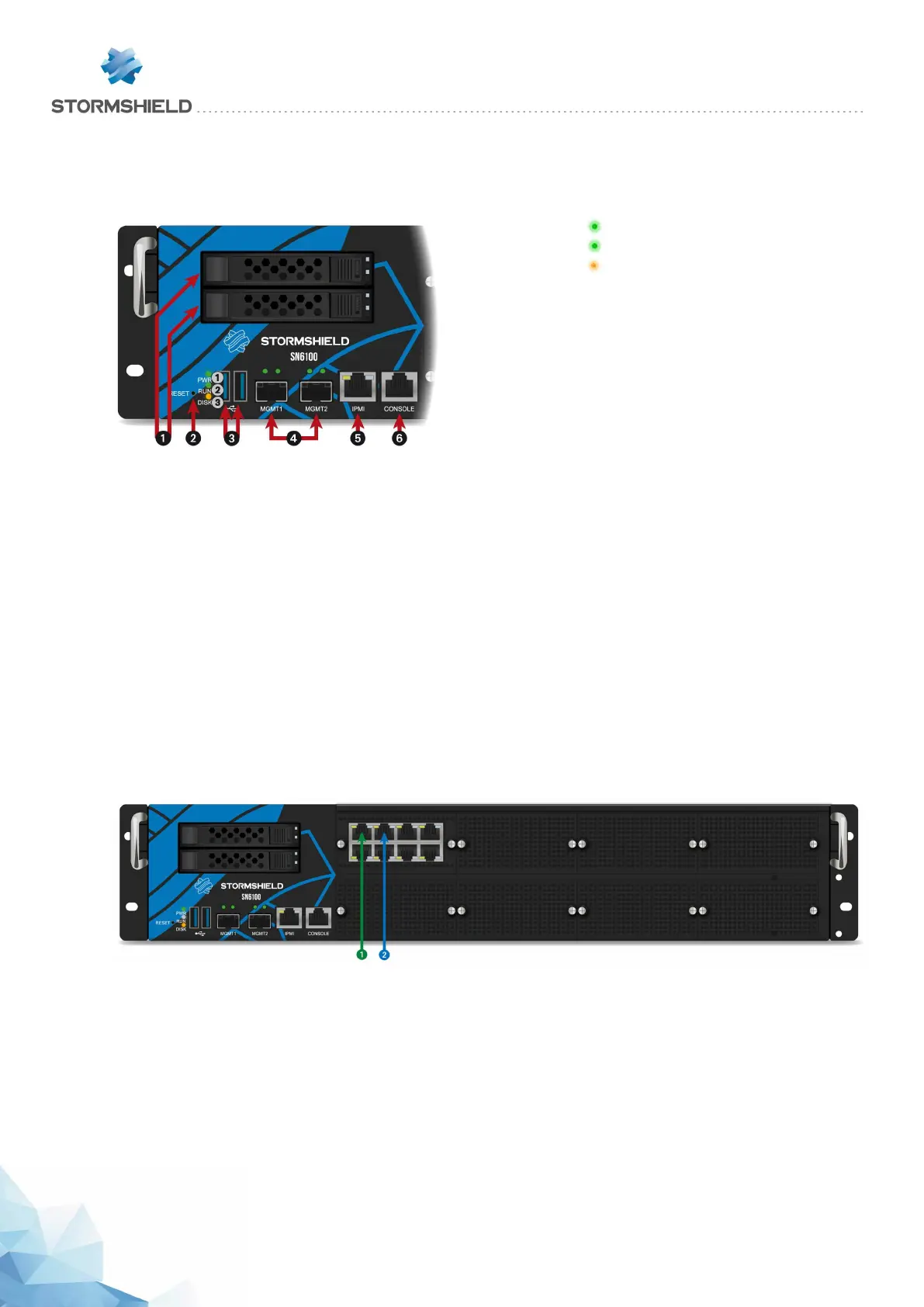

Front panel: connectors and LEDs
1Power LED (green)
2Run LED (green)
3SSD activity LED (yellow)
1 SSD racks for log storage (2 SSD in RAID 1). The LEDs on racks confirm that installation (green
LED at the top) and access (yellow LED at the bottom) have been successful.
2 The Reset button: electrically resets the Firewall.
3 Two USB 3.0 ports that can be used for secure configurations or upgrades. You may also plug
in a USB key, USB keyboard or approved USB modem.
4 MGMT1 and MGMT2: Two SFP+ sockets, allowing the insertion of SFP+ transceivers, provided
as an option. Both of these ports are dedicated to the management of the appliance or the
configuration of high availability.
5 The IPMI network port dedicated to the administration of the appliance via IPMI. Please refer to
the appendix CONFIGURATION AND ADMINISTRATION VIA IPMI (SN6100).
6 The serial port allows accessing the product in console mode; it is possible to connect the
Firewall directly from a computer. The default baud rate on this model is 115 200 baud (8N1).
Description
This model is fitted with two multi-core CPUs, making it possible to
increase processing power. This product has redundant internal power
supplies. Two removable SSDs are installed in a RAID configuration.
1 OUT Interface
2 INInterface
The SN6100 model holds 8 1GbE ports by default and 2 SFP+ sockets for adding
1Gbps/10Gbps transceivers. It allows the addition of 8 extension modules with RJ45 (Gigabit or
10 Gigabit) or fiber (1GbE, 10GbE or 40 GbE) connectors.
Specifications of Stormshield Network-approved extension modules and transceivers are set out
in sections Extension modules (SN710 and upwards) and Fiber Ethernet connectors.
SNS - PRODUCT PRESENTATION AND INSTALLATION 2019
PRESENTATION OF SN MODELS
Page 32/66 sns-en-SNrange_installation_guide-2019 - 09/2019
