40 GIGA
QSFP+
QSFP+ transceiver, 40GBASE-LM4 (light blue extraction lever)
Ethernet 40GBASE-LM4, requires a multi-mode fiber (the connector is
usually orange) or a single-mode fiber (the connector is usually yellow).
Wavelength: 1310nm
Typical maximum distance supported: 160m with a multi-mode fiber,
1km with a single-mode fiber
not
supported
not
supported
supported
SFP+ transceivers, 40GBASE--LR4 (blue extraction lever)
Ethernet 40GBASE-LR4, requires a single-mode fiber (the connector is
usually yellow).
Wavelength: 1310nm
Typical maximum distance supported: 10km with a single-mode fiber
not
supported
not
supported
supported
COPPER CONNECTOR
GIGA
SFP
RJ45 over SFP transceiver, 1000/100/10Base-T
Requires a Category 5e RJ45 Ethernet cable.
Typical maximum distance supported: 100m
supported supported supported
*On condition of optimum quality

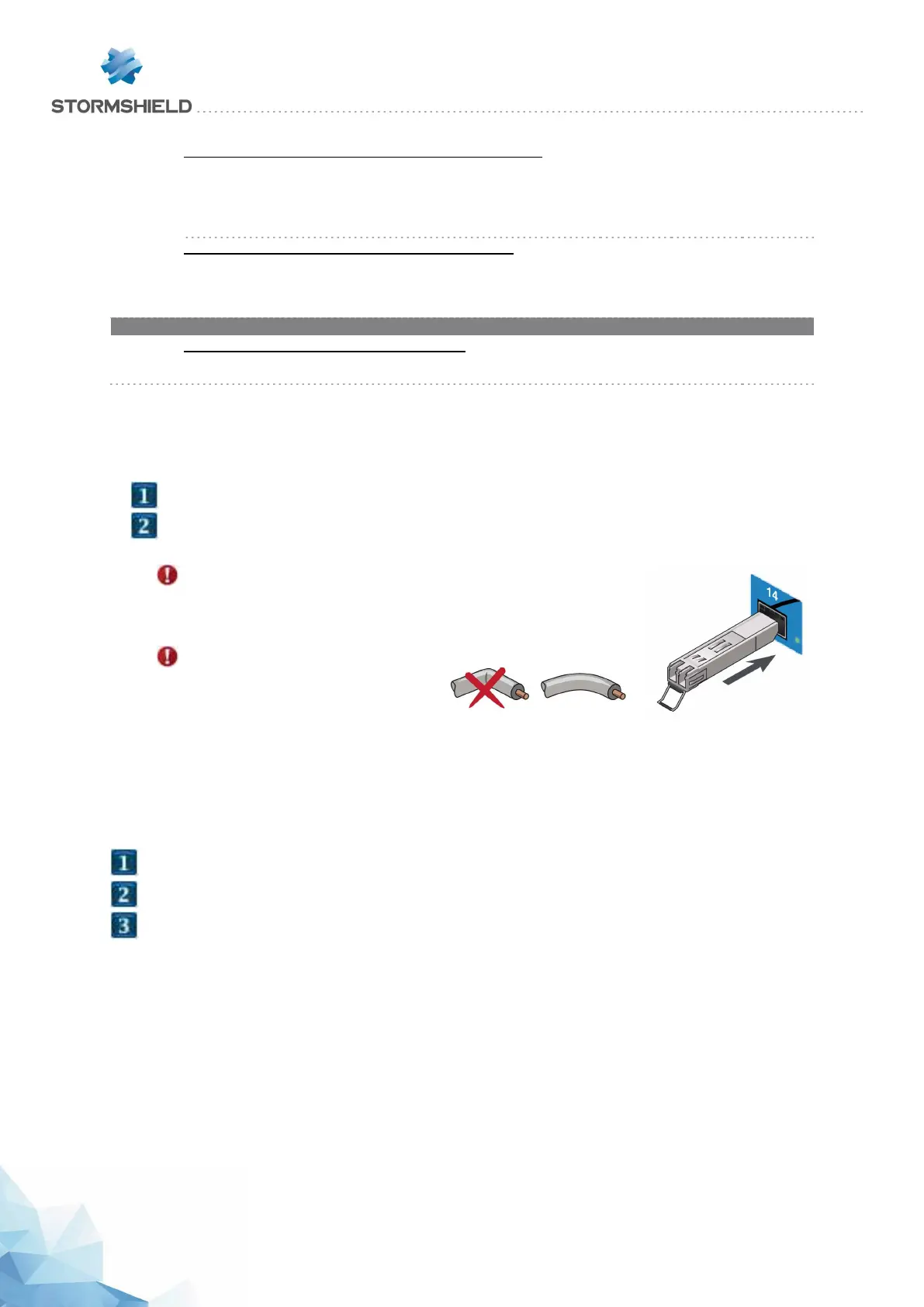

Installation
Proceed as follows to install your transceiver:
If the socket in which you would like to install the transceiver has a protective cover, remove it.
Insert the transceiver, then plug in the cable corresponding to this transceiver.
IMPORTANT
The fiber transceiver and the optic fiber are equipped with a connector plug.
When you plug this optic fiber into the transceiver, remove the connector
plugs and keep them away from dust for later use.
IMPORTANT
Do not exceed the bending radius
indicated in your optic fiber
specifications.
Extension modules (SN710 and upwards)
The procedure for removing or inserting an extension module on SN710, SN910, SN2100,
SN3100 or SN6100 Firewalls takes place in three main steps:
Step 1 Shut down firewall.
Step 2 Remove or insert the module.
Step 3 Shut down firewall.
SFP/SFP+/QSFP+ transceivers for fiber extension modules have to be ordered separately.
SFP/SFP+/QSFP+ transceivers are hot-swappable (they can be inserted and removed while the
appliance is powered on).
SNS - PRODUCT PRESENTATION AND INSTALLATION 2019
NETWORK CONNECTORS
Page 40/66 sns-en-SNrange_installation_guide-2019 - 09/2019
