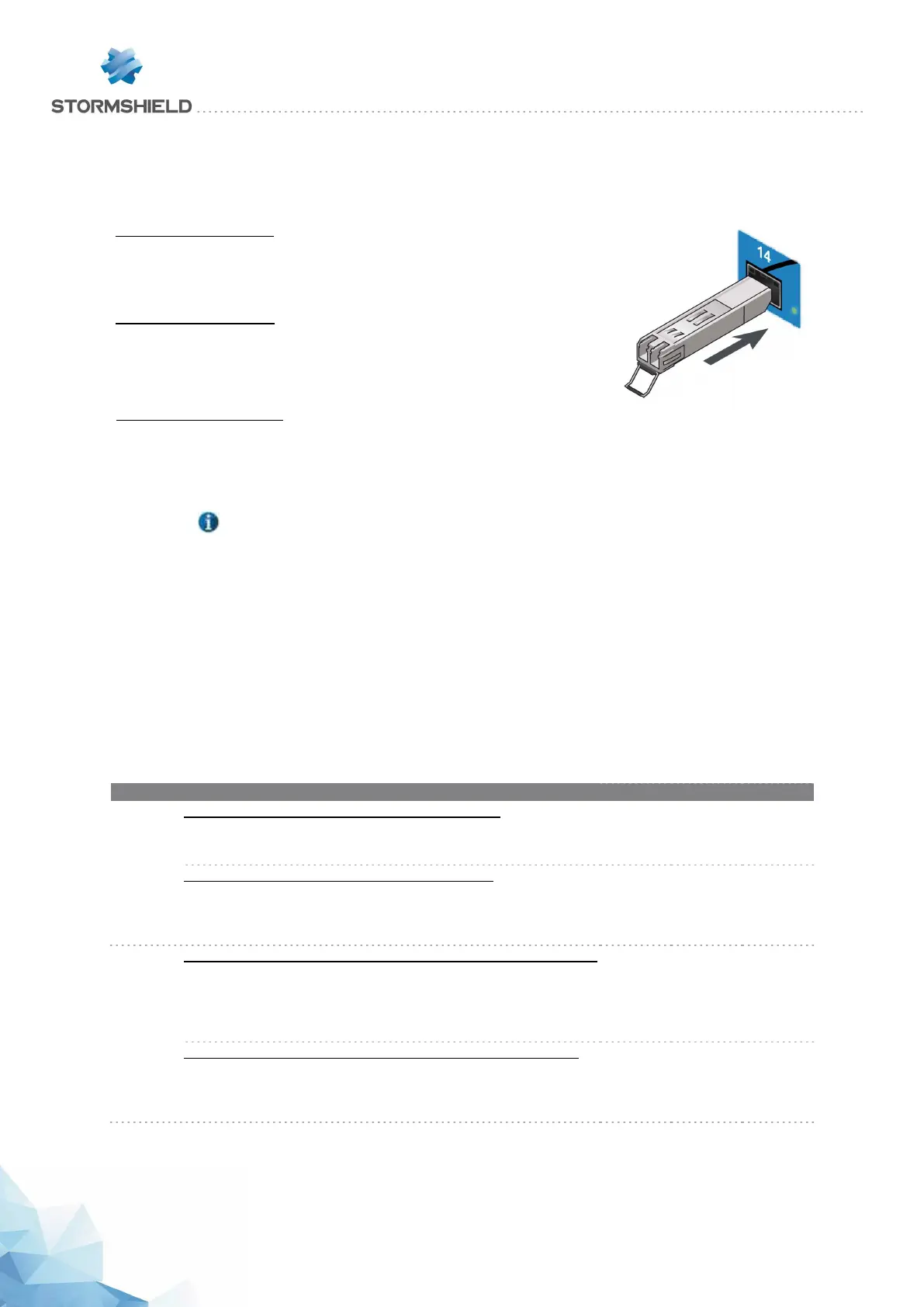

Optional Ethernet transceivers
Ethernet fiber transceivers (SN710 and upwards, and SNi40)
For 1 Gbps transmissions, two types of transceivers are available according
to the length of the cable and the type of fiber used:
- SFP SX: short distance
- SFP LX: long distance.
For 10 Gbps transmission, two types of transceivers are available according
to the length of the cable and the type of fiber used:
- SFP+ SR: short distance
- SFP+ LR: long distance.
For 40 Gbps transmissions, two types of transceivers are available according
to the length of the cable and the type of fiber used:
- QSFP+ LM4: short distance
- QSFP+ LR4: long distance
NOTE
Only LC fiber optic connectors are supported.
Ethernet copper transceivers (SN710 and upwards, and SNi40)
For 1 Gbps transmissions, such RJ45 over SFP transceivers (1000/100/10Base-T) require
copper Ethernet RJ45 cables. These must be Category 5e cables, for running in 10 Mbps, 100
Mbpsor 1 Gbps. Check the compatibility of your devices.
Stormshield Network-approved Ethernet transceivers
SNi40 SN710 and
SN910
SN2100,
SN3100
and SN6100
FIBER CONNECTOR
GIGA
SFP
SFP transceiver, 1000Base-SX (black extraction lever)
Requires a multi-mode fiber (the connector is usually orange).
Wavelength: 850nm
Typical maximum distance supported: 550m
supported supported supported
SFP transceiver, 1000Base-LX (blue extraction lever)
Ethernet 1000Base-LX, requires a single-mode fiber (the connector is
usually yellow).
Wavelength: 1310nm.
Typical maximum distance supported: 10km
supported supported supported
10 GIGA
SFP+
SFP+ Transceiver, 10GBASE-SR/1000Base-SX, (beige extraction lever):
Ethernet 10GBASE-SR/1000Base-SX, requires a single-mode fiber (the
connector is usually yellow).
Wavelength: 850nm
Typical maximum distance supported: 300m on 10Gbps, 550m on
1Gbps.
not
supported
supported supported
SFP+ transceiver, 10GBASE-LR/1000Base-LX (blue extraction lever)
Ethernet 10GBASE-LR/1000Base-LX, requires a single-mode fiber (the
connector is usually yellow).
Wavelength: 1310nm
Typical maximum distance supported: 10 km
not
supported
supported supported
