Description of extension modules for SN710 models and upwards
SN710, SN910, SN2100, SN3100 and SN6100 models accept the following extension modules:
l 8-port 1 GbE copper module
o
RJ45 connectors
o
1000/100/10Base-T
l 4-port 10 GbE copper module (SN2100, SN3100 and SN6100)
o
RJ45 connectors
o
10G/1000/100Base-T
l 4-port 1GbE fiber module (not available on SN2100, SN3100 and SN6100 models)
4 SFP sockets, supporting the following transceivers:
o
SFP fiber transceiver, 1000Base-SX (1Gbps Ethernet, short distance).
o
SFP fiber transceiver, 1000Base-LX (1Gbps Ethernet, long distance).
o
RJ45 over SFP copper transceiver, 1000/100/10Base-T
l 8-port 1 GbE fiber module
8 SFP sockets, supporting the following transceivers:
o
SFP fiber transceiver, 1000Base-SX (1Gbps Ethernet, short distance).
o
SFP fiber transceiver, 1000Base-LX (1Gbps Ethernet, long distance).
o
RJ45 over SFP copper transceiver, 1000/100/10Base-T
l 2-port 10GbE fiber module (not available on SN2100, SN3100 and SN6100 models)
2 SFP+ sockets, supporting the following transceivers:
o
SFP+ fiber transceiver, 10GBase-SR (10Gbps Ethernet, short distance) / 1000BASE-SX
(1Gbps Ethernet, short distance).
o
SFP+ fiber transceiver, 10GBase-LR (10Gbps Ethernet, long distance) / 1000BASE-LX
(1Gbps Ethernet, long distance).
l 4-port 10 GbE fiber module
4 SFP sockets, supporting the following transceivers:
o
SFP+ fiber transceiver, 10GBase-SR (10Gbps Ethernet, short distance) / 1000BASE-SX
(1Gbps Ethernet, short distance).
o
SFP+ fiber transceiver, 10GBase-LR (10Gbps Ethernet, long distance) / 1000BASE-LX
(1Gbps Ethernet, long distance).
l 2-port 40 GbE fiber module (only on SN2100, SN3100 and SN6100 appliances)
2 QSFP+ sockets, supporting the following transceivers:
o
QSFP+ fiber transceiver, 40GBASE-LM4 (40Gbps Ethernet, short distance).
o
QSFP+ fiber transceiver, 40GBASE-LR4 (40Gbps Ethernet, long distance).

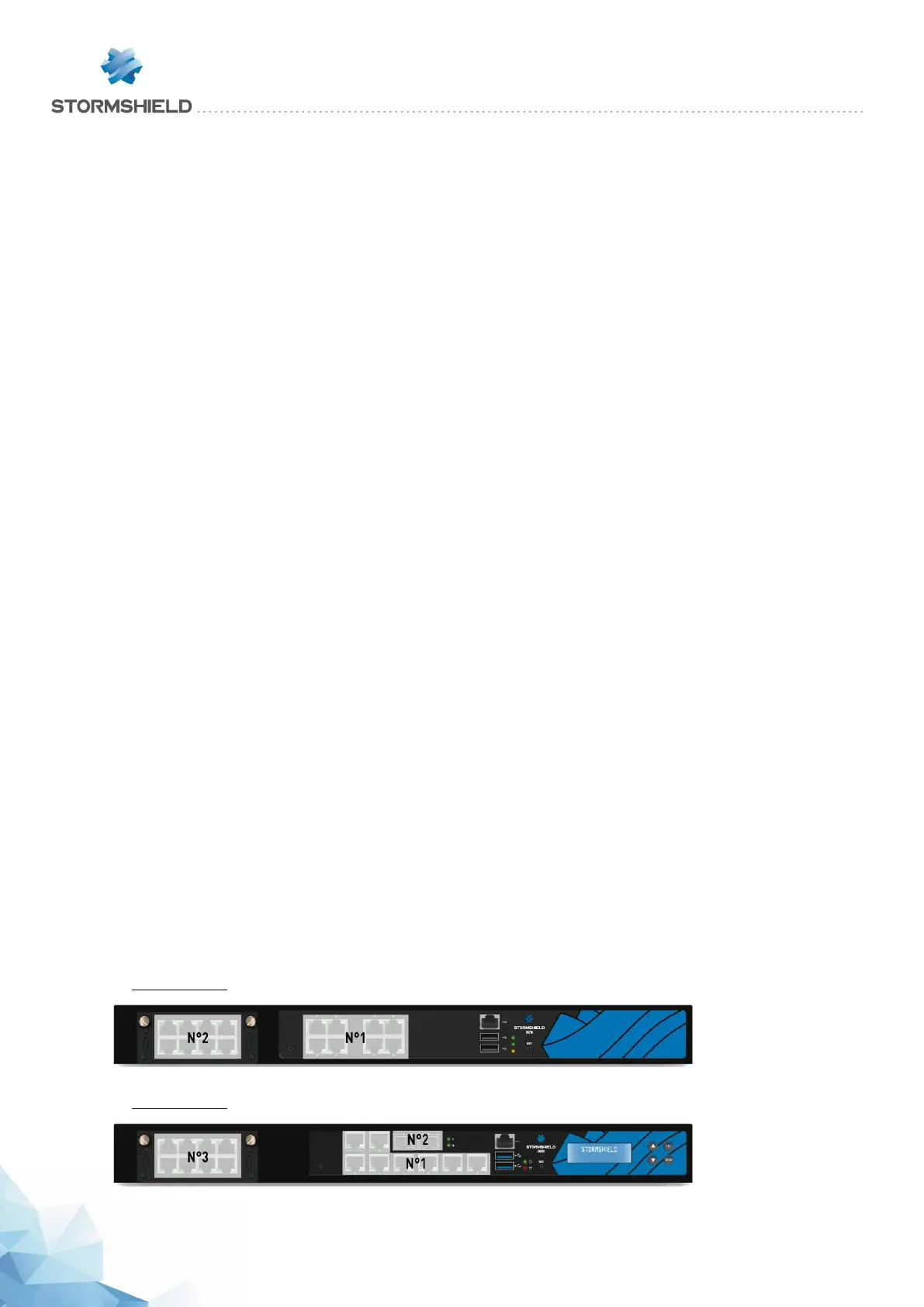

Sequencing of modules
When extension modules are added or removed, ports will be reordered according to the order
shown below.
SN710 Model:
SN910 Model:
