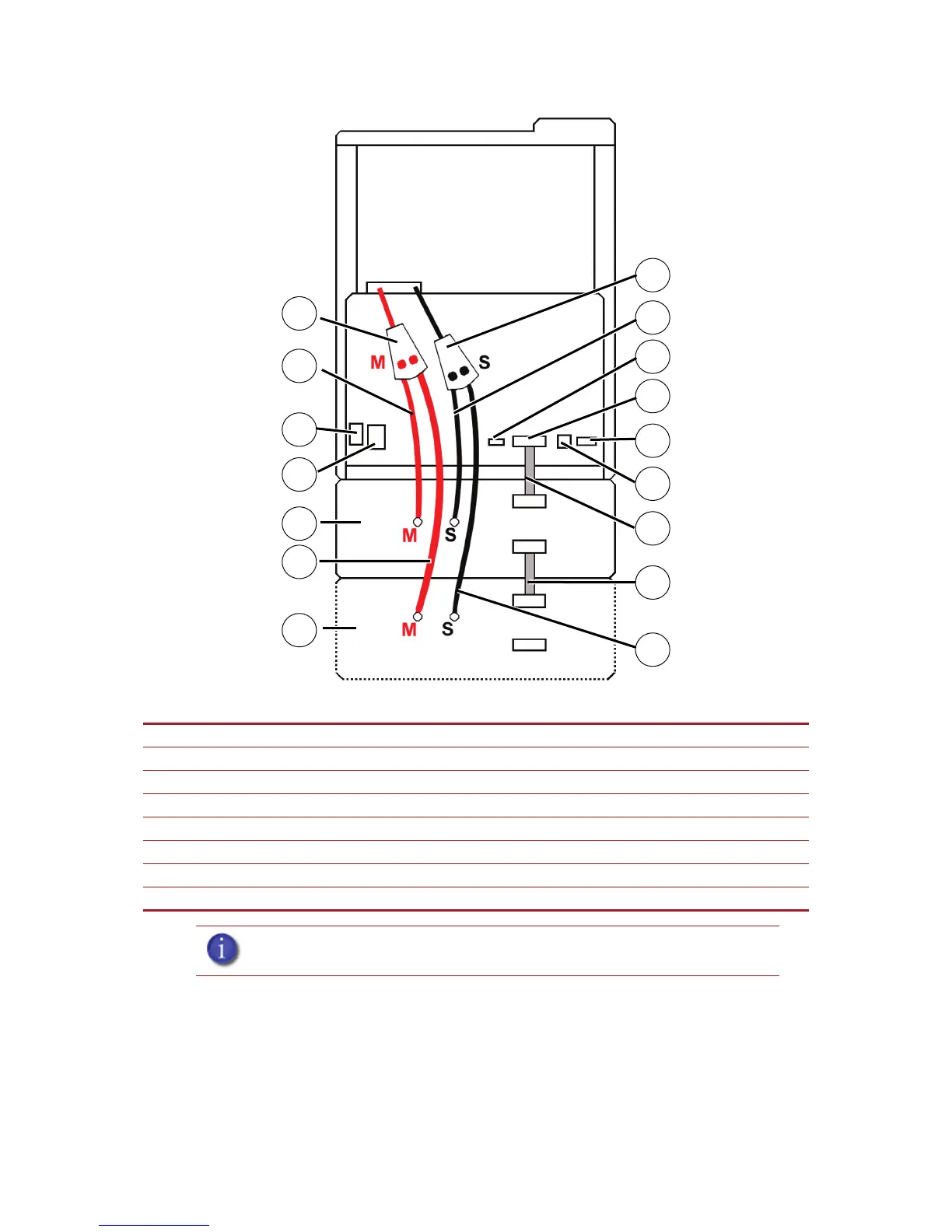

Figure 3 Rear view of printer
1 Model Material Y Connector 9 Support Material Tube
2Model Material Tube 10 UPS Connection
3 AC Power Cord Connector 11 Material Bay Cable Connector
4 Circuit Breaker 12 RJ-45 Network Connector
5 Material Bay 13 Diagnostics Cable Connector
6 Optional Model Material Tube 14 Material Bay Communications Cable
7 Optional Material Bay 15 Optional Material Bay Communications Cable
8 Support Material Y Connector 16 Optional Support Material Tube
Note: To avoid damage to the printer from an uncontrolled power loss,
installation of a UPS (Uninterruptible Power Supply) is recommended.
