AAttttaacchhiinngg tthhee bbaacckkrreesstt ssttoorraaggee ppoouucchh ooppttiioonn
CCAAUUTTIIOONN
• Do not load the single-sided backrest storage pouch above the safe working load of 10 lb (4.5 kg).
• Do not load the dual-sided backrest storage pouch above the safe working load of 20 lb (9 kg).
• Do not allow the storage pouch to interfere with the operation of the retractable head section.
To attach the single-sided or dual-sided backrest storage pouch:
1. Insert each strap through a opening in the backrest skin.
2. Mount the pouch flat against the backrest.
3. Secure the backrest storage pouch to the cot with the VVeellccrroo® straps.
NNoottee -- Only secure the VVeellccrroo® straps that correspond to the selected attachment side of the cot. Secure the VVeellccrroo®
straps that are not in use to themselves.
AAttttaacchhiinngg tthhee hheeaadd eenndd ssttoorraaggee ffllaatt ooppttiioonn
WWAARRNNIINNGG -- Do not allow the head end storage flat to interfere with the operation of the retractable head section, safety
bar, or vehicle safety hook.
CCAAUUTTIIOONN -- Do not load the head end storage flat above the safe working load of 40 lb (18 kg).
To attach the head end storage flat (Figure 36):
1. Attach the VVeellccrroo® straps (A) near the pneumatic cylinder and around the cross tube (C) of the retractable head
section.
2. Buckle the restraint straps (B) around the outer rails of the retractable head section.

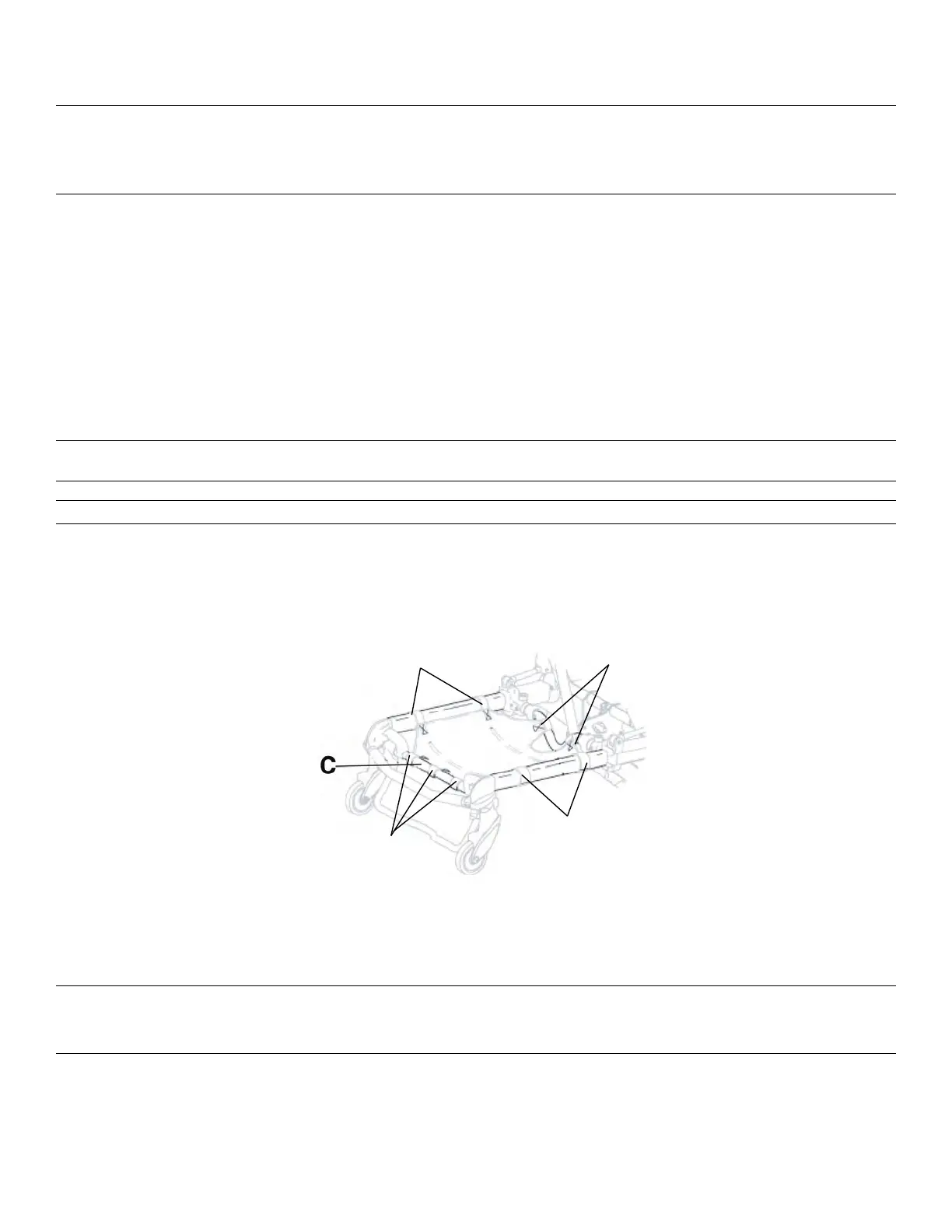

FFiigguurree 3366 –– HHeeaadd eenndd ssttoorraaggee ffllaatt
AAttttaacchhiinngg tthhee mmaattttrreessss
WWAARRNNIINNGG
• Always secure the mattress to the product to avoid movement during patient transfer.
• Do not store items under the mattress. Items under the mattress may interfere with product operation.
The following mattress options are compatible with this product:
• Standard Gatch bolster mattress (6506-002-150) - use with the standard siderail
6507-009-001 Rev AB.3 47 EN
