Summa S class 2 series - Extended Load

S CLASS™ 2 cutter User’s Manual
Setup 1-26
 Extended load.
The function extended load makes it possible to define the limits of the Y axis so that the
cutter can cut outside the pinch rollers. The media needs to be loaded before this function
can be used.

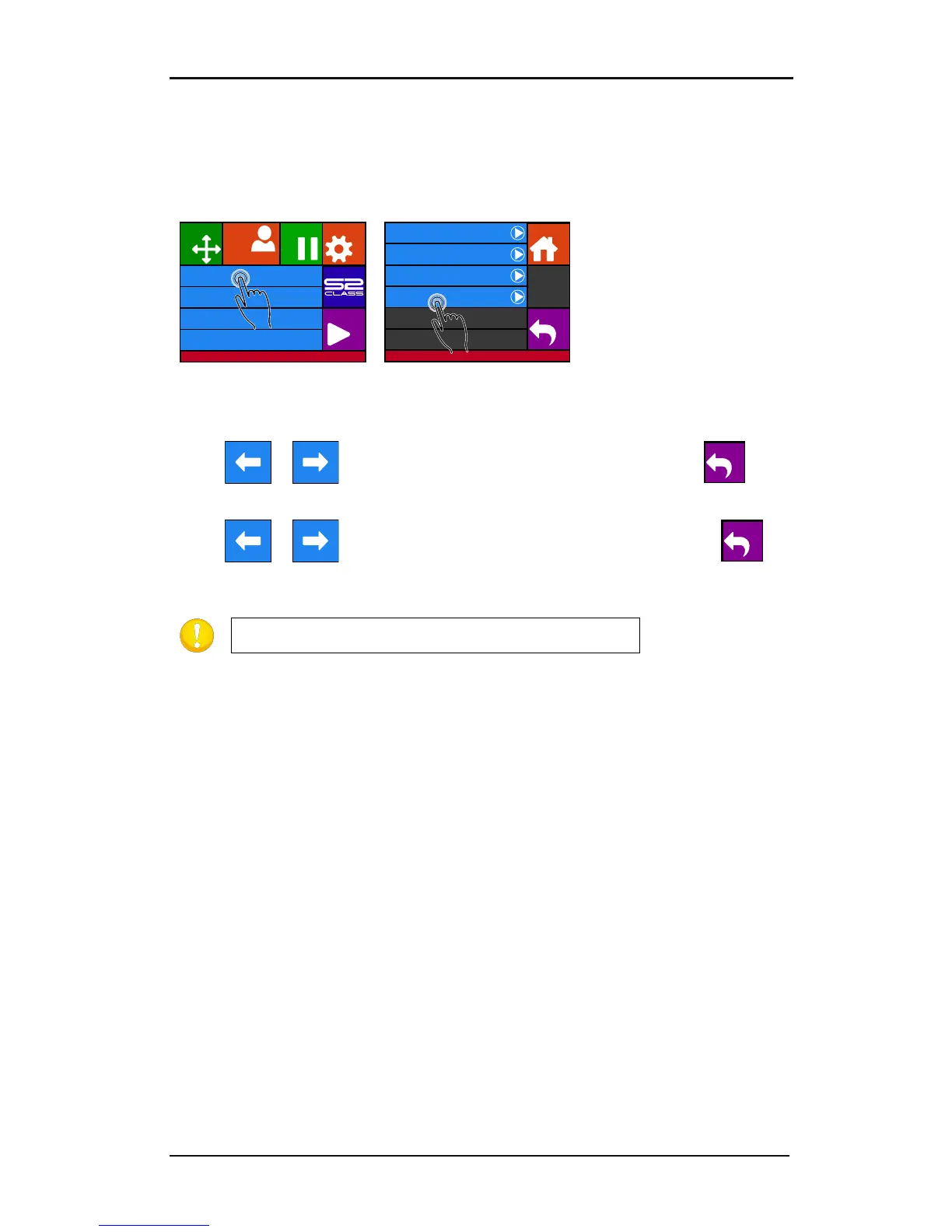

1. Press on Media size
2. Press on Extended
Two arrows will appear, together with an “apply” button.
3. Use or to reposition the right Y-axis limit (origin). Then press .
Two arrows will stay on the screen. The tool carriage will move to the left Y-axis limit.
4. Use or to reposition the left Y-axis limit (define size). Then press .
The cutting area in the Y-axis has now been redefined.
NOTE: Tracking is not guaranteed when using this mode.
