Summa S class 2 series - Knife Pressure Test Pattern

S CLASS™ 2 cutter User’s Manual
Setup 1-33

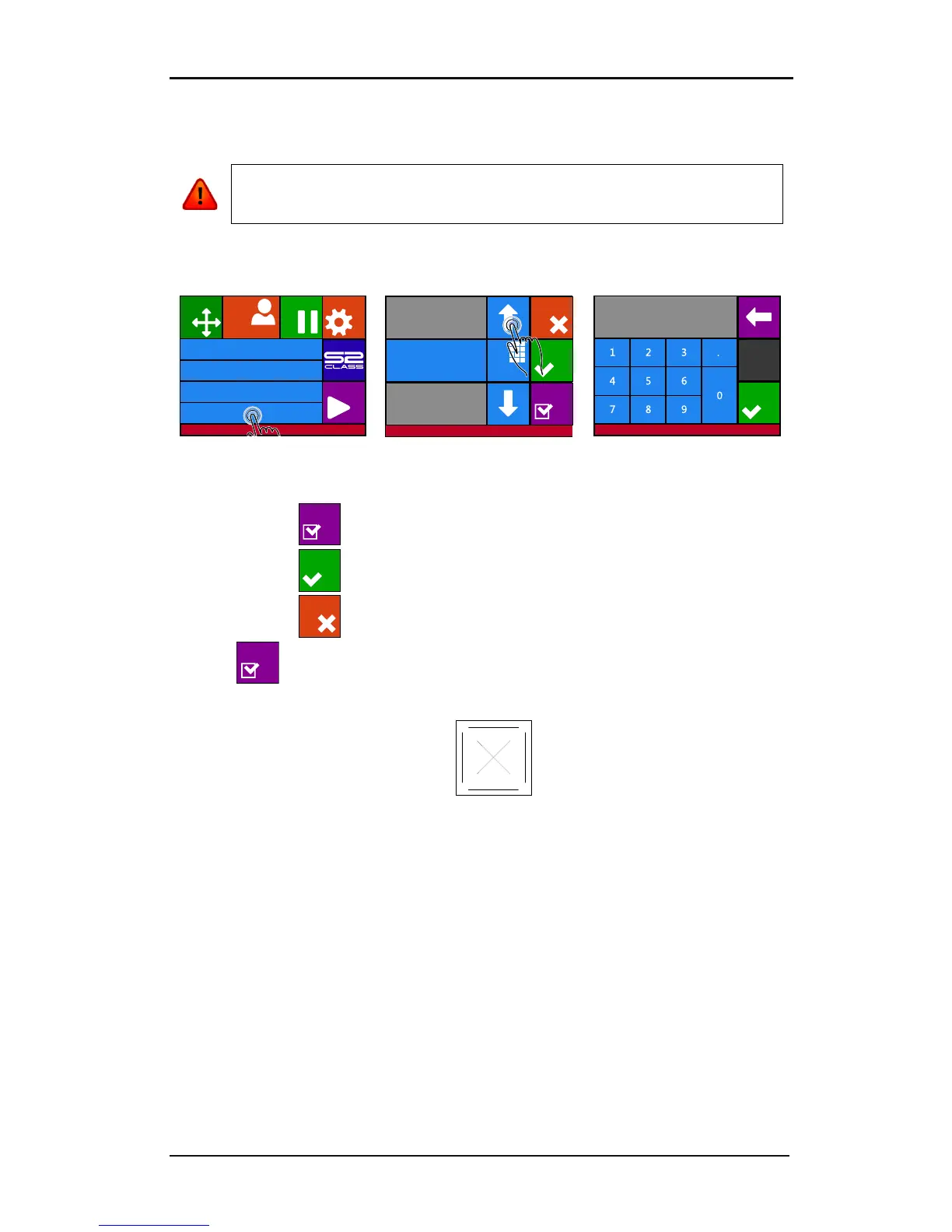

 Setting the pressure and checking the knife depth:
(the media must be loaded in the cutter before the knife pressure can be tested).
WARNING: Each keystroke can initiate an internal test or movement of the
head or media. Keep fingers and other body parts away from the cutting area.
There are hazardous moving parts.
1. Power on the cutter and load the media.
2. Press on pressure
3. Press the arrow up or
down to change the value.
4. Or fill in the new value
after pressing Numpad.
1. Press to perform the internal knife pressure test.
2. Press to confirm the chosen knife pressure and exit the menu.
3. Press to leave the pressure unchanged.
Once is pressed, the current knife pressure value will be set automatically to the
new value and the cutter will cut the knife pressure test pattern.
FIG 1-33
1-33 KNIFE PRESSURE TEST PATTERN
Peel out the rectangle and inspect the backing.
The knife depth is set correctly when the test pattern cuts completely through the vinyl.
The vinyl is removed and the blade tip visibly scratched the front side of the media backing.
The blade should never cut through the backing but only slightly scratch the silicon coating
and first few fibers of the backing material.
Knife pressure 95 gr
Velocity 800 mm/s
Tool Tangential knife
Media size 50000 x 718 mm
Actions
Settings
Configuration 1
Pause
Origin
Summa USB port 1
Cancel
Apply
Test
Numpa d
Old value: 85gr
New value: 95gr
Range: 0 ... 600gr
Summa USB port 1
Apply
9▌
Summa USB port 1
Test
Apply
Cancel
Test
