S CLASS™ 2 cutter User’s Manual
Basic Operation 2-9

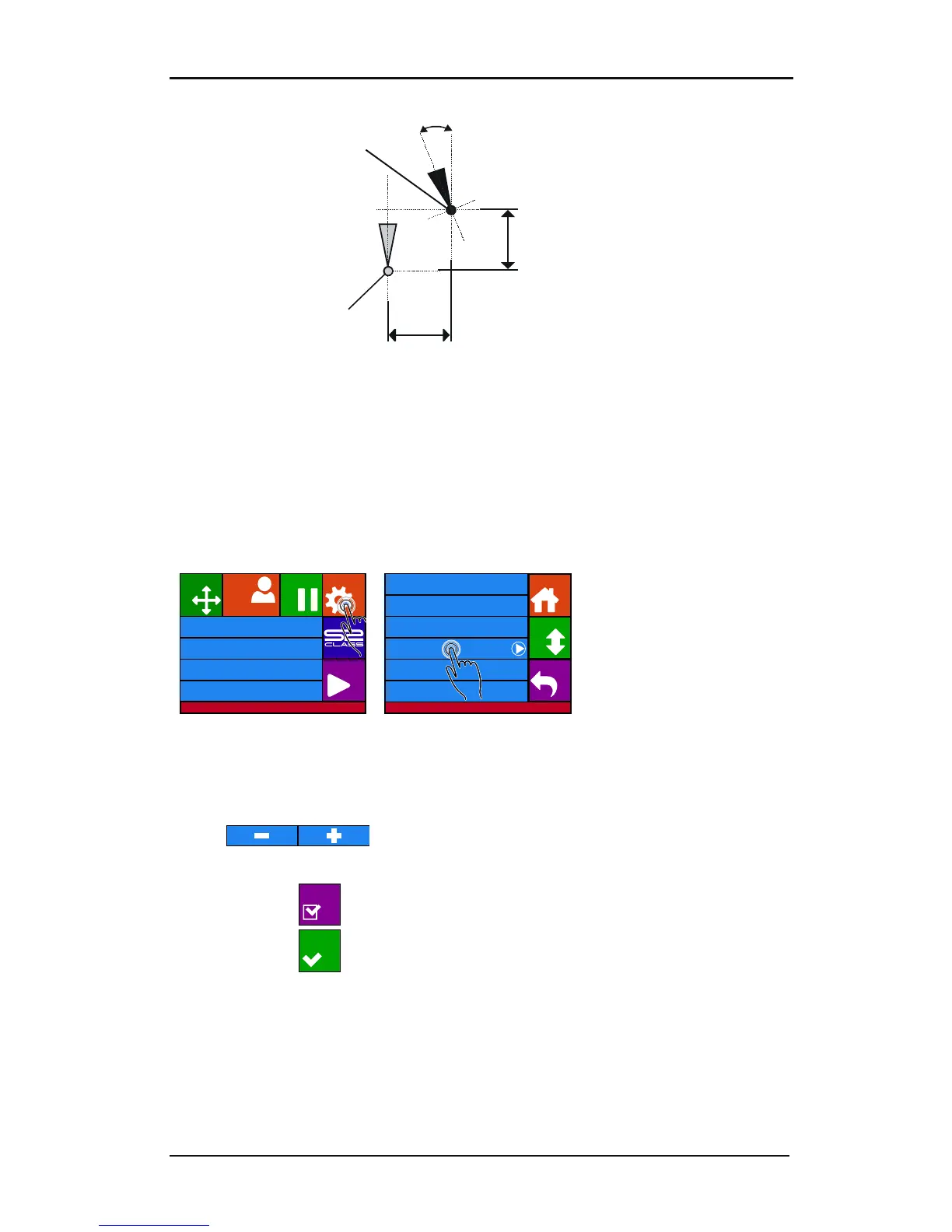

LONGITUDINAL deviation
LATERAL deviation
Theoretical center
of the knife
ORIGIN deviation
Real center
of the knife
FIG 2-5
2-5 POSSIBLE KNIFE CALIBRATIONS
During the knife calibration routine, the cutter will cut a series of test patterns which allow
the user to identify errors in the knife rotation and concentricity. Use the touch screen to
make corrections.
Setting tangential knife parameters:
1. Power on the cutter, load the media and mount the drag knife (see section 1.7.2.1.)
2. Press on Settings
3. Press on Calibrate knife.
4. Click on the parameter that needs to be changed.
The selected parameter will be highlighted in cyan on the touch screen.
5. Use to change the value of the parameter.
The value (inverse) will change.
1. Press to perform the internal knife calibration test.
2. Press to confirm and exit the knife calibration menu.
Knife pressure 95 gr
Velocity 800 mm/s
Tool Tangential knife
Media size 50000 x 718 mm
Actions
Settings
Configuration 1
Pause
Origin
Summa USB port 1Summa USB port 1
Knife pressure 95 gr
Velocity 800 mm/s
Tool Tangential knife
Settings
Back
More
Home
...General
Calibrate knife
Advanced cutting ...
FlexCut ...
Test
Apply
