S CLASS™ 2 cutter User’s Manual
Basic Operation 2-12
2.3 How to set the cutting speed
The actual speed at which the tool moves is determined by 4 different parameters. Speed
(and acceleration) while the tool is down; speed (and acceleration) while tool is up.
These 4 parameters have been bundled in one parameter to change the speed fast and
easily.
This overall parameter is called “velocity” and is the speed the cutter uses when the tool is
down. If velocity is raised or lowered, then the other parameters are also raised or lowered
accordingly.
There is one fixed speed: the speed at which the cutter pulls the media from the roll. This
speed is fixed at 200mm/s (8ips).

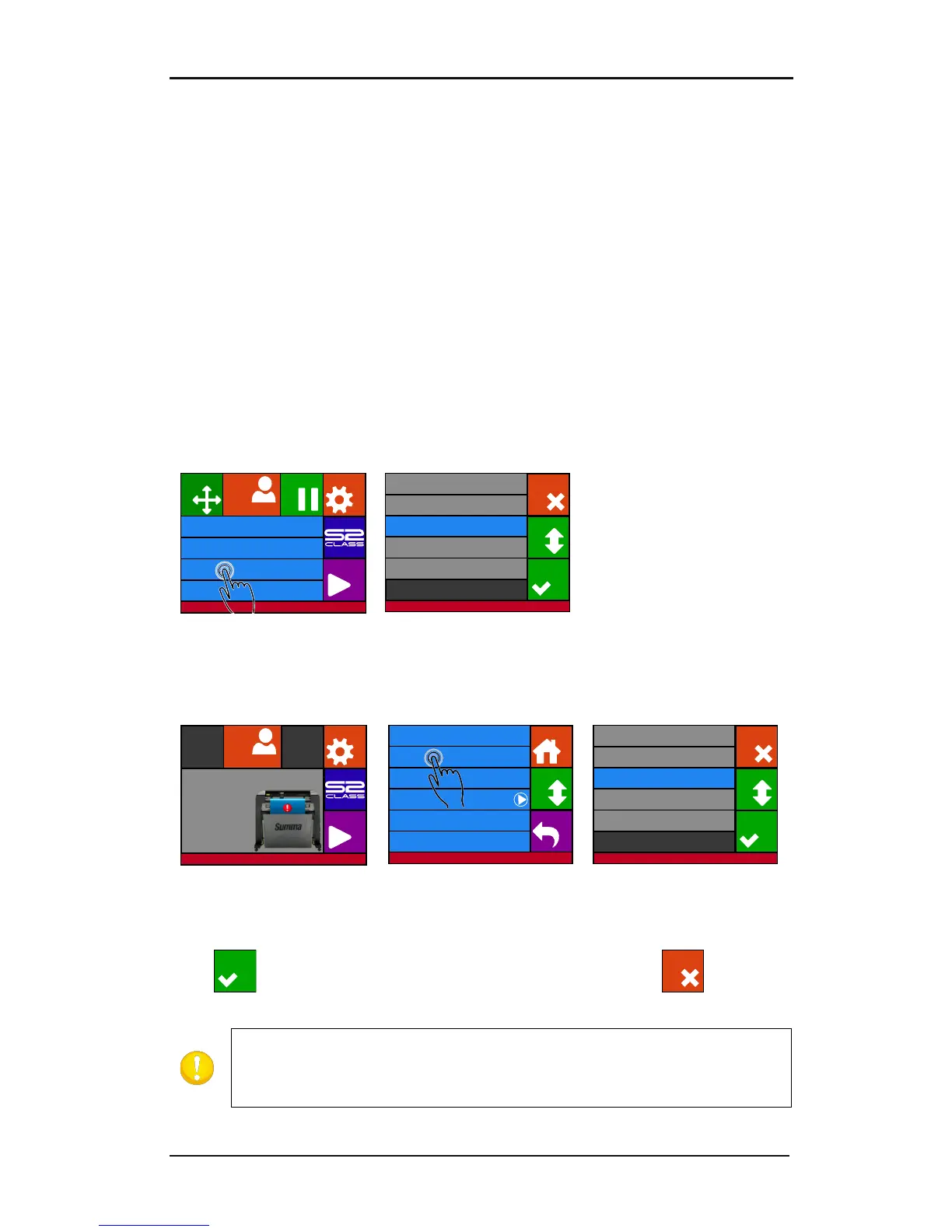

Setting the cutting speed:
1. Power on the cutter.
 In case the media is loaded:
2. Press Velocity
3. Select new velocity,
scroll with More, if
necessary.
 Case media not loaded:
2. Press Settings
3. Press Velocity
4. Select the new velocity,
scroll with More, if
necessary.
Press to confirm the chosen knife offset and exit the menu, press to leave the
knife offset unchanged.
NOTE: Sometimes the cutter feeds the material too fast and the media has no
time to settle and fold into the basket. A fifth speed parameter is designed for
such cases. The speed of long X-axis vectors is reduced automatically so that the
media does not bulge (see section 0).
